RFTCTemp2000A

Wireless CommunicationMadgeTech Cloud ReadyLCD DisplayLED IndicatorBattery Life IndicatorReal Time Monitoring

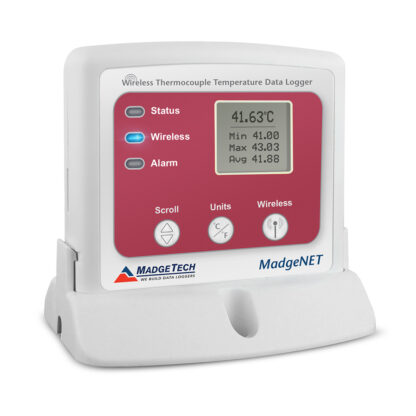

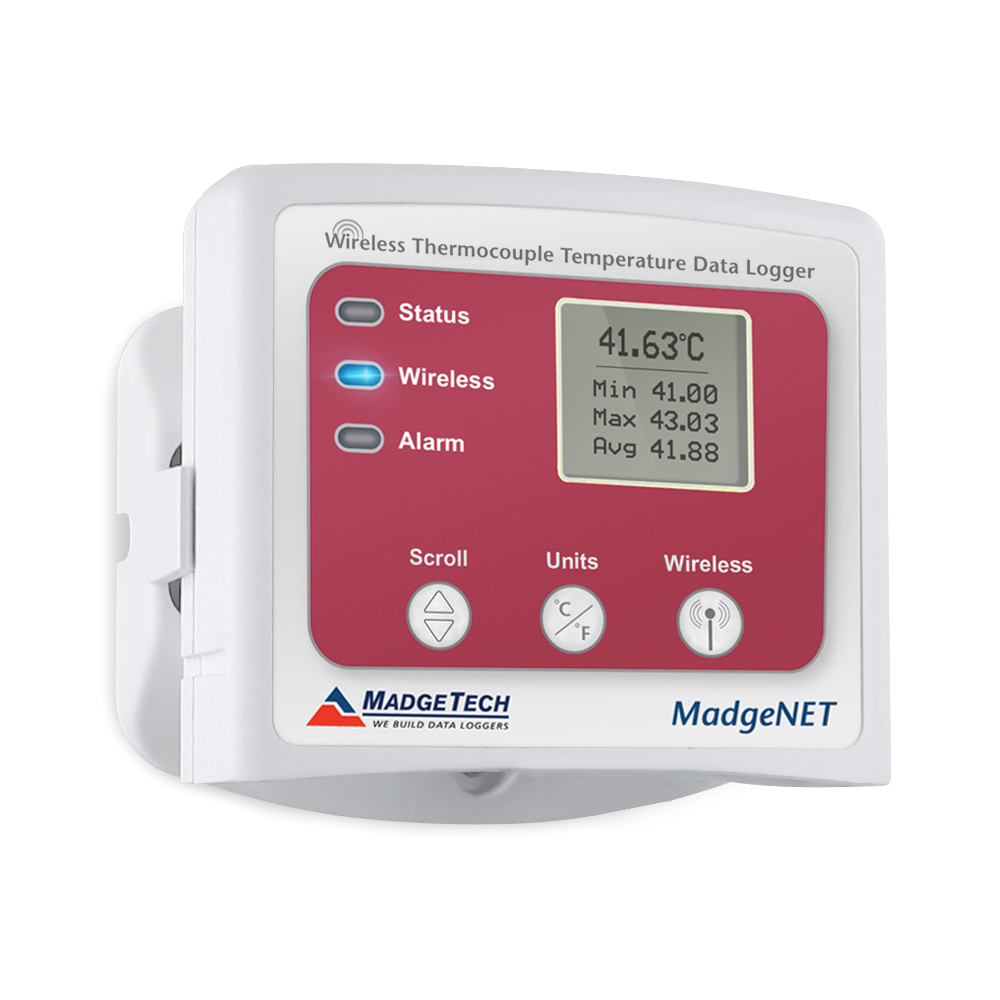

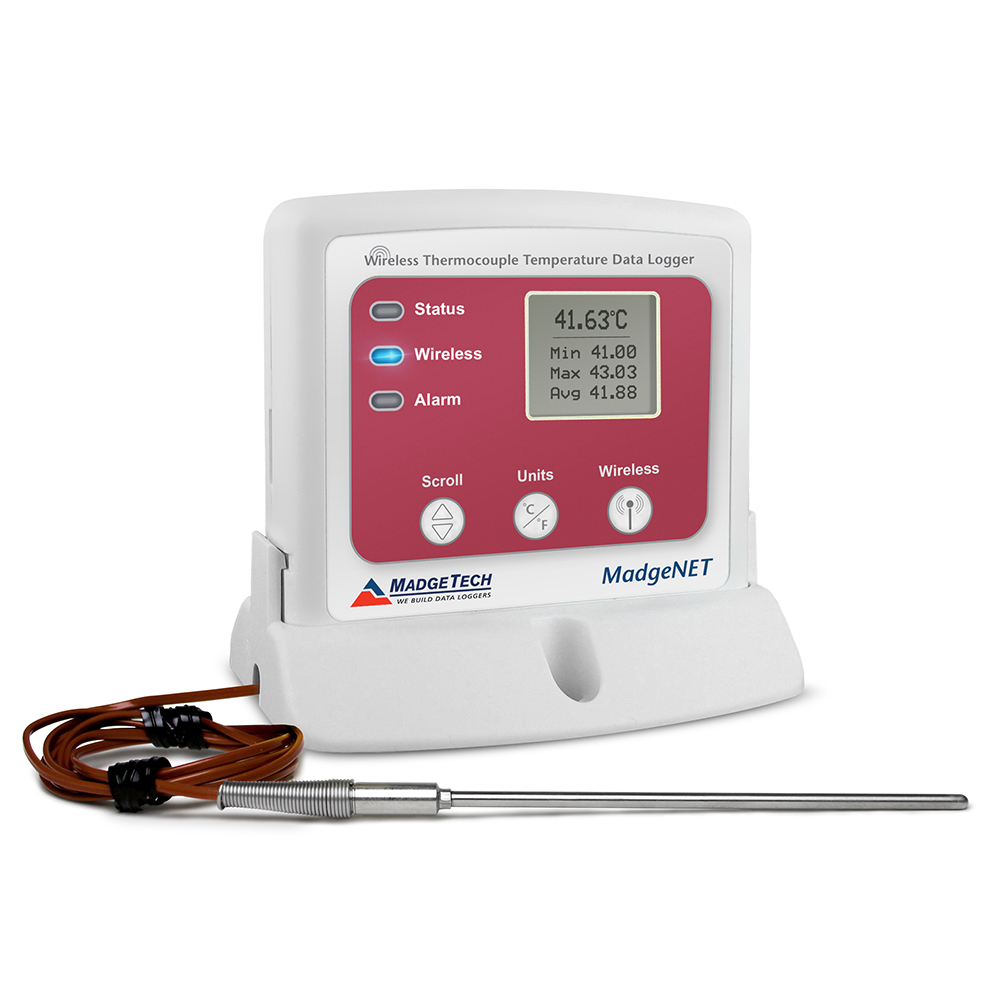

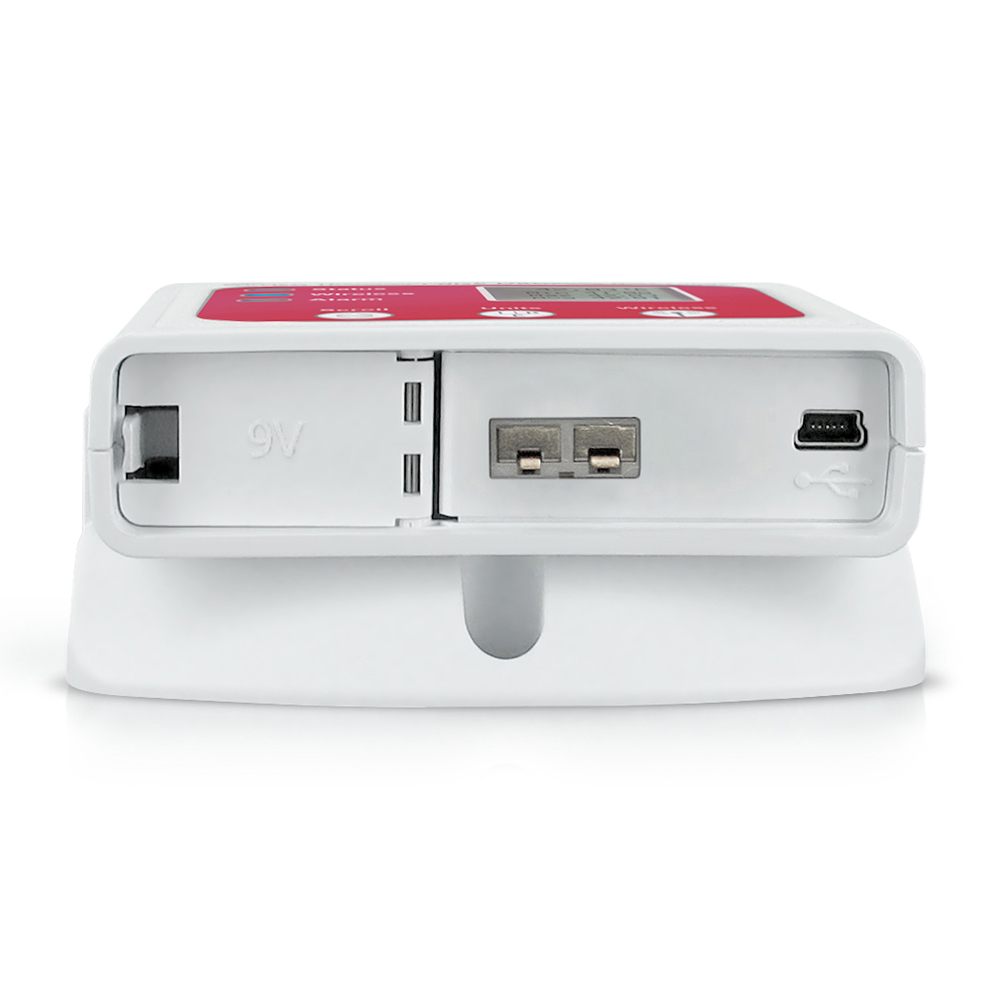

The RFTCTemp2000A is a wireless thermocouple-based temperature data logger. Includes standard calibration certificate.

Availability: 5-7 Business Days

$329.00

Extended Warranty

Description

The RFTCTemp2000A is wireless thermocouple-based temperature data logger (probe sold separately). Ideal for monitoring ambient and remote temperature, the RFTCTemp2000A accepts a variety of thermocouples and is designed with a built-in temperature sensor for cold junction compensation.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFTCTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFTCTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFTCTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.
Please see data sheet for a list of countries approved for use, purchase and distribution.

General

Memory16,128 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED IndicatorsGreen, Blue & Red
Battery Life3 years typical at a 1 minute reading rate
MaterialABS plastic
Dimensions3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP RatingIP22
Operating Environment-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageRFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature SensorInternal Semiconductor
Internal Channel Temperature Range-20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution0.1 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy±0.5 °C
Remote Channel Temperature SensorThermocouple types: J, K, T, E, R, S, B, N
Remote Channel Temperature RangeThermocouple dependent
Remote Channel Temperature ResolutionThermocouple dependent
Remote Channel Temperature Calibrated AccuracyThermocouple dependent

Wireless

RF Carrier Frequency2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power+0 dBm typical
Receiver Sensitivity-95 dBm typical
Typical outdoors Line of sightUp to 2000 ft
Typical Indoors line of sightUp to 500 ft

Literature

RFTCTemp2000A Data Sheet

RFTCTemp2000A Product User Guide

Add-Ons

Part Numbers

RFTCTemp2000A (Mini Plug) — 901434-00
RFTCTemp2000A (Terminal Block) — 901440-00
