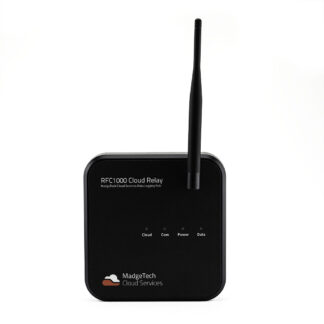

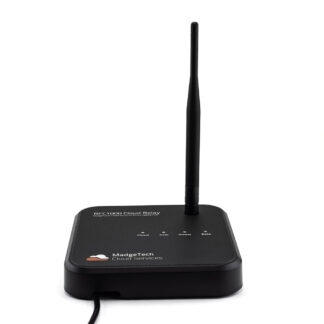

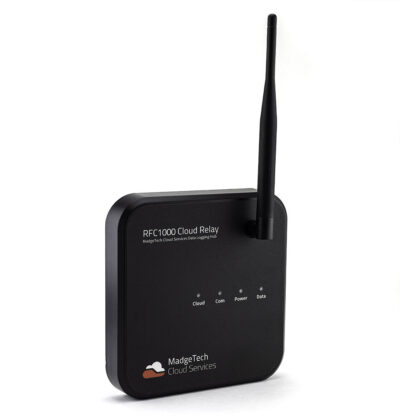

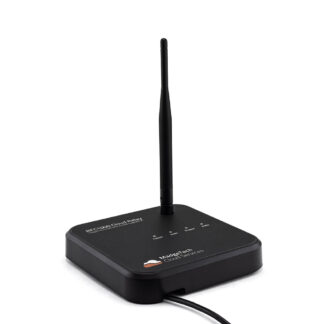

RFC1000 Cloud Relay

MadgeTech Cloud Services data logging hub for use with the RFOT and RF2000A series.

$499.00

Description

The RFC1000 Cloud Relay is a compact, versatile device connecting MadgeTech wireless loggers directly to the cloud, eliminating the need for a central PC. With the RFC1000 Cloud Relay, real-time data can easily be transmitted to the MadgeTech Cloud where it can be viewed from any internet enabled device. The simple design of the RFC1000 Cloud Relay allows for it to be seamlessly integrated into wireless data logging systems. Featuring a seven inch pivoting antenna, the RFC1000 Cloud Relay can be wall mounted or placed on any flat surface. Connecting directly to an Ethernet port allows for cloud connectivity without the need for a computer. Each RFC1000 Cloud Relay can transmit data from up to 64 wireless data loggers, with no limit on the number of Cloud Relays that can be connected to a cloud account. All data is stored in the cloud, with the option to download and print .CSV files for easy record keeping and further analysis.

Please see data sheet for a list of countries approved for use, purchase and distribution.

General

LED IndicatorsRed, Amber & Green
MaterialABS Plastic (body), PVC Plastic (antenna)
DimensionsBody: 6.0 in x 6.24 in x 1.15 in (152.2 mm x 158.6 mm x 29.3 mm) Antenna: 7.2 in (183 mm)
IP RatingIP40
Operating Environment-20 °C to +85 °C, 0 to 95 %RH non-condensed
ApprovalsFCC ID:OA3MRF24J40MC, IC#: 7693A-24J40MC

Wireless

RF Carrier Frequency 2.405 GHz - 2.475 GHz
Typical outdoors Line of sight To RFC1000: 4000 ft max. / To Data Logger: 2000 ft max.
Typical Indoors line of sight To RFC1000: 1000 ft max. / To Data Logger: 500 ft max.

Literature

RFC1000 Cloud Relay Product User Guide
RFC1000 Cloud Relay Specification Sheet

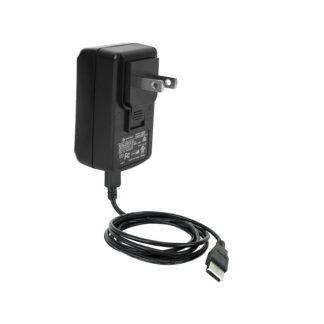

Accessories

Part Numbers

RFC1000 Cloud Relay — 901900-00
