Description

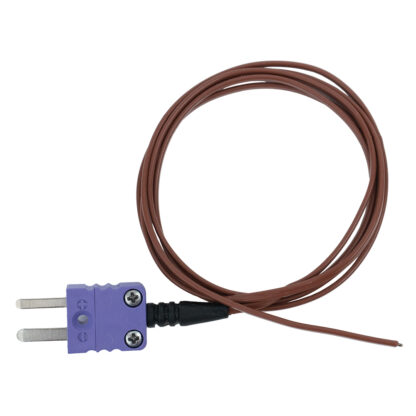

36″ or 72″ Type E thermocouple with SMP connector and PFA insulation.
Type E 36″/72″ Thermocouple with SMP
Specifications
| Temperature Sensor | Thermocouple |
| Probe Measurement Range | -270 °C to +260 °C (-454 °F to +500 °F) |
| Dimensions | 36 inch: 36 in x 0.104 in x 0.056 in (914.4 mm x 2.642 mm x 1.422 mm) 72 inch: 72 in x 0.104 in x 0.056 in (1828.8 mm x 2.642 mm x 1.422 mm) 3 meter: 120 in x 0.104 in x 0.056 in (3000 mm x 2.642 mm x 1.422 mm) 5 meter: 196.85 in x 0.104 in x 0.056 in (5000 mm x 2.642 mm x 1.422 mm) |
| Weight | 36 inch: 0.63 oz (18 g) 72 inch: 0.99 oz (28 g) |
| Material | PFA Insulation, Glass filled High Temp Thermoplastic, Silicone Rubber |
| Approvals | CE |
Literature
| Thermocouple Specification Sheet |
Part Numbers
Type E 36″ Thermocouple with SMP (24 AWG PFA Insulated Type E Thermocouple 36″) — 901607-00
Type E 72″ Thermocouple with SMP (24 AWG PFA Insulated Type E Thermocouple 72″) — 901608-00
