TC101A

Compact DesignLED IndicatorBattery Life Indicator

The TC101A is a compact, thermocouple-based temperature data logger. Includes standard calibration certificate.

Availability: 5-7 Business Days

$199.00

Extended Warranty

Description

The TC101A is a compact, thermocouple-based temperature data logger. This device is available in three thermocouple connection options: miniplug, screw terminal and terminal block.

Compatible with eight different types of thermocouple probes, the TC101A can measure temperatures as low as -270 °C, and up to as high as 1820 °C (probe dependent), with an environmental operating temperature range of -40 °C to +80 °C (-40 °F to +176 °F). The TC101A also features a 10-year battery life and the memory storage capacity of up to 1,032,192 readings.

The TC101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Thermocouple probe sold separately.

General

Memory1,000,000 readings; software configurable memory wrap
500,000 readings in multiple start/stop mode
Reading Rate 1 reading every second to 1 reading every 24 hours
Baud Rate 115,200
Cold Junction Compensation Automatic
Channels1 Internal & 1 Remote
LED Indicators Red & Green
Battery Life 10 years typical at a 15 minute reading rate
MaterialABS plastic
Dimensions 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE

Temperature

Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent

Literature

TC101A Data Sheet

TC101A Product User Guide

Add-Ons

Part Numbers

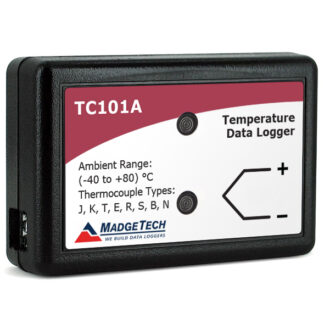

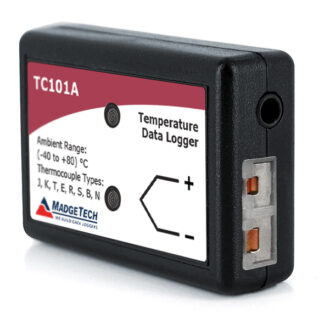

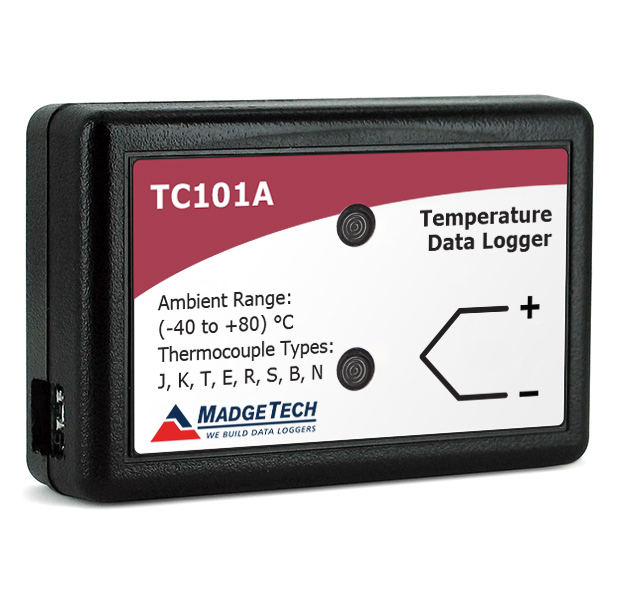

Mini Plug (TC101A-MP) — 901590-00

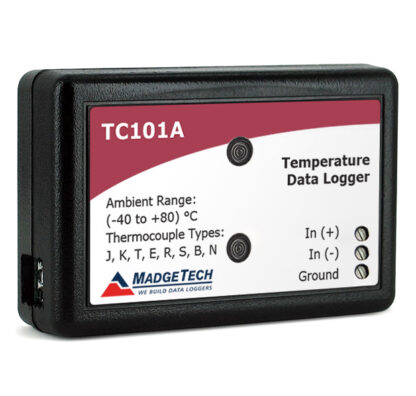

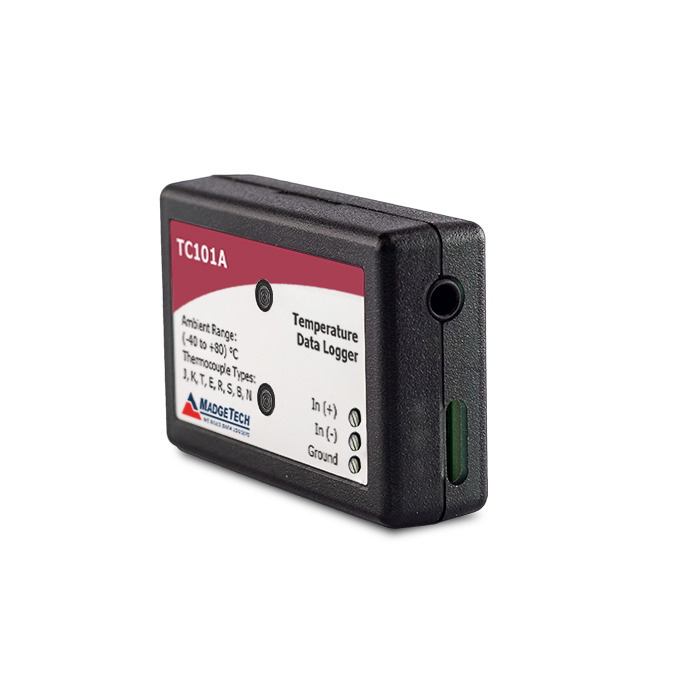

Screw Terminal (TC101A-ST) — 901600-00

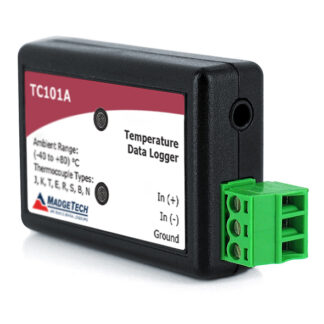

Terminal Block (TC101A-TB) — 901602-00
