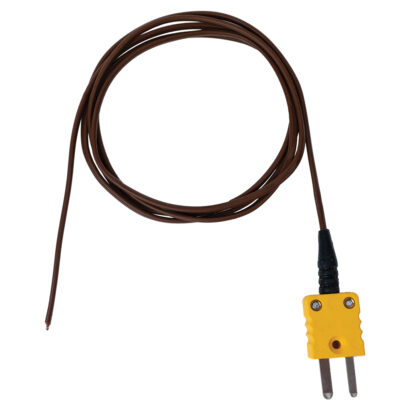

Type K Thermocouple with SMP

TypeK_36in_new_web

Type K Thermocouple with SMP Connector.
Available Lengths:

  • 36 in (0.91 m)
  • 72 in (1.83 m)
  • 118.11 in (3 m)
  • 196.85 in (5 m)
  • 300 in (7.62 m)
  • 50 ft (50.24 m)
  • 100 ft (30.28 m)
Find a Distributor

$30.00 – $200.00

Description

Type K thermocouple with SMP connector and PFA insulation.
Available in the following lengths:

  • 36 in (0.91 m)
  • 72 in (1.83 m)
  • 118.11 in (3 m)
  • 196.85 in (5 m)
  • 300 in (7.62 m)
  • 50 ft (50.24 m)
  • 100 ft (30.28 m)

Specifications

Temperature SensorThermocouple
Probe Measurement Range-270 °C to +260 °C (-454 °F to +500 °F)
Dimensions36 inch: 36 in x 0.104 in x 0.056 in (914.4 mm x 2.642 mm x 1.422 mm)
72 inch: 72 in x 0.104 in x 0.056 in (1828.8 mm x 2.642 mm x 1.422 mm)
3 meter: 120 in x 0.104 in x 0.056 in (3000 mm x 2.642 mm x 1.422 mm)
5 meter: 196.85 in x 0.104 in x 0.056 in (5000 mm x 2.642 mm x 1.422 mm)
Weight36 inch: 0.63 oz (18 g)
72 inch: 0.99 oz (28 g)
MaterialPFA Insulation, Glass filled High Temp Thermoplastic, Silicone Rubber
ApprovalsCE

Literature

Thermocouple Specification Sheet
DOC-5034009-00

Part Numbers

Type K 36 in (0.91 m)Thermocouple with SMP — 901617-00
Type K 72 in (1.83 m) Thermocouple with SMP — 901618-00
Type K 118.11 in (3 m)  Thermocouple with SMP — 902360-00
Type K 196.85 in (5 m)  Thermocouple with SMP — 902361-00
Type K 300 in (7.62 m) Thermocouple with SMP — 902389-00
Type K 50 ft (50.24 m) Thermocouple with SMP — 902380-00
Type K 100 ft (30.28 m) Thermocouple with SMP — 902348-00

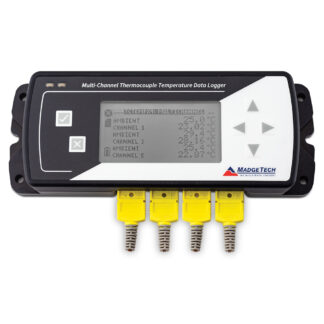

Compatible Products
