TCTempX

The TCTempX Series includes 4, 8, 12, and 16-channel thermocouple-based temperature data loggers. Includes ISO17025 accredited calibration certificate.
Read More >

Key Features:

    • Accepts a Variety of Thermocouples
    • Large Memory Capacity
    • Individual Cold Junction Compensation

$649.00$1,599.00

MadgeTech recommends annual calibration.

Description

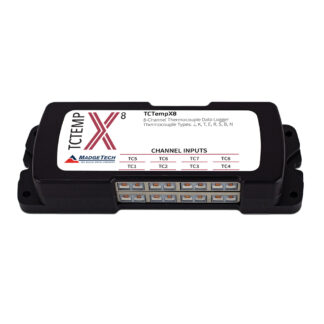

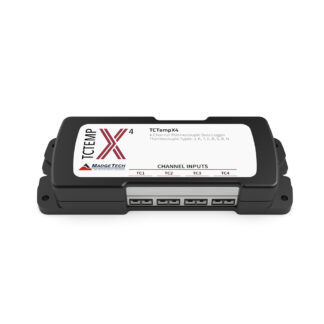

The TCTempX Series includes the TCTempX4, TCTempX8, TCTempX12 and TCTempX16 thermocouple-based temperature data loggers with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.

In addition to having a large memory capacity, the TCTempX allows users to disable channels to further maximize memory capacity. For easy identification, each channel can be named with up to a ten-digit title.

In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.

The TCTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory4-channel: 524,032 readings
8-channel: 262,016 readings
12-channel: 174,677 readings
16-channel: 131,008 readings
Reading Rate 4 Hz up to 1 reading every 24 hours
Cold Junction Compensation Automatic, based on internal channel
Channels4, 8, 12, 16
Battery Life 18 months typical
MaterialBlack anodized aluminum
Dimensions4-channel: 2.70 in x 7.25 in x 1.22 in
(65.6 mm x 184.2 mm x 31.0 mm)
8-channel: 2.70 in x 7.25 in x 1.22 in
(65.6 mm x 184.2 mm x 31.0 mm)
12-channel: 2.70 in x 7.25 in x 1.68 in
(65.6 mm x 184.2 mm x 42.7 mm)
16-channel: 2.70 in x 7.25 in x 2.14 in
(65.6 mm x 184.2 mm x 54.4 mm)
Operating Environment -20 ºC to +60 ºC (-4 ºF to +140 ºF),
0 %RH to 95 %RH non-condensing
ApprovalsCE

Temperature

Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B, N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent

Literature

TCTempX Product User Guide
TCTempX Specification Sheet

Support Videos

TCTempX | Product Overview

TCTempX | Live Overview

Accessories

Part Numbers

TCTempX4 — 902169-00
TCTempX8 — 902171-00
TCTempX12 — 902177-00
TCTempX16 — 902178-00

The TCTempX Series replaces the following:
OctTCTemp2000V2 — 902090-00
OctTemp — 900423-00
QuadTCTemp2000V2 — 902089-00
QuadTemp — 901336-00
