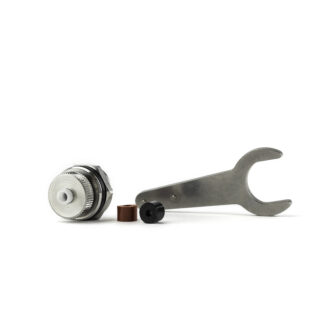

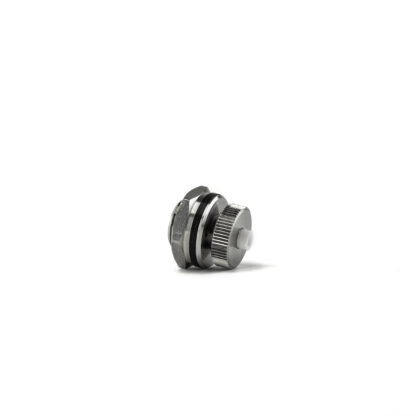

CF200 Canning Fitting for Data Loggers

Canning Fitting for the HiTemp140 Data Loggers.



The CF200 Canning Fitting securely attaches MadgeTech HiTemp140 data loggers to jar lids, cans or other containers, with the data logger probe inserted into the container to monitor internal temperatures. The CF200 can withstand temperatures up to 140 °C (284 °F) making it ideal for use in a variety of canning applications in a wide range of industries and environments.

Compatible with the HiTemp140-FP, HiTemp140-PT-5, HiTemp140-2-TD, and HiTemp140-5.25-TD data loggers.


MaterialMaterial Food Grade 316 Stainless Steel, Silicone Rubber
Dimensions.87 in x .87 in x .85 in (22.1 mm x 22.1 mm x 21.6 mm)
Operating Environment-40 °C (-40 °F) to +140 °C (+284 °F)


CF200 Specification Sheet

CF200 Product User Guide

Part Numbers

CF200 Canning Fitting for Data Loggers — CF200
