HiTemp140-PT

High TemperatureSubmersibleSplash ResistantBattery Life Indicator

The HiTemp140-PT is a high temperature, precision data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Submersible
  • Available in Various Probe Lengths & Styles
  • Measures Temperatures from -40 °C to +140 °C

Availability: Limited Stock Available
*Lead time may vary for PT probes

Looking for the HiTemp140-FP? Click Here

$539.00

Description

The HiTemp140-PT is a submersible, high temperature data logger with a 24 inch bendable probe. This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.

The HiTemp140-PT can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but is capable of measuring extended temperatures up to 260 °C (500 °F) (probe dependent). With a storage capacity of up to 65,536 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.

The HiTemp140-PT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.

Contact us to customize this product

General

Memory65,536 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate125,000
Battery Life1 year typical (1 minute reading rate at 25 °C/77 °F)
User Replaceable Battery
Material316 Stainless Steel
HiTemp140 Pig Tail Probe DimensionsBody: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)

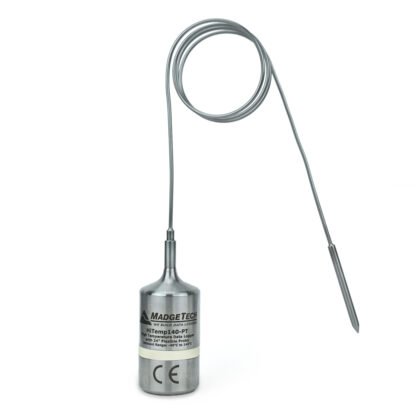

HiTemp140-PT-1: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

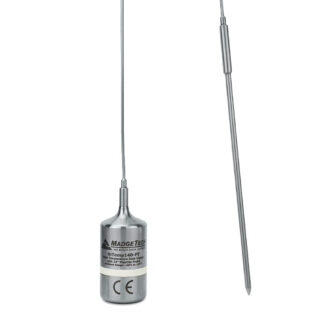

HiTemp140-PT-5: Probe tip is 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle)
Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
IP RatingIP68
SubmersibleYes
Operating Environment-40 °C to +140 °C (-40 °F to +284 °F)
0 %RH to 100 %RH (Body of Logger Cannot Exceed 140 °C)
Required Interface PackageIFC400
Approvals CE

Temperature

Temperature Sensor 100 Ω Platinum RTD
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)
Probe Temperature Range-200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)

Literature

HiTemp140 PT Probe Data Sheet
HiTemp140 PT Probes Product User Guide
HiTemp140 PT Dimensional Drawing
HiTemp140 Probe Types Chart

Accessories

Part Numbers

HiTemp140-PT-1 (24 inch bendable probe and 1 inch piercing tip) — 900230-00
HiTemp140-PT-5 (24 inch bendable probe and 5 inch piercing tip) — 900243-00

Probe Styles

Click here to view this chart including pictures

ExampleProbe TypeMaterialOperating EnvironmentProbe Measurement Range
Rigid Probe for HiTemp140RigidMetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Rigid Transitional Diameter Probe for HiTemp140Rigid Transitional Diameter (TD)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Flexible Probe for HiTemp140Flexible (FP)Bendable PTFETemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 60 PSIA
When wet, the flexible probe cannot exceed 121 °C/1.1 bar. This includes any steam application.
Temperature: -60 °C to +260 °C (-76 °F to 500 °F)
Probe only. Body must not exceed Operating Environment
PT Probe for HiTemp140PTBendable MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +350 °C (-328 °F to +662 °F)
Probe only. Body must not exceed Operating Environment
Fast Response Probe for HiTemp140Fast Response (FR)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
