HiTemp140-FP

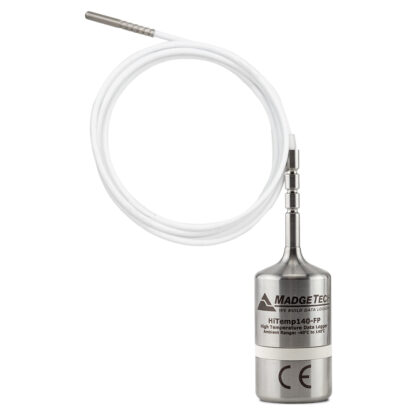

HiTemp140-FP High Temperature Data Logger with Flexible Probe

The HiTemp140-FP is a high temperature data logger with a flexible RTD probe. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • ±0.1 °C Accuracy
  • Available in a Variety of Probe Lengths
  • Probe Measures Temperatures up to 260 °C
Find a Distributor

$539.00 – $589.00

Description

The HiTemp140-FP is a high temperature data logger built for use in harsh environments. The body of the HiTemp140-FP can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.

The HiTemp140-FP is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory32,356 readings
Reading Rate1 reading every 0.25 seconds up to 1 reading every 24 hours
Baud Rate125,000
Battery Life2 years typical (1 minute reading rate)
User Replaceable Battery
MaterialBody: 316 Stainless Steel, Radel
Probe: PFA Insulated Cable with Stainless Steel Tip
DimensionsBody: 2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm)
Probes: HiTemp140-FPST-6: 6 in x 0.13 in (152.5 mm x 3.2 mm)
HiTemp140-FPST-12: 12 in x 0.13 in (304.8 mm x 3.2 mm)
HiTemp140-FPST-36: 36 in x 0.13 in (914 mm x 3.2 mm)
HiTemp140-FPST-72: 72 in x 0.13 in (1829 mm x 3.2 mm)
Key Ring End Cap Key ring replaces standard bottom
Thru-hole: 0.150"
IP RatingIP68
SubmersibleYes
Operating Environment-40 °C to +140 °C (-40 °F to +284 °F) Body of Logger Cannot Exceed 140 °C
0 %RH to 100 %RH, 0 PSIA to 100 PSIA
With Thermal Shield: -200 °C to +250 °C (-328 °F to +482 °F)
Required Interface PackageIFC400 or IFC406
ApprovalsCE
Weight0.1875 LBS

Temperature

Temperature SensorFlexible RTD Probe
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.1 °C from +20 °C to +140 °C
±0.3 °C from -20 °C to +19.99 °C
±0.4 °C from -40 °C to -20.01 °C
Probe Temperature Range-200 °C to +260 °C (-328 °F to +500 °F)
(Body of Logger Cannot Exceed 140 °C)

Literature

HiTemp140 Flexible Probe Specification Sheet
HiTemp140 Flexible Probe Product User Guide
HiTemp140 Flexible Probe Dimensional Drawing
HiTemp140 Probe Types Chart

HiTemp140 Response Time Chart

Support Videos

HiTemp140 | Selecting the Right Probe

HiTemp140-FP | Startup Guide

HiTemp140 | Changing the Battery

HiTemp140 | Replacing the O-Rings

HiTemp140 | Accessories

Probe Styles

Click here to view this chart including pictures

ExampleProbe TypeMaterialOperating EnvironmentProbe Measurement Range
Rigid Probe for HiTemp140RigidMetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Rigid Transitional Diameter Probe for HiTemp140Rigid Transitional Diameter (TD)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Flexible Probe for HiTemp140Flexible (FP)Bendable PTFETemperature: -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIATemperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
PT Probe for HiTemp140PTBendable MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +350 °C (-328 °F to +662 °F)
Probe only. Body must not exceed Operating Environment
Fast Response Probe for HiTemp140Fast Response (FR)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment

Accessories

Part Numbers

HiTemp140-FPST-6 — 902330-00
HiTemp140-FPST-12 — 902312-00
HiTemp140-FPST-24 — 902364-00
HiTemp140-FPST-36 — 902313-00
HiTemp140-FPST-72 — 902316-00
HiTemp140-FPST-6-KR — 902339-00
HiTemp140-FPST-12-KR — 902401-00
HiTemp140-FPST-36-KR — 902336-00
HiTemp140-FP-6 (6 inch flexible probe without stainless steel tip) — 902003-00
HiTemp140-FP-12 (12 inch flexible probe without stainless steel tip) — 900211-00
HiTemp140-FP-36 (36 inch flexible probe without stainless steel tip) — 900212-00
HiTemp140-FP-72 (72 inch flexible probe without stainless steel tip) — 900218-00
