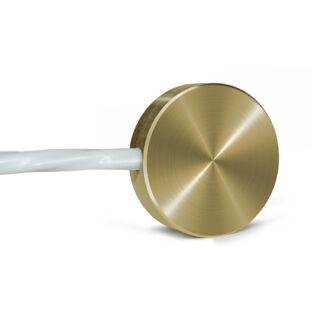

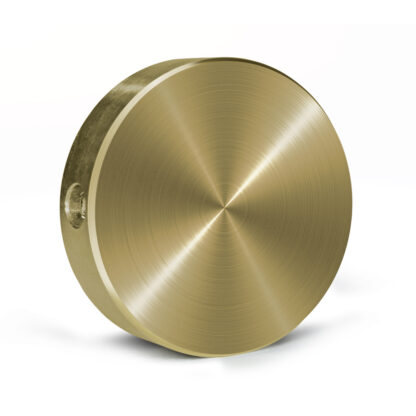

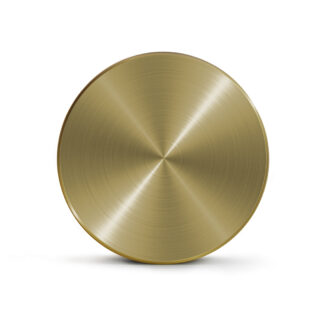

MicroDisc Surface Temperature Probe Attachment

Surface temperature probe attachment designed to be used with the MadgeTech HiTemp140-FP and LyoTemp Data Loggers.

$25.00

Description

The MicroDisc is a surface temperature probe attachment designed to be used with the MadgeTech HiTemp140-FP or LyoTemp data loggers. Made of C46400 brass, this rugged disc probe attachment is formed to connect directly to the tip of the LyoTemp’s thermistor probe. The MicroDisc is specifically designed to give the user the ability to perform processes that require surface temperature monitoring.

With its compact size, puck like shape and wide operating range, the MicroDisc allows for close contact with flat surfaces ensuring accurate temperature monitoring of shelving during the Lyophilization process. The MicroDisc is fitted with a silicone rubber insert that secures the probe connection throughout the data logging process.

General

MaterialBrass (C46400), Silicone Rubber Insert
Dimensions0.25 in x 0.97 in x 0.97 in (6.5 mm x 25 mm x 25 mm)
Operating Environment-60 °C to +177 °C (-75 °F to +350 °F), 0 %RH to 100 %RH
Operating RangeLyoTemp:
-60 °C to +75 °C (-76 °F to +167 °F)
HiTemp140-FP:
-40 °C to +177 °C (-40 °F to +350 °F)

Literature

MicroDisc Specification Sheet

MicroDisc Product User Guide

Part Numbers

MicroDisc Surface Temperature Probe Attachment — 900361-00
