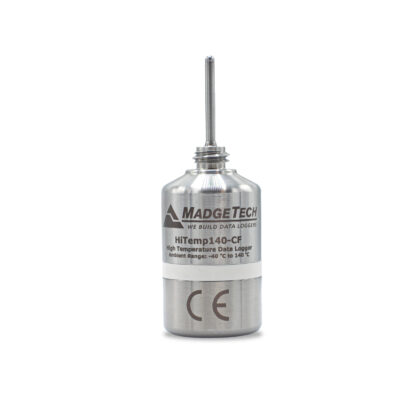

The HiTemp140-CF is a high-temperature, precision data logger with threading for use with MadgeTech Canning Fittings. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Designed for heat penetration testing and temperature distribution monitoring
  • Submersible

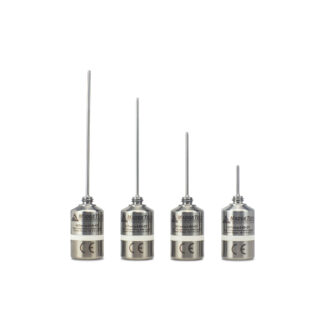

  • Available in Various Probe Lengths



The HiTemp140-CF Data Logger is engineered to provide precise and reliable temperature measurements in extreme conditions. Designed for heat penetration testing and monitoring temperature distribution, this data logger is compatibility with the ThermaLock thermowell ensures it can be securely attached to monitor inside various food packaging forms such as cans, jars, and pouches.

The HiTemp140-CF can endure extreme temperatures from -40 °C to +140 °C (-40 °F to +284 °F). It boasts a storage capacity of up to 32,256 time and date stamped readings and can be programmed for an immediate start or delayed start up to 18 months ahead.

This version is also compatible with the latest MadgeTech 4 Software, facilitating straightforward operations such as starting, stopping, and downloading. The software provides graphical, tabular, and summary data for detailed analysis, with options to customize the display units according to engineering requirements.

The HiTemp140-CF is an indispensable tool for detecting cold spots and ensuring product quality in food processing.


HiTemp140-CF Specification Sheet

Can Sizing Guide

Installation Guide

HiTemp140-CF Product User Guide


Part Numbers

HiTemp14-CF-1.1 – 902425-00
HiTemp14-CF-2.1 – 902426-00
HiTemp14-CF-3.1 – 902427-00
HiTemp14-CF-3.9 – 902428-00
