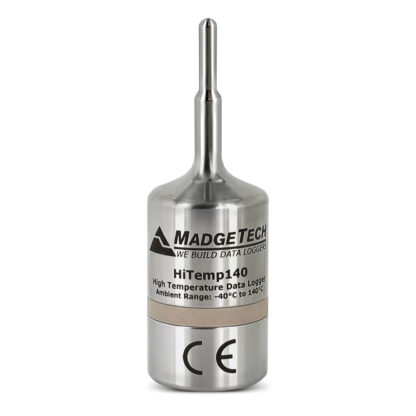

HiTemp140 High Temperature Data Logger
HiTemp140 High Temperature Data Logger

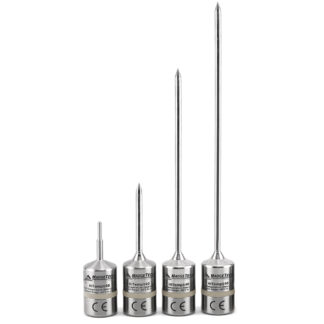

HiTemp140 High Temperature Data Loggers

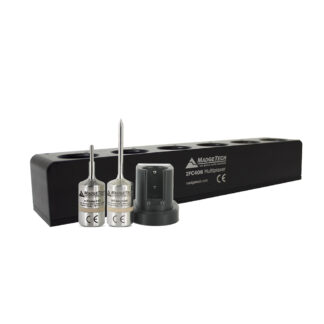

HiTemp140 High Temperature Data Logger with IFC406 Interface

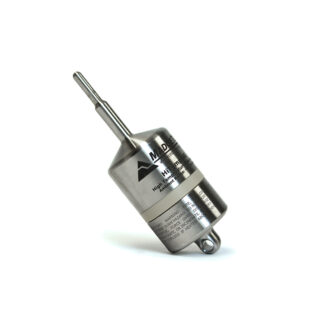

HiTemp140 High Temperature Data Logger with Key Ring End Cap

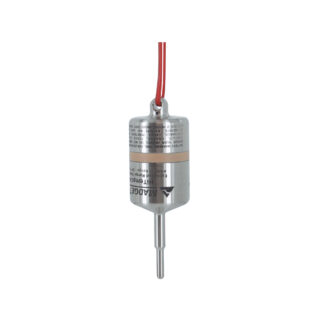

HiTemp140 High Temperature Data Logger with Key Ring End Cap

The HiTemp140 is a high temperature, precision data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Submersible
  • Available in Various Probe Lengths & Styles
  • Measures Temperatures from -40 °C to +140 °C

Looking for the HiTemp140-PT? Click Here
Looking for the HiTemp140-FP? Click Here

$539.00$589.00

Description

The HiTemp140 is a submersible, high temperature data logger built for use in harsh environments. This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.

The HiTemp140 can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but is capable of measuring extended temperatures up to 260 °C (500 °F) (probe dependent). With a storage capacity of up to 32,256 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.

The HiTemp140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Body of data logger cannot exceed 140 °C (284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.

Contact us to customize this product

General

Memory32,256 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate125,000
Battery Life2 years typical (1 minute reading rate)
User Replaceable Battery
Material316 Stainless Steel, Radel
HiTemp 140 Rigid and Rigid Transitional Diameter DimensionsHiTemp140-1 Body: 1.55 in x 0.97 in dia. (40 mm x 25 mm dia.)
Probe: 1 in x 0.125 in dia. (0.188 in transitional dia.)
25 mm x 3.2 mm dia. (4.8 mm transitional dia.)
Body (for 2 in, 5.25 in, 7 in;): 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)

HiTemp140-2 : 2.0 in x 0.188 in dia. (51 mm x 4.8 mm)

HiTemp140-2-TD: 2.0 in x 0.125 in dia. (0.188 in transitional dia.)
(51 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-5.25: 5.25 in x 0.188 in dia. (134 mm x 4.8 mm)

HiTemp140-5.25-TD: 5.25 in x 0.125 in dia. (0.188 in transitional dia.)
(134 mm x 3.2 mm dia. (4.8 mm transitional dia.)

HiTemp140-7: 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)
HiTemp140 Fast Response Probe DimensionsBody: 1.89 in x 0.97 in x 0.97 in (48.1 mm x 24.6 mm x 24.6 mm)
Probe: 1.75 in x 0.0625 in dia. (0.188 in transitional dia.) (44.5 mm x 1.59 mm (4.78 mm Transitional dia.))
Key Ring End Cap Key ring replaces standard bottom
Thru-hole: 0.150"
IP RatingIP68
SubmersibleYes
Operating Environment-40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface PackageIFC400
Approvals CE

Temperature

Temperature Sensor 100 Ω Platinum RTD
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)
Probe Temperature Range-200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)

Literature

HiTemp140 Rigid and Rigid Transitional Diameter Probes Specification Sheet
HiTemp140 Rigid and Rigid Transitional Diameter Probes Product User Guide
HiTemp140 Rigid and Rigid Transitional Diameter Probes Dimensional Drawing

HiTemp140 Fast Response Probe Specification Sheet
HiTemp140 Fast Response Probe Product User Guide
HiTemp140 Fast Response Probe Dimensional Drawing

HiTemp140 Probe Types Chart

HiTemp140 Response Time Chart

Support Videos

HiTemp140 | Product Overview

HiTemp140 | Startup Guide

HiTemp140 | Live Overview

HiTemp140 | Selecting the Right Probe

HiTemp140 | Changing the Battery

HiTemp140 | Replacing the O-Rings

HiTemp140 | Accessories

Accessories

Part Numbers

HiTemp140-1 (1 inch rigid probe) — 900140-00
HiTemp140-2 (2 inch rigid probe) — 900153-00
HiTemp140-2-TD (2 inch transitional diameter probe) — 900165-00
HiTemp140-5.25 (5.25 inch rigid probe) — 900173-00
HiTemp140-5.25-TD (5.25 inch transitional diameter probe ) — 900180-00
HiTemp140-7 (7 inch rigid probe ) — 900198-00
HiTemp140-FR (2 inch fast response probe) — 900221-00

Probe Styles

Click here to view this chart including pictures

ExampleProbe TypeMaterialOperating EnvironmentProbe Measurement Range
Rigid Probe for HiTemp140RigidMetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Rigid Transitional Diameter Probe for HiTemp140Rigid Transitional Diameter (TD)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Flexible Probe for HiTemp140Flexible (FP)Bendable PTFETemperature: -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIAWhen wet, the flexible probe cannot exceed 121 °C/1.1 bar. This includes any steam application.
Temperature: -60 °C to +260 °C (-76 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
PT Probe for HiTemp140PTBendable MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +350 °C (-328 °F to +662 °F)
Probe only. Body must not exceed Operating Environment
Fast Response Probe for HiTemp140Fast Response (FR)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA
Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
