For use in hazardous environments, MadgeTech offers a full line of intrinsically safe as well as ATEX/IECEx-approved data loggers.

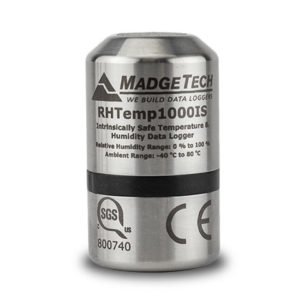

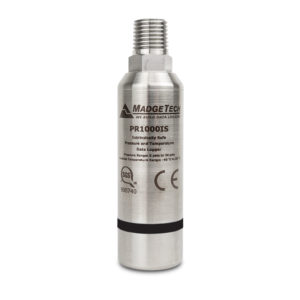

Intrinsically Safe Data Loggers
All MadgeTech intrinsically safe data loggers are certified by SGS in accordance with the latest issue of FM3600, FM3610. These devices are certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D. Each data logger is available with either a flush bottom or key ring option for ease of use. All loggers are compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

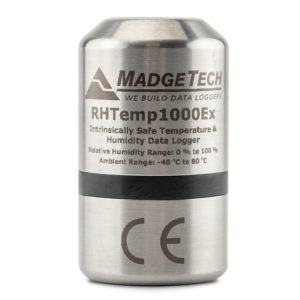

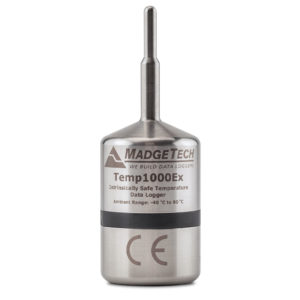

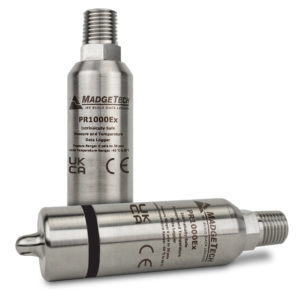

ATEX/IECEx Approved Data Loggers
MadgeTech’s line of ATEX/IECEx approved data loggers carry hazardous location, intrinsically safe certification in accordance with the latest issue of IECEx 60079-0, IECEx 60079-11 and Directive 2014/34/EU (known as ATEX). These devices are certified intrinsically safe for:
•Electrical Protection Concepts: IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
• Equipment Protection Level: Ga – Gc, Zones 0-2
• Gas Groups: IIC
• Temperature Class: T4
