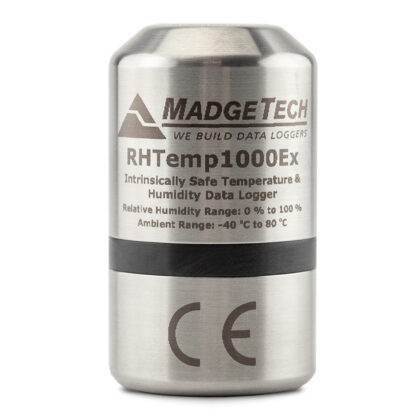

RHTemp1000Ex

Compact Design

The RHTemp1000Ex humidity and temperature data logger carries hazardous location and intrinsically safe global certification (ATEX, IECEx, FM 3610). Includes ISO 17025 accredited calibration certificate.

Description

The RHTemp1000Ex is a compact, humidity and temperature data logger that carries hazardous location and intrinsically safe global certification (ATEX, IECEx, FM 3610).

This one of a kind data logger is certified intrinsically safe for the following:

  • Electrical Protection Concepts: ISO/IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
  • Equipment Protection Level: Ga – Gc, Zones 0-2
  • Gas Groups: IIA – IIC
  • Temperature Class: T4

This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C (0 °C to ±50 °C) and ±0.9 °F (32 °F to 122 °F). The RHTemp1000IS can store up to 32,767 time and date stamped readings, and is able to be programmed to start up to 24 months in advance.

The RHTemp1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.



General

Memory32,767 readings
Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
Battery Life 2 years typical at 15 minute reading rate
Material316 Stainless Steel/Radel
Dimensions1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm)
IP Rating(Not Rated) Caution: Do not submerge this product to retain IS rating.
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH (case properly sealed)
Required Interface Package IFC400 or IFC406
ApprovalsCE
ATEX
IECEx
FM 3610

Temperature

Temperature Sensor Resistance Temperature Detector (RTD)
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.5 °C (0 °C to 55 °C), ±0.9 °F (32 °F to 122 °F)

Humidity

Humidity Sensor Capacitive Polymer
Humidity Range 0 %RH to 100 %RH (non-condensing)
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3 %RH maximum
Humidity Specified Accuracy Range25 %RH to 75 %RH
+20 °C to +40 °C
Hysteresis Error 1 % Typical,
3% Maximum
