Temp1000IS

The Temp1000IS is an intrinsically safe, temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Compact Size
  • Intrinsically Safe
  • Available with Flush Bottom or Key Ring End Cap

$239.00

MadgeTech recommends annual calibration.

Description

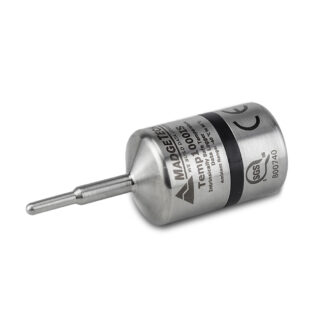

The Temp1000IS is a compact, temperature data logger that is SGS approved as intrinsically safe for hazardous environments. The Temp1000IS is available with either a flush bottom or key ring end cap.

This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The Temp1000IS can store up to 32,767 time and date stamped readings, and is able to be programmed to start up to 24 months in advance.

The Temp1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The Temp1000IS has been SGS certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.

General

Memory65,536 Readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Battery Life2 year typical at 15 minute reading rate
Material316 Stainless Steel/Radel
Dimensions2.66 in x .97 in dia. (67.6 mm x 24.6 mm dia.)
Key Ring End Cap Key ring replaces standard bottom
Thru-hole: 0.150"
IP RatingIP68
Operating Environment-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (case properly sealed)
Required Interface PackageIFC400
ApprovalsCE
FM Class 3600, latest revision
FM Class 3610, latest revision
CAN/CSA-C22.2 No. 60079-0:15
CAN/CSA-C22.2 No. 60079-11:14

Temperature

Temperature SensorSemiconductor
Temperature Range-40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.5 °C (0 °C to ±55 °C), ±0.9 °F (32 °F to 131 °F)

Literature

Temp1000IS Product User Guide
Temp1000IS Specification Sheet

Accessories

Part Numbers

Temp1000IS 1 in Flush Bottom — 902214-00
Temp1000IS 2 in Flush Bottom — 902215-00
Temp1000IS 5.25 in Flush Bottom — 902216-00
Temp1000IS 7 in Flush Bottom — 902217-00
Temp1000IS 1 in Key Ring End Cap — 902219-00
Temp1000IS 2 in Key Ring End Cap — 902220-00
Temp1000IS 5.25 in Key Ring End Cap — 902221-00
Temp1000IS 7 in Key Ring End Cap — 902222-00

The latest version of the Temp1000IS replaces the following SKU’s
Temp1000IS (Flush Bottom) — 901644-00
Temp1000IS (Key Ring End Cap) — 901650-00
