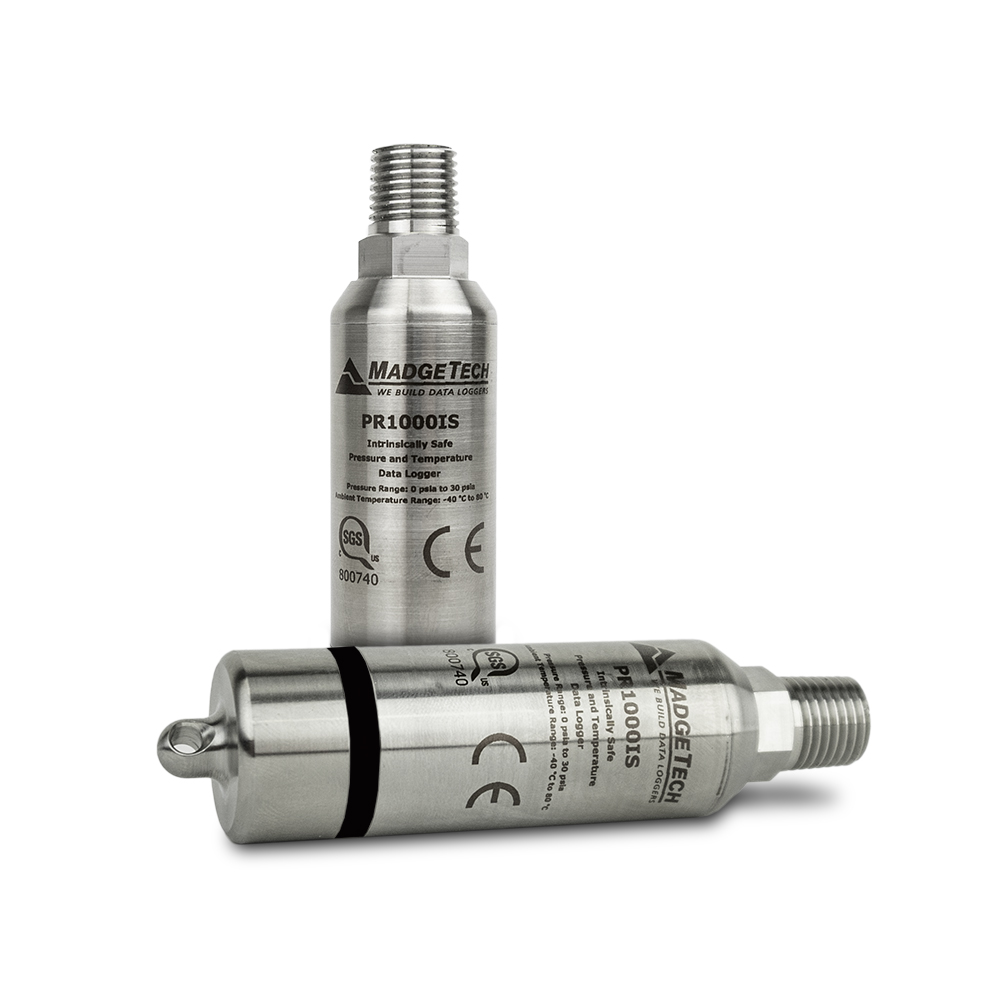

PR1000IS

The PR1000IS is an intrinsically safe, pressure and temperature data logger with NPT fitting. Includes ISO17025 accredited calibration certificate.
Read More >

Key Features:

  • Intrinsically Safe
  • Compact Design
  • ¼ Inch NPT Fitting
  • Available in 10 Measurement Ranges

Availability: 5-7 Business Days

$689.00

MadgeTech recommends annual calibration.

Description

The PR1000IS an intrinsically safe, temperature, pressure and transient pressure data logger. This device comes standard with a common ¼ in. NPT fitting and is available in models ranging from 30 to 500 PSI.

The PR1000IS can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.

The PR1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

PR1000IS is certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.

General

Memory 1,396,736 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours, Up to 128 Hz in transient mode
Battery Life 1 year
Material 316 Stainless Steel/Radel
Dimensions 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
Submersible Yes
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface Package IFC400/IFC406
Approvals CE, IS rated

Temperature

Temperature Sensor Internal semiconductor
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 1.0 °C (1.8 °F)
Temperature Calibrated Accuracy ±2.0 °C (3.6 °F) at 0 °C to +50 °C (+32 °F to +122 °F)
±4.0 °C (7.2 °F) at -40 °C to -1 °C (-40 °F to +30 °F)
±4.0 °C (7.2 °F) at +51 °C to +85 °C (+124 °F to +185 °F)

Pressure

Pressure Sensor Semiconductor (strain gauge)
Pressure Range 0-30, 0-100, 0-300, 0-500 PSIA/PSIG, 0-1000, 0-5000 PSIA
Pressure Resolution See Specifications Sheet
Pressure Calibrated Accuracy Range: Accuracy
0 to 30 PSIA/PSIG: ±0.6 PSI
100 PSIA/PSIG: ±2 PSI
300 PSIA/PSIG: ±6 PSI
500 PSIA/PSIG: ±10 PSI
1000 PSIA: ±20 PSI
5000 PSIA: ±100 PSI

Literature

PR1000IS Product User Guide
PR1000IS Specification Sheet

Accessories

Part Numbers

PR1000IS-1000A — 902254-00
PR1000IS-100A — 902251-00
PR1000IS-100G — 902257-00
PR1000IS-300A — 902252-00
PR1000IS-300G — 902258-0
PR1000IS-30A — 902250-00
PR1000IS-30G — 902256-00
PR1000IS-5000A — 902255-00
PR1000IS-500A — 902253-00
PR1000IS-500G — 902259-00
PR1000IS-1000A-KR — 902284-00
PR1000IS-100A-KR — 902281-00
PR1000IS-100G-KR — 902287-00
PR1000IS-300A-KR — 902282-00
PR1000IS-300G-KR — 902288-00
PR1000IS-30A-KR — 902280-00
PR1000IS-30G-KR — 902286-00
PR1000IS-5000A-KR — 902285-00
PR1000IS-500A-KR — 902283-00
PR1000IS-500G-KR — 902289-00

The PR1000 replaces the following:
PRTemp1000IS-1000-PSIA — 901170-00
PRTemp1000IS-100-PSIA — 901174-00
PRTemp1000IS-100-PSIG — 901179-00
PRTemp1000IS-300-PSIA — 901189-00
PRTemp1000IS-300-PSIG — 901193-00
PRTemp1000IS-30-PSIA — 901197-00
PRTemp1000IS-30-PSIG — 901203-00
PRTemp1000IS-5000-PSIA — 901209-00
PRTemp1000IS-500-PSIA — 901213-00
PRTemp1000IS-500-PSIG — 901217-00
PRTrans1000IS-1000-PSIA — 901271-00
PRTrans1000IS-100-PSIA — 901275-00
PRTrans1000IS-100-PSIG — 901279-00
PRTrans1000IS-300-PSIA — 901283-00
PRTrans1000IS-300-PSIG — 901287-00
PRTrans1000IS-30-PSIA — 901291-00
PRTrans1000IS-30-PSIG — 901295-00
PRTrans1000IS-5000-PSIA — 901299-00
PRTrans1000IS-500-PSIA — 901303-00
PRTrans1000IS-500-PSIG — 901307-00
