PR1000Ex

Compact DesignSubmersible

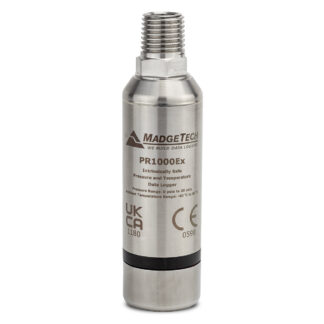

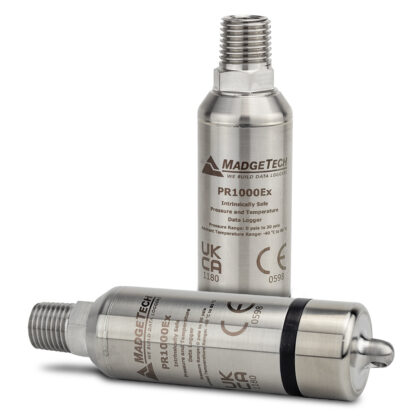

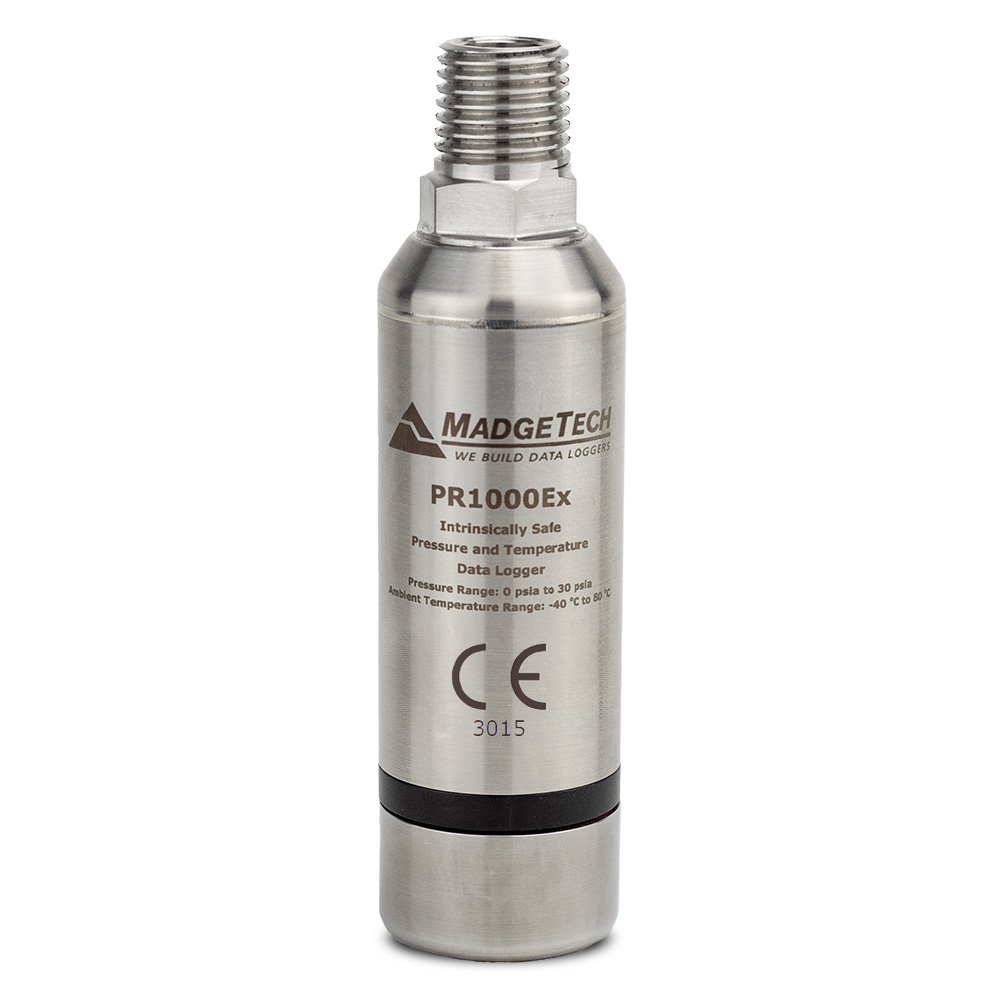

The PR1000Ex is a pressure and temperature data logger with NPT fitting that carries hazardous location certification (ATEX, IECEx). Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • ATEX Approved
  • Compact Design
  • ¼ Inch NPT Fitting
  • Available in 10 Measurement Ranges

Availability: 5-7 Business Days

$699.00

Extended Warranty

Description

The PR1000Ex is a temperature, pressure, and transient pressure data logger that carries hazardous location certification (ATEX, IECEx).

  • Electrical Protection Concepts: IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
  • Equipment Protection Level: Ga – Gc, Zones 0-2
  • Gas Groups: IIC
  • Temperature Class: T4

Designed to fit in the palm of your hand, the PR1000Ex is only 3.6 inches tall and features a common ¼ in. NPT pressure port for easy installation. The PR1000Ex can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C. To adapt to most applications, the PR1000Ex will be available in 10 different pressure ranges from 30 up to 5000 PSIA/PSIG.

The PR1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The PR1000Ex is certified in accordance with the latest issue of IECEx 60079-0, IECEx 60079-11, and Directive 2014/34/EU.

General

Memory 1,396,736 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours, Up to 128 Hz in transient mode
Battery Life 1 year
Material 316 Stainless Steel/Radel
Dimensions 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
Submersible Yes
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface Package IFC400/IFC406
Approvals CE, IS rated

Temperature

Temperature Sensor Internal semiconductor
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 1.0 °C (1.8 °F)
Temperature Calibrated Accuracy ±2.0 °C (3.6 °F) at 0 °C to +50 °C (+32 °F to +122 °F)
±4.0 °C (7.2 °F) at -40 °C to -1 °C (-40 °F to +30 °F)
±4.0 °C (7.2 °F) at +51 °C to +85 °C (+124 °F to +185 °F)

Pressure

Pressure Sensor Semiconductor (strain gauge)
Pressure Range 0-30, 0-100, 0-300, 0-500 PSIA/PSIG, 0-1000, 0-5000 PSIA
Pressure Resolution See Specifications Sheet
Pressure Calibrated Accuracy Range: Accuracy
0 to 30 PSIA/PSIG: ±0.6 PSI
100 PSIA/PSIG: ±2 PSI
300 PSIA/PSIG: ±6 PSI
500 PSIA/PSIG: ±10 PSI
1000 PSIA: ±20 PSI
5000 PSIA: ±100 PSI

Literature

PR1000Ex Specification Sheet

PR1000Ex Product User Guide

Accessories

Part Numbers

PR1000Ex-1000A — 902264-00
PR1000Ex-100A — 902261-00
PR1000Ex-100G — 902267-00
PR1000Ex-300A — 902262-00
PR1000Ex-300G — 902268-00
PR1000Ex-30A — 902260-00
PR1000Ex-30G — 902266-00
PR1000Ex-5000A — 902265-00
PR1000Ex-500A — 902263-00
PR1000Ex-500G — 902269-00

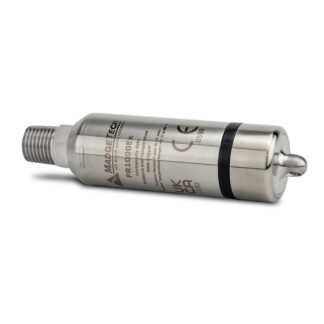

PR1000Ex-1000A-KR — 902294-00
PR1000Ex-100A-KR — 902291-00
PR1000Ex-100G-KR — 902297-00
PR1000Ex-300A-KR — 902292-00
PR1000Ex-300G-KR — 902298-00
PR1000Ex-30A-KR — 902290-00
PR1000Ex-30G-KR — 902296-00
PR1000Ex-5000A-KR — 902295-00
PR1000Ex-500A-KR — 902293-00
PR1000Ex-500G-KR — 902299-00
