RFVolt2000A

The RFVolt2000A is a wireless voltage data logger. Includes standard calibration certificate. Read More >

Key Features:

  • Digital Display
  • Available in 4 Measurement Ranges
  • Configurable Alarms & Notifications

$329.00

MadgeTech recommends annual calibration.

Description

The RFVolt2000A is a wireless voltage data logger designed to connect directly to DC voltage sources. This device can also be interfaced with a wide range of voltage output sensors, including pressure sensors and CO2 sensors, as well as transmitters and other transducers. The RFVolt2000A is available in four ranges: 3.2 VDC, 24 VDC, 32VDC or 160mVDC.

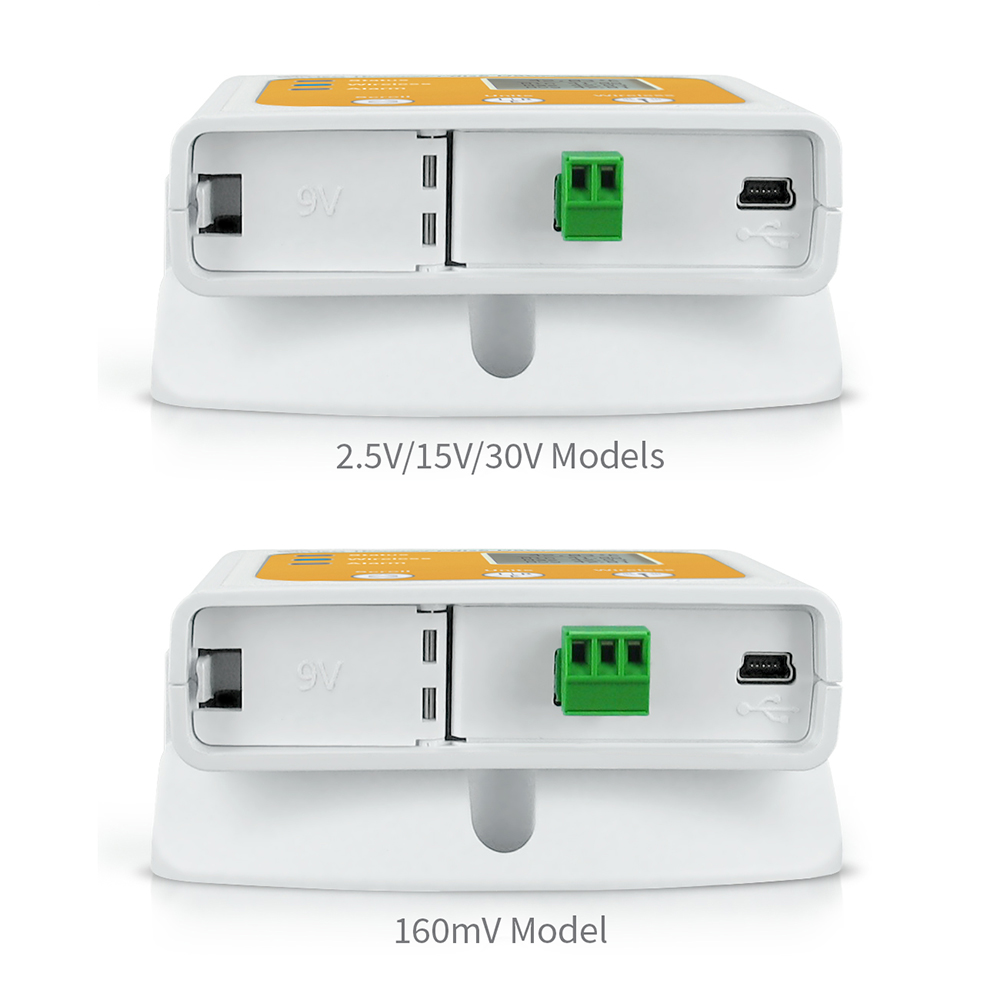

The RFVolt2000A-160mVDC model is a wireless, differential voltage data logger. The device is equipped with a three position terminal block to allow for a positive, negative and ground connection. This allows the measurement of the voltage difference between two signals tied to the same ground.

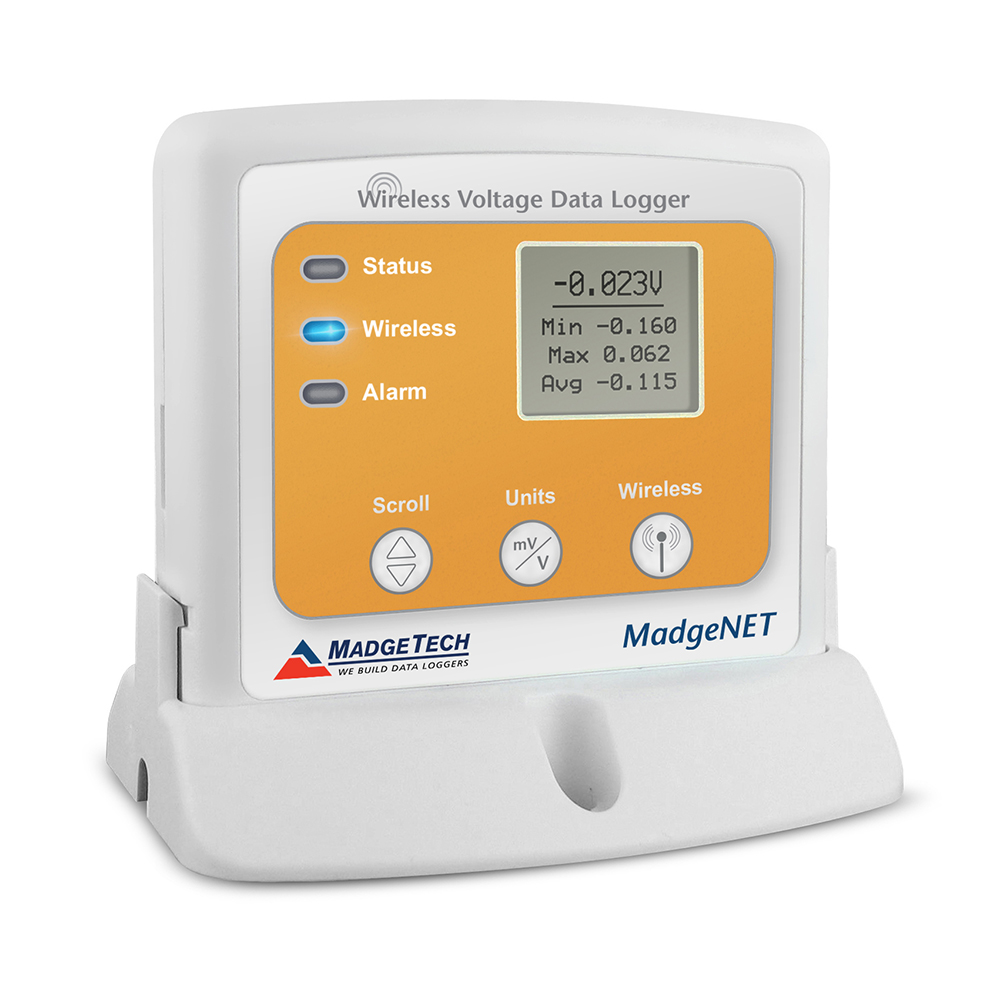

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFVolt2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The RFVolt2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFVolt2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.

General

Memory 32,256 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Indicators Green, Blue & Red
Battery Life 5 years typical at a 15 minute reading rate
MaterialABS plastic
Dimensions3.5 in x 3.17 in x 0.95 in (88.9 mm x 80.5 mm x 24.1 mm) - Data logger only
IP Rating IP22
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package RFC1000 (wireless); USB to Mini USB Cable
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Voltage

Voltage Range 160 mV:-160 mVDC to +160 mVDC
3.2 V: -3.2 VDC to +3.2 VDC
24 V: -8 VDC to +24 VDC
32 V: -8 VDC to +32 VDC
Voltage Resolution 160 mVDC: 0.005 mV
3.2 VDC: 0.1 mV
24 VDC: 0.5 mV
32 VDC: 1.0 mV
Voltage Calibrated Accuracy 160 mV: ±0.01%FSR at 25 °C (77 °F)
3.2 V: ±0.05%FSR at 25 °C (77 °F)
24 V: ±0.05%FSR at 25 °C (77 °F)
32 V: ±0.05%FSR at 25 °C (77 °F)

Literature

RFVolt2000A Product User Guide
RFVolt2000A Specification Sheet

Support Videos

RFVolt2000A | Changing the Battery

RFVolt2000A | Channel Programming

RFVolt2000A | The Difference Between Current & Voltage

Accessories

Part Numbers

RFVolt2000A-3.2V — 901460-00
RFVolt2000A-24V — 901450-00
RFVolt2000A-32V — 901465-00
RFVolt2000A-160mV  — 901455-00
