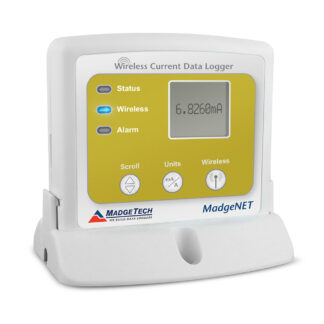

The RFCurrent2000A is a wireless DC current data logger. Includes standard calibration certificate. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Available in 3 Measurement Ranges


MadgeTech recommends annual calibration.


Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The RFCurrent2000A is a wireless DC current data logger available in three ranges: 20 mA, ±160 mA and ±3 A. The data logger can connect directly to low-level DC current sources and can also be interfaced with a wide range of current output sensors such as flow meters, pH transmitters and more.

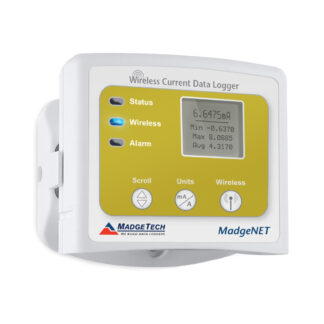

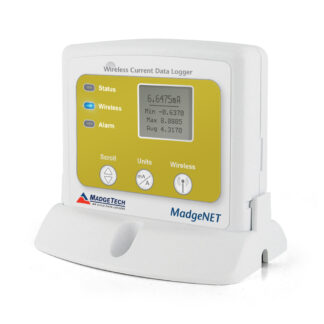

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCurrent2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFCurrent2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

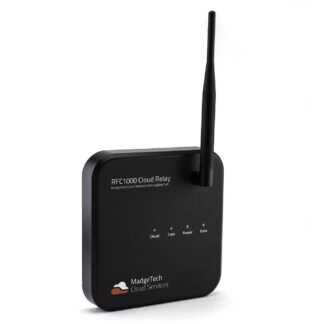

The RFCurrent2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor real-time data remotely on any internet enabled device, from anywhere in the world.

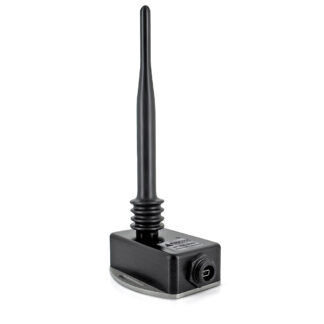

Note: RFC wireless interface required.


Memory32,256 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED IndicatorsGreen, Blue & Red
Battery Life4 years typical at a 15 minute reading rate
MaterialABS plastic
Dimensions20 mA & 3 A: 3.19 in x 3.5 in x 0.95 in (80.9 mm x 88.9 mm x 24.1 mm) - Data logger only
160 mA: 3.17 in x 3.5 in x 0.95 in (80.5 mm x 88.9 mm x 24.1 mm) - Data logger only
IP RatingIP22
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing

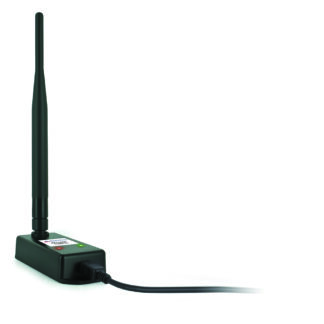

Required Interface Package RFC1000 (wireless); USB to Mini USB Cable
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)


Current Range 20 mA: -2 mA to 30 mA
±160 mA: ±160 mA
±3 A: ±3 A
Max Voltage: Inputs & Ground0 to 3 V
Current Resolution 20 mA: 0.5 μA
±160 mA: 5 μA
±3 A: 100 μA
Current Calibrate Accuracy 20 mA, 160 mA: ±0.05 %FSR
3 A: ±0.15 %FSR
Current Input Impedance 20 mA: 10 Ω, ±1%
±160 mA: 1 Ω, ±1%
±3 A: <0.05 Ω


RF Carrier Frequency2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical outdoors Line of sight Up to 2000 ft
Typical Indoors line of sight Up to 500 ft


RFCurrent2000A Product User Guide
RFCurrent2000A Specification Sheet

Support Videos

RFCurrent2000A | Changing the Battery

RFCurrent2000A | Channel Programming

RFCurrent2000A | The Difference Between Current & Voltage


Part Numbers

RFCurrent2000A (20 mA) — 901397-00
RFCurrent2000A (±160 mA) — 901394-00
RFCurrent2000A (±3 A) — 901401-00
