VFC2000-MT

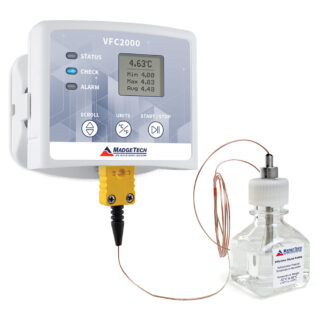

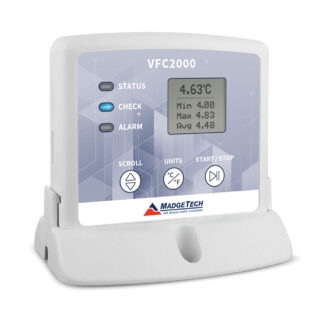

VFC2000 Vaccine Temperature Monitoring System with Probe

The VFC2000-MT is a low-cost temperature monitoring system for vaccines, recording temperatures as low as -100 °C (-148 °F). Includes ISO17025 accredited calibration certificate.
Read More >

Key Features:

VFC & CDC Compliant
Audible & Visual Alarms
Temperature Check Reminder
Annual or Biennial Calibration Option

Find a Distributor

$199.00

Glycol Bottle

Extended Warranty

Yes (+15%)

Requested Calibration Expiration Date

MadgeTech recommends annual calibration.

Description

The VFC2000-MT is a simple, low-cost temperature monitoring system for vaccines. The VFC2000-MT is designed to comply with all CDC and VFC requirements and provides precise, continuous temperature monitoring and validation for temperatures as low as -100 °C (-148 °F).

Featuring a convenient LCD screen, the VFC2000-MT displays current, minimum, and maximum readings as well as a battery level indicator. The VFC2000-MT is also equipped with an LED reminder to conduct the required 24-hour temperature check. If temperatures fluctuate out-of-range, the VFC2000-MT triggers an audio and visual alert.

The VFC2000-MT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical and tabular data is provided for analysis and can be viewed using the software which supports customizable engineering units.

Specifications

General

Memory	16,128 readings (all channels enabled)
Reading Rate	1 reading every second up to 1 reading every 24 hours
Cold Junction Compensation	Automatic based on internal channel
Battery Life	3 years typical at 1 minute reading rate
Material	ABS Plastic
Dimensions	3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	USB to Mini USB Cable
Weight	1.1250 LBS
Baud Rate	250,000

Temperature

Internal Channel Temperature Sensor	Semiconductor
Internal Channel Temperature Range	-20 °C to 60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution	0.01 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy	±0.5 °C (0 °C to +50 °C)

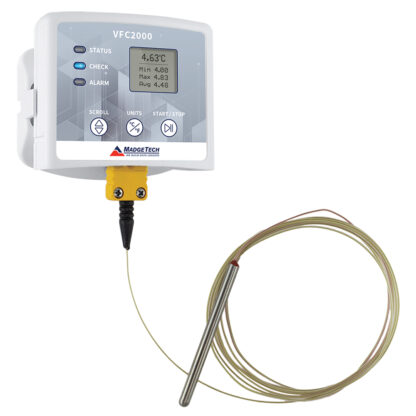

Remote Channel Temperature Sensor	Type K Thermocouple (Included)
Remote Channel (Thermocouple) Temperature Range	-100 °C to +80 °C (-148 °F to +176 °F)
Remote Channel (Glycol Bottle) Temperature Range	-50 °C to +80 °C (-58 °F to +176 °F)
Remote Channel Temperature Resolution	0.1 °C (0.18 °F)
Remote Channel Temperature Calibrated Accuracy	±0.5 °C
