Description
Thermocouple Probe Assembly for 30ml, 60ml and 250ml Glycol Bottles.
Thermocouple Probe Assembly for Glycol Bottle
General
| Probe Type | Type K, Thermocouple |
| Temperature Range (Glycol Bottle Dependant) | -50 °C to +80 °C (-58 °F to +176 °F) |
| Accuracy | ±1.1 °C |
| Resolution | 0.1 °C |
| Sheath Material | Stainless Steel Sheath |
| Sheath Length | 2.5 inches, 3 inches or 4.5 inches |
| Sheath Temperature Range | 232 °C (450 °F) |
| Lead Wire Material | PFA-Insulated Wire |
| Lead Wire Temperature Range | 260 °C (500 °F) |
| Cable Length | 72 inches |
Accessories
-

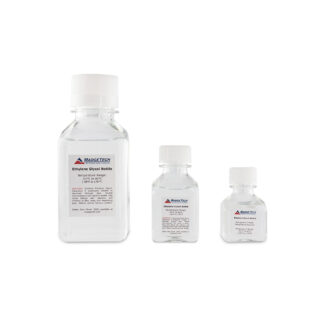

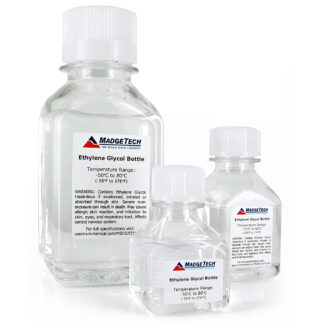

Ethylene Glycol Bottle
$12.00 – $20.00 Select options This product has multiple variants. The options may be chosen on the product page
Part Numbers
Thermocouple Probe Assembly for a 30mL Glycol Bottle — 901605-00
Thermocouple Probe Assembly for a 60mL Glycol Bottle — 901606-00
Thermocouple Probe Assembly for a 250mL Glycol Bottle — 901604-00
Literature
| Thermocouple Specification Sheet |
