Glycol Bottle with Thermocouple Probe Assembly

Glycol Bottle 30mL TC
Glycol Bottle 30mL TC Probe
Glycol Bottles
Glycol Bottle 30mL TC
Glycol Bottle 30mL TC Probe
Glycol Bottles

30ml, 60ml and 250ml Glycol Bottles.

Find a Distributor

$85.00 – $105.00

Description

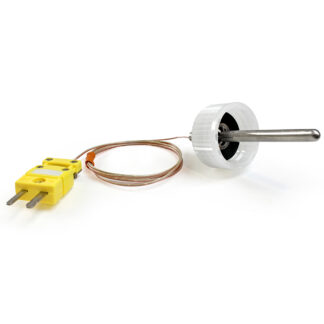

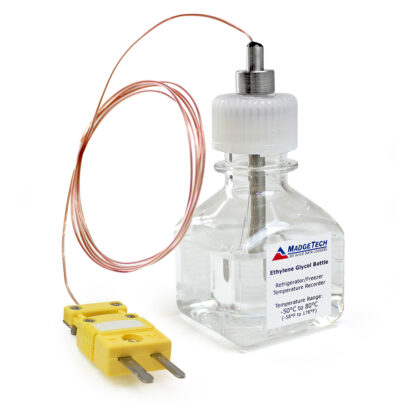

30ml, 60ml and 250ml Glycol Bottles with Thermocouple Probe Assembly

General

Probe TypeType K, Thermocouple
Temperature Range
(Glycol Bottle Dependant)		-50 °C to +80 °C (-58 °F to +176 °F)
Accuracy±1.1 °C
Resolution0.1 °C
Sheath MaterialStainless Steel Sheath
Sheath Length2.5 inches, 3 inches or 4.5 inches
Sheath Temperature Range232 °C (450 °F)
Lead Wire MaterialPFA-Insulated Wire
Lead Wire Temperature Range260 °C (500 °F)
Cable Length72 inches

Literature

Thermocouple Specification Sheet
DOC-5034009-00

Glycol Safety Data Sheet

Part Numbers

Glycol Bottle with Thermocouple Probe Assembly (250ml) — 900109-00 Glycol Bottle with Thermocouple Probe Assembly (60ml) — 900123-00 Glycol Bottle with Thermocouple Probe Assembly (30ml) — 900115-00
