The ThermoVaultX is an oven temperature profiling system. Read More >

System Includes:

  • TCTempX Thermocouple-Based Temperature Data Logger
  • Thermal Insulated Enclosure
  • Type K Thermocouples


MadgeTech recommends annual calibration.


The ThermoVaultX Includes:

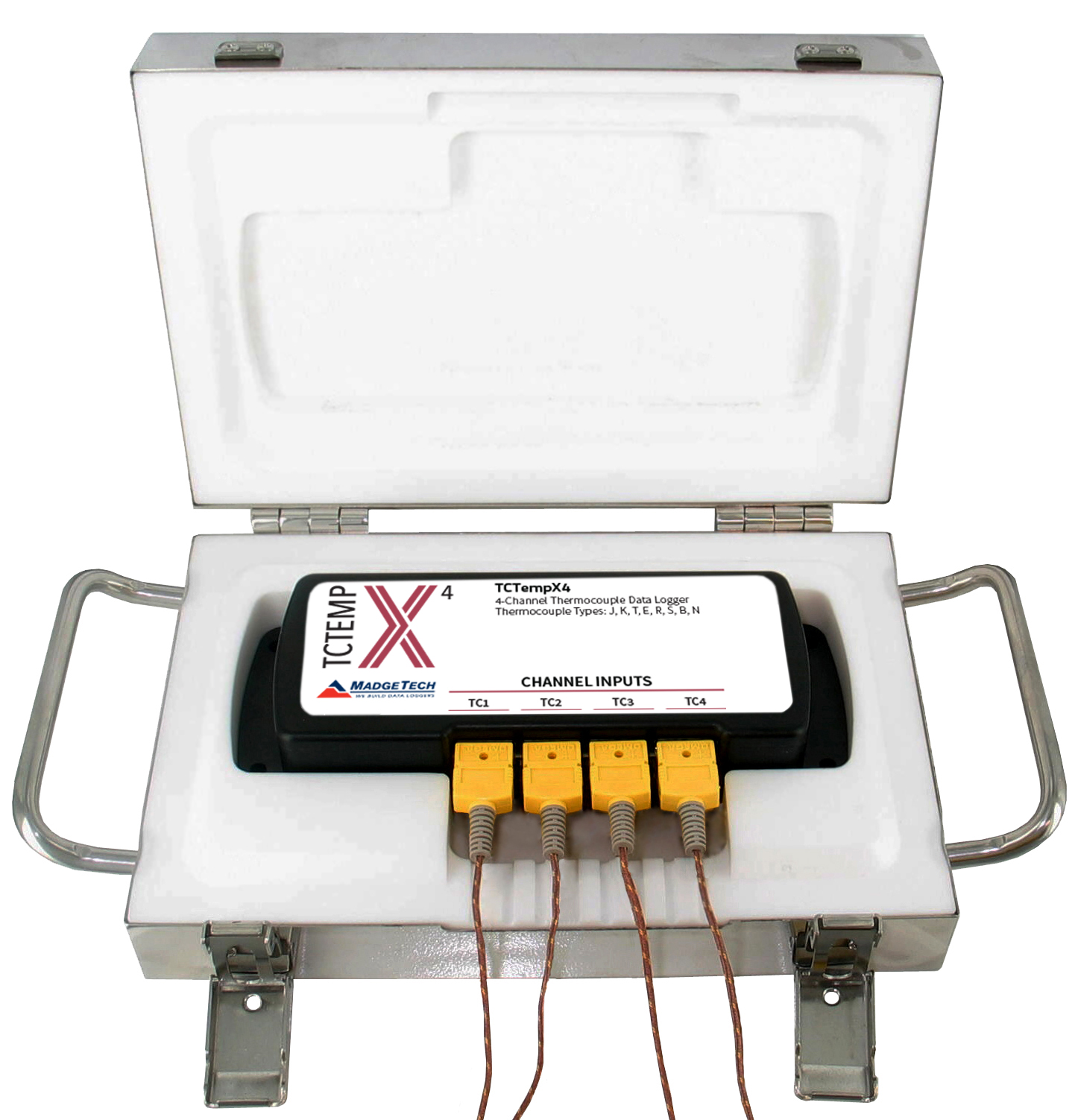

(1) TCTempX: Thermocouple-Based Temperature Data Logger
(1) Thermally Insulated Enclosure
(1) Type K Thermocouple

The ThermoVaultX represents an advanced temperature data logging system designed for oven profiling, featuring thermal insulation and relying on thermocouples. This robust device exhibits remarkable resilience, capable of enduring oven temperatures reaching 350°C (662°F) for a duration of up to 30 minutes when properly sealed. Its construction incorporates a stainless steel enclosure along with external thermocouple probes, ensuring precise temperature measurements with rapid response times.

Moreover, the ThermoVaultX seamlessly integrates with the latest MadgeTech 4 Software, simplifying tasks such as initiating, halting, and retrieving data. The software furnishes a user-friendly interface that offers graphical, tabular, and summary data for in-depth analysis, and allows for the customization of units for viewing engineering data.


Memory4-Channel: 524,032 readings per channel
8-Channel: 262,016 readings per channel
Reading Rate 4 Hz up to 1 reading every 24 hours
Baud Rate460,800 baud
Cold Junction Compensation Automatic
Channels4-Channel: 4 Internal & 4 Remote
8-Channel: 8 Internal & 8 Remote
Battery Life 18 months typical
Dimensions9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm)
[Enclosure case only. Excludes handles, brackets and

12.3 in x 6.65 in x 2.45 in (312 mm x 168 mm x 62 mm)
[Includes handles, brackets and front enclosure
Operating Environment See Data Sheet, 0 %RH to 95 %RH, non-condensing
Required Interface Package USB-A to micro USB cable


Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (0 °C to 50 °C)
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent


ThermoVaultX Product User Guide
ThermoVaultX Specification Sheet

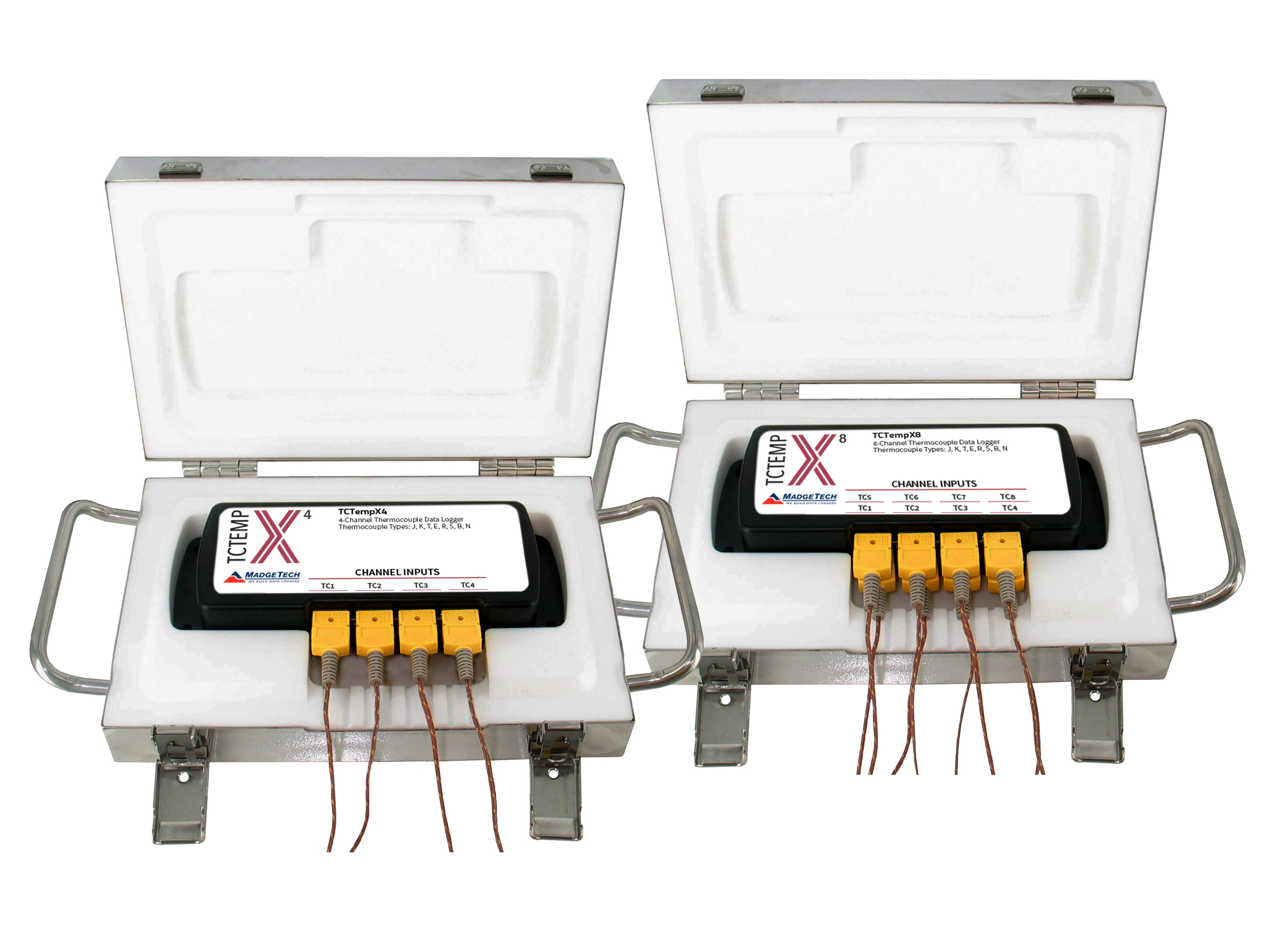

Part Numbers

ThermoVaultX4 — 901350-00

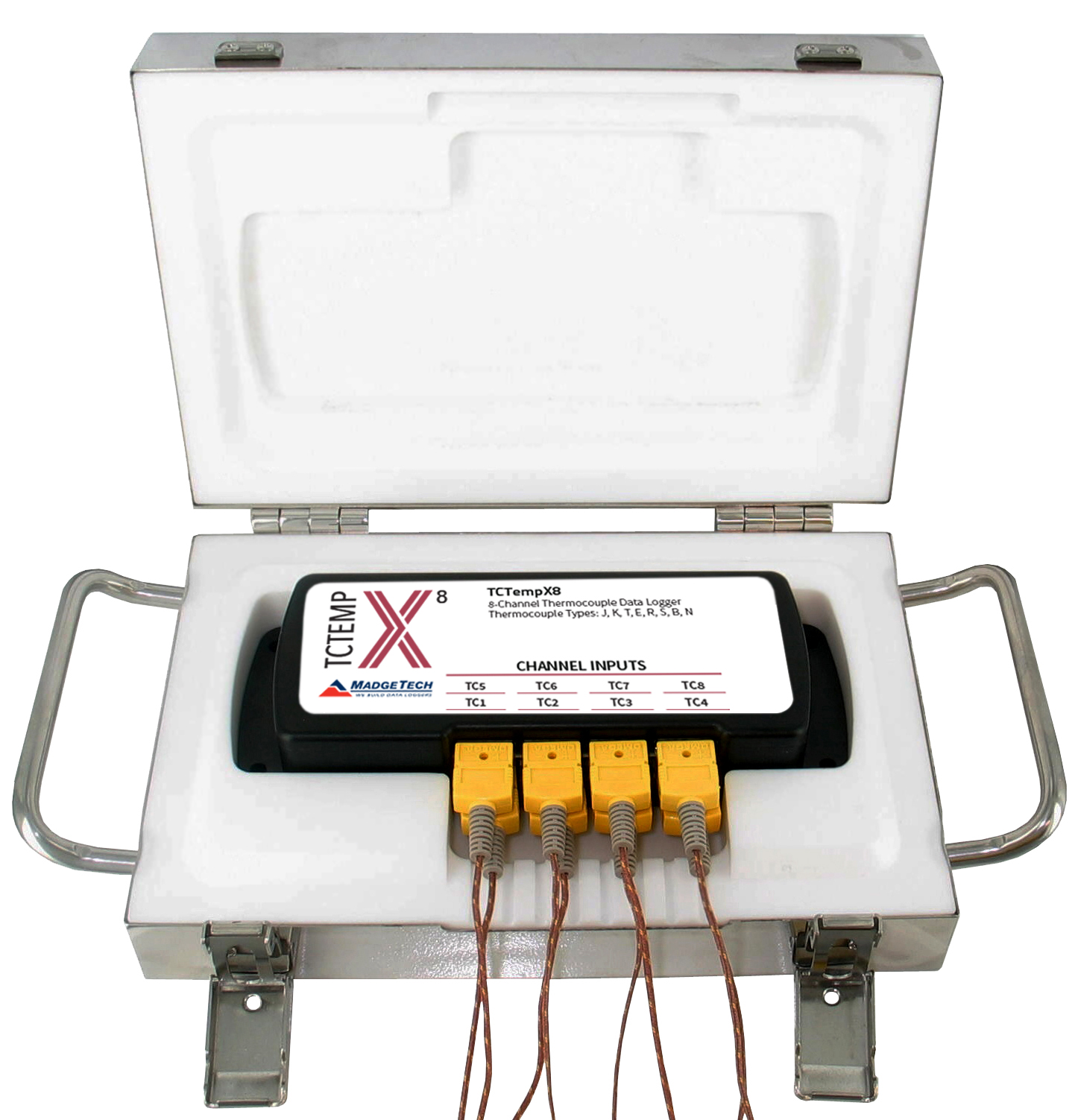

ThermoVaultX8 – 900437-00
