RFTemp2000A

Wireless CommunicationMadgeTech Cloud ReadyLCD DisplayLED IndicatorBattery Life IndicatorReal Time Monitoring

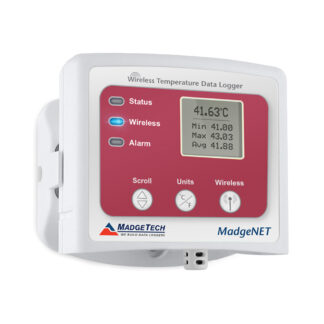

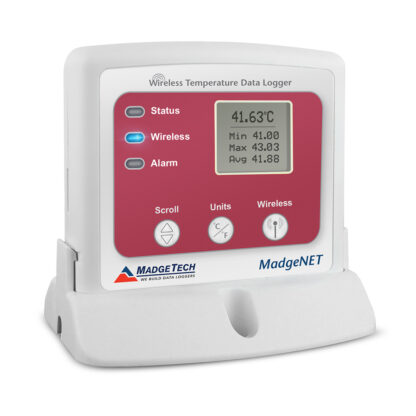

The RFTemp2000A is a wireless ambient temperature data logger. Includes ISO17025 accredited calibration certificate.

Availability: 5-7 Business Days

$309.00$355.39

Clear
Extended Warranty

Description

The RFTemp2000A is a wireless ambient temperature data logger.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.
Please see data sheet for a list of countries approved for use, purchase and distribution.



General

Memory32,256 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED IndicatorsGreen, Blue & Red
Battery Life5 years typical at a 1 minute reading rate
MaterialABS plastic
Dimensions3.25 in x 3.5 in x 0.95 in (82.6 mm x 88.9 mm x 24.1 mm) - Data logger only
IP RatingIP22
Operating Environment-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageRFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature SensorInternal Semiconductor
Internal Channel Temperature Range-20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy±0.5 °C

Wireless

RF Carrier Frequency2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power+0 dBm typical
Receiver Sensitivity-95 dBm typical
Typical outdoors Line of sightUp to 2000 ft
Typical Indoors line of sightUp to 500 ft

Literature

RFTemp2000A Data Sheet

RFTemp2000A Product User Guide

Add-Ons
