RFRHTemp2000A

The RFRHTemp2000A is a wireless temperature and humidity data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications

$349.00

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

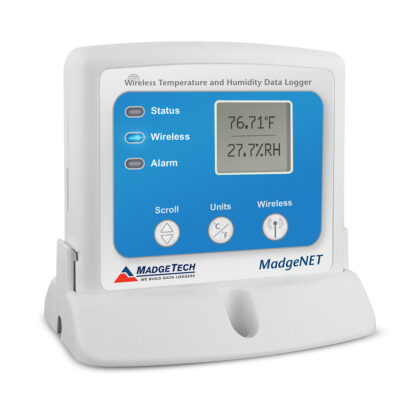

The RFRHTemp2000A is a wireless temperature and humidity data logger. Designed with external humidity and RTD-based temperature sensors, the RFRHTemp2000A provides a fast response time for both parameters.

This device features an LCD screen that provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFRHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFRHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFRHTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet-enabled device.

Note: RFC wireless interface required.

General

Memory16,128 readings (all channels enabled)
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Indicators Green, Blue & Red
Battery Life 3 years typical at a 1 minute reading rate
MaterialABS plastic
Dimensions3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating IP22
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing
Required Interface Package RFC1000
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Countries approved for use, purchase and distributionAustralia, Austria, Belgium, Bulgaria, Canada, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

Temperature

Internal Channel Temperature Sensor Resistance Temperature Detector (RTD)
Internal Channel Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (0 °C to 55 °C)

Humidity

Humidity Sensor Relative Humidity Sensor
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3.0 %RH
Specified Accuracy Range25 %RH to 75 %RH; +20 °C to +40 °C
Hysteresis Error 1 % typical, 3 % Maximum

Wireless

RF Carrier Frequency 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
RF Baud Rate 250,000
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical outdoors Line of sight Up to 2,000 ft
Typical Indoors line of sight Up to 500 ft

Literature

RFRHTemp2000A Specification Sheet

RFRHTemp2000A Product User Guide

Support Videos

RFRHTemp2000A | Live Overview

RFRHTemp2000A | Channel Programming

RFRHTemp2000A | Offline Operation

RFRHTemp2000A |ST79: 2017 Compliance

Accessories

Part Numbers

RFRHTemp2000A — 901423-00

The RFRHTemp2000A replaces the following products:
Therm-A-Lert-P (1″) — 901701-00
Therm-A-Lert-RH — 901718-00
Therm-A-Lert — 901694-00
