The RFPulse2000A is a wireless pulse data logger. Includes declaration of conformance. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications



Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

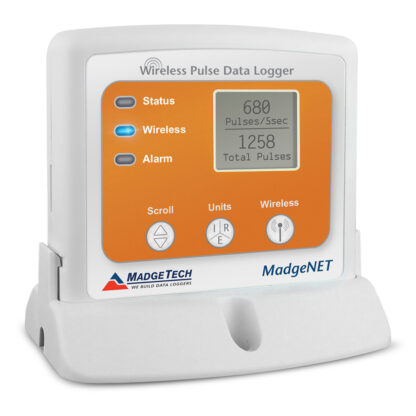

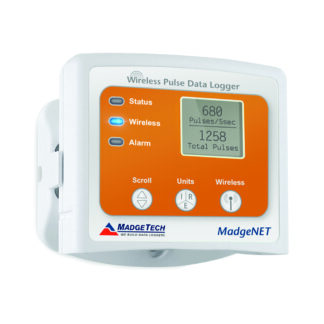

The RFPulse2000A is a wireless data logger that records pulse output signals from a variety of sensors. The RFPulse2000A is unique in that it not only calculates pulse count, but it also calculates pulse rate.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPulse2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFPulse2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFPulse2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.


Memory16,128 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED IndicatorsGreen, Blue & Red
Battery Life5 years typical at a 10 minute reading rate
MaterialABS plastic
Dimensions3.5 in x 3.0 in x 0.95 in (88.9 mm x 76.2 mm x 24.1 mm) - Data logger only
IP RatingIP22
Operating Environment-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageRFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)


Maximum Pulse Rate10 KHz
Pulse Input Range0 to 4294967295 Pulses
Pulse Input Low<720 mV
Pulse Input High>1.070 V


RF Carrier Frequency2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power+0 dBm typical
Receiver Sensitivity-95 dBm typical
Typical outdoors Line of sightUp to 2000 ft
Typical Indoors line of sightUp to 500 ft


RFPulse2000A Specification Sheet

RFPulse2000A Product User Guide

Support Videos

RFPulse2000A | Live Overview

RFPulse2000A | Channel Programming

RFPulse2000A | The Difference Between State, Event & Pulse


Part Numbers

RFPulse2000A — 901420-00
