The RFPRHTemp2000A is a wireless pressure, humidity and temperature data logger. Includes standard calibration certificate. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications



Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

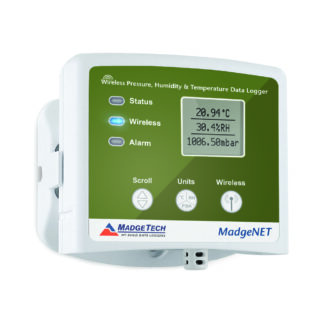

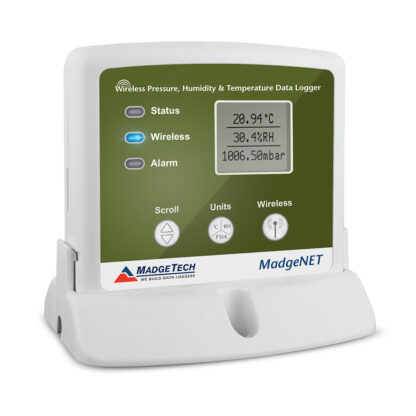

The RFPRHTemp2000A is a wireless pressure, humidity and temperature data logger. It’s the all-in-one solution for monitoring and maintaining critical conditions.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPRHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFPRHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFPRHTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.


Memory10,752 readings (all channels enabled)
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED Functionality

  • Green LED blinks every 5 seconds to indicate unit is logging

  • Blue LED blinks every 15 seconds to indicate unit is in wireless mode
  • Red LED blinks every 1 second to indicate alarm condition

Battery Life5 years typical at a 15 minute reading rate
MaterialABS plastic
Dimensions3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP RatingIP22
Operating Environment-20 °C to +60 °C (-4 °F to +140 °F),
0 %RH to 95 %RH non-condensing,
0.002 PSIA to 100 PSIA
Required Interface PackageRFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)


Internal Channel Temperature SensorResistance Temperature Detector (RTD)
Internal Channel Temperature Range-20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy±0.5 °C (+5 °C to +55 °C)


Humidity SensorRelative Humidity Sensor
Humidity Range0 %RH to 95 %RH
Humidity Resolution0.1 %RH
Humidity Calibrated Accuracy±3 %RH


Pressure SensorSilicon
Pressure Range250 mbar to 1300 mbar
Pressure Resolution0.02 mbar
Pressure Calibrated Accuracy10 mbar (+5 °C to +55 °C)


RF Baud Rate250,000
Output Power+0 dBm typical
Receiver Sensitivity-95 dBm typical
Typical outdoors Line of sightUp to 2000 ft
Typical Indoors line of sightUp to 500 ft


RFPRHTemp2000A Specification Sheet

RFPRHTemp2000A Product User Guide

Support Videos

RFPRHTemp2000A | Live Overview

RFPRHTemp2000A | Channel Programming


Part Numbers

RFPRHTemp2000A — 901415-00
