RFCO2RHTemp2000A

(1 customer review)

The RFCO2RHTemp2000A is a wireless CO2, humidity and temperature data logger. Includes ISO/IEC 17025 accredited calibration certificate. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications
(1 customer review)

$769.00

MadgeTech recommends annual calibration.

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The RFCO2RHTemp2000A is a wireless data logger that measures and records carbon dioxide, humidity and temperature. It’s the all-in-one solution for acquiring a complete environmental profile.

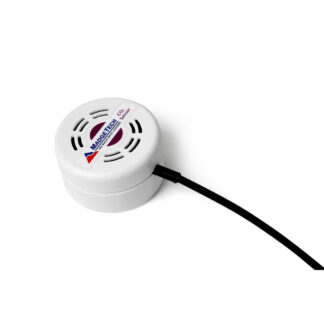

The RFCO2RHTemp2000A comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement within enclosed environments. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCO2RHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFCO2RHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFCO2RHTemp2000A is MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.

General

Memory10,752 readings (all channels enabled)
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED IndicatorsGreen, Blue & Red
Battery Life16 months typical at a 10 minute reading rate
MaterialABS plastic
DimensionsData logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm)
Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm)
Cable Length: 16 ft (192 in)
IP RatingIP22
Operating Environment0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH, 13.77 PSIA to 100 PSIA
Required Interface PackageRFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature SensorSilicon
Internal Channel Temperature Range0 °C to +55 °C (+32 °F to +131 °F)
Internal Channel Temperature Resolution0.08 °C (0.144 °F)
Internal Channel Temperature Calibrated Accuracy±1.0 °C

Humidity

Humidity SensorSilicon
Humidity Range0 %RH to 95 %RH
Humidity Resolution0.08 %RH
Humidity Calibrated Accuracy±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise

Carbon Dioxide

Carbon Dioxide Range0 ppm to 200,000 ppm
Carbon Dioxide Resolution10 ppm
Carbon Dioxide Accuracy70 ppm ± 5% of the reading

Wireless

RF Baud Rate250,000
Output Power+0 dBm typical
Receiver Sensitivity-95 dBm typical
Typical outdoors Line of sightUp to 2000 ft
Typical Indoors line of sightUp to 500 ft

Literature

RFCO2RHTemp2000A Product User Guide
RFCO2RHTemp2000A Specification Sheet

Support Videos

RFCO2RHTemp2000A | Product Overview

RFCO2RHTemp2000A | Channel Programming

Accessories

Part Numbers

RFCO2RHTemp2000A — 901391-00

1 review for RFCO2RHTemp2000A

  1. [email protected]

    great data logger for the price the only issue we have so far, is that when replacing the battery, the logger needs to be started using the software. This is inconvenient for us as we have deployed these units in our high hygene areas ( we are a food packaging plant) and we need to remove the logger from the floor, take is back to the office, start the logger, then return it to the high hygene floor, resanatize it and then put it back where it belongs. Would be so much simpler if we could just replace the battery while it is on the floor and the unit would automatically restart logging the data.

    Overall its a good unit so we are happy with the purchase, just wish there was a better (automated) way to restart logging data upon battery replacement.
