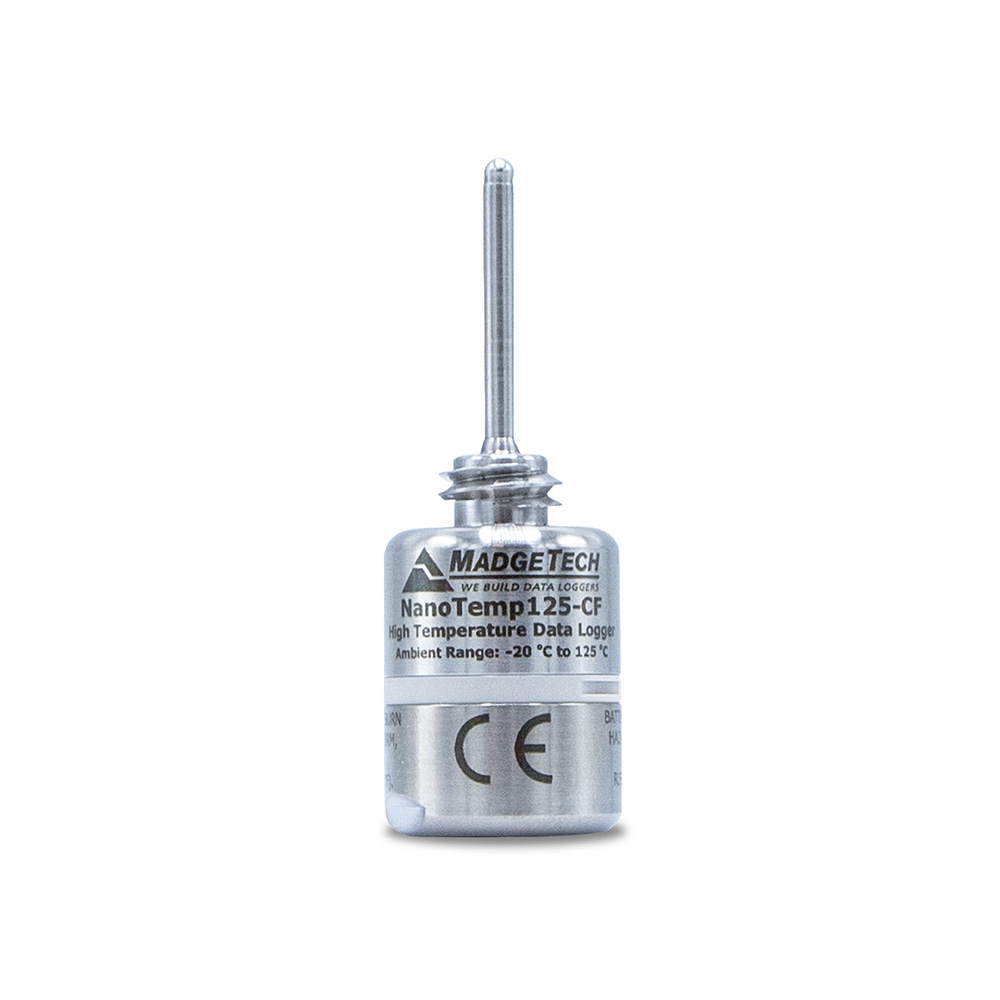

NanoTemp125-CF

The NanoTemp125-CF is ideal for precise heat penetration testing in space-constrained environments and is designed for reliable, in-depth temperature analysis.

Key Features:

  • Miniature and Submersible
  • Compatible with the ThermaLock and CF202 Canning Fittings
  • Measures Temperatures from -40 °C to +125 °C

Availability: 5-7 Business Days

$739.00

Description

The NanoTemp125-CF brings the high-performance capabilities of MadgeTech’s temperature data loggers into an even more compact form, purpose-built for precision in space-constrained canning processes. Crafted from rugged stainless steel, this miniature data logger is fully submersible and engineered for reliable operation in harsh environments, making it ideal for heat penetration and temperature distribution testing in food processing applications.

Designed with a threaded end, the NanoTemp125-CF offers seamless compatibility with both the CF202 and ThermaLock Canning Fittings. It operates at temperatures up to +125 °C (+257 °F) with an accuracy of up to ±0.1 °C (±0.18 °F) and features non-volatile solid state memory to retain readings even if the battery is depleted. The NanoTemp125-CF is the perfect solution for high-accuracy temperature monitoring in small-scale or delicate retort applications, capable of continuous use in both wet and dry environments up to its rated temperature limit.

Literature

NanoTemp125-CF Specification Sheet
NanoTemp125-CF Product User Guide

Part Numbers

NanoTemp125-CF-1.1 – 902462-00
NanoTemp125-CF-1.8 – 902668-00
NanoTemp125-CF-2.1 – 902669-00
NanoTemp125-CF-3.1 – 902671-00
NanoTemp125-CF-3.9 – 902672-00
NanoTemp125-CF-5.4 – 902673-00
