Titan S8

WirelessAll-In-OneMulti-Channel IndicatorTouchscreenRechargeable BatteryReal-Time Monitoring

The Titan S8 is a state-of-the-art, 8-channel data acquisition system. Capable of simultaneously measuring and recording temperature, voltage, current, pulse and frequency, the Titan S8 is an all-in-one solution for any application. Read More >

Key Features:

  • WiFi & Ethernet Enabled
  • Large Touchscreen Control
  • Independent Channel Configuration

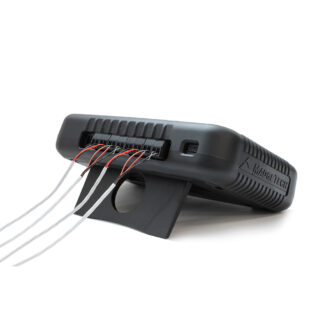

  • Directly Accepts Thermocouple, RTD & Thermistor Probes

Availability: 5-7 Business Days

$999.00

Extended Warranty

Description

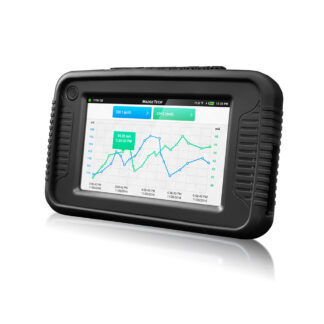

The Titan S8 is an 8-channel, remote access data acquisition logger with a full-color, 5 inch touchscreen interface for real-time monitoring.

This versatile device supports thermocouple, RTD and thermistor probes to measure current, voltage, temperature and pulse. The Titan S8 is an all-in-one solution, allowing users to view all 8 channels simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8 can store up to 5,000,000 readings which can be downloaded to a USB memory device and uploaded to the MadgeTech 4 Software for further analysis.

The handheld Titan S8 provides customizable solutions including channel configurations, engineering units and alarms for benchmark or undesirable readings.

*Due to the versatility of the Titan S8, this device is calibrated to MadgeTech’s standard calibration points.

General

Channels8 channels (Temperature, Current, Frequency, Voltage, Pulse)
Battery Life 10 hours continuous use
MaterialPC / ABS Enclosure, TPE Protective Boot
Dimensions6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen.
IP Rating IP20

Literature

Titan S8 Specification Sheet

Titan S8 Product User Guide

Titan S8 Network Connectivity Guide

Support Videos

Titan S8 | Product Overview

Titan S8 | Channel Configuration

Titan S8 | Setting Up a Session

Titan S8 | Viewing Data

Titan S8 | Managing Stored Data

Titan S8 | Import Data to the MadgeTech Software

Titan S8 | How to Wire an RTD Probe

Titan S8 | FFT in Data Analysis

Accessories

Part Numbers

Titan S8 — 902024-00
