4 Wire 36″ RTD Probe with 6″/12″ Sheath

RTD Probe
RTD Probe
RTD Probe Flat

4 wire, 36″ RTD Probe with 6″/12″ Sheath.

$125.00

Description

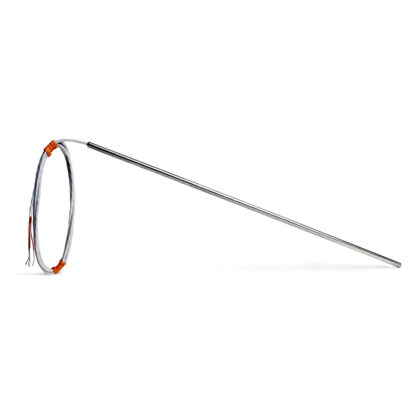

Precision 100 Ω, 4 wire, 36″ RTD probe. Available with a 6″ or 12″ sheath.

General

Probe TypeRTD
Temperature Range-200 °C to +600 °C (-328 °F to +1112 °F)
Accuracy±0.15 °C
Sheath MaterialStainless Steel Probe
Sheath Length6 or 12 inches
Sheath Temperature Range+600 °C (+1112 °F)
2, 3 or 4 Wire RTD4 Wire RTD
Lead Wire MaterialAWG stranded nickel-plated copper, PFA insulated, PFA jacketed cable.
Lead Wire Temperature Range+260 °C (+500 °F)
Cable Length36 inches

Part Numbers

4 Wire 36″ RTD Probe with 6″ Sheath
(RTD Probe with 6″ Sheath) — 901915-00

4 Wire 36″ RTD Probe with 12″ Sheath
(RTD Probe with 12″ Sheath) — 901516-00

The RTD Probe replaces the following:
Rugged RTD Probe (6″)— 901518-00
Rugged RTD Probe (12″) — 901519-00
