Titan S8-CAN

all-in-oneMulti-Channel IndicatorTouchscreenRechargeable BatteryReal Time Monitoring
Sale!

The Titan S8-CAN is a state-of-the-art data acquisition system designed for diesel engines. Capable of simultaneously measuring and recording up to 23 suspect parameter numbers, the Titan S8-CAN is an all-in-one solution for diesel engine testing. Read More >

Key Features:

  • Ability to Monitor and Record SAE J1939 Compliant CAN Messages
  • Display & Record 23 SPN
  • Ideal for Engine, Road & Diagnostic Testing

Availability: 5-7 Business Days

$1,299.00 $999.00

Extended Warranty

Description

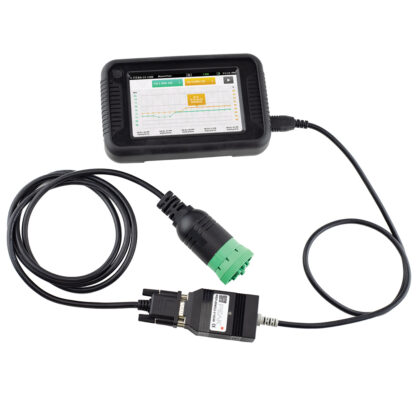

The Titan S8-CAN is a remote access data acquisition logger designed to easily connect to the Controller Area Network (CAN) via its diagnostic port.

This versatile device provides the capability to monitor and record SAE J1939 compliant CAN messages from Tier 1 through Tier 4 final diesel engines. Once connected, the Titan S8-CAN has the ability to display and record up to 23 suspect parameter numbers (SPN) simultaneously during engine, road, and diagnostic testing.

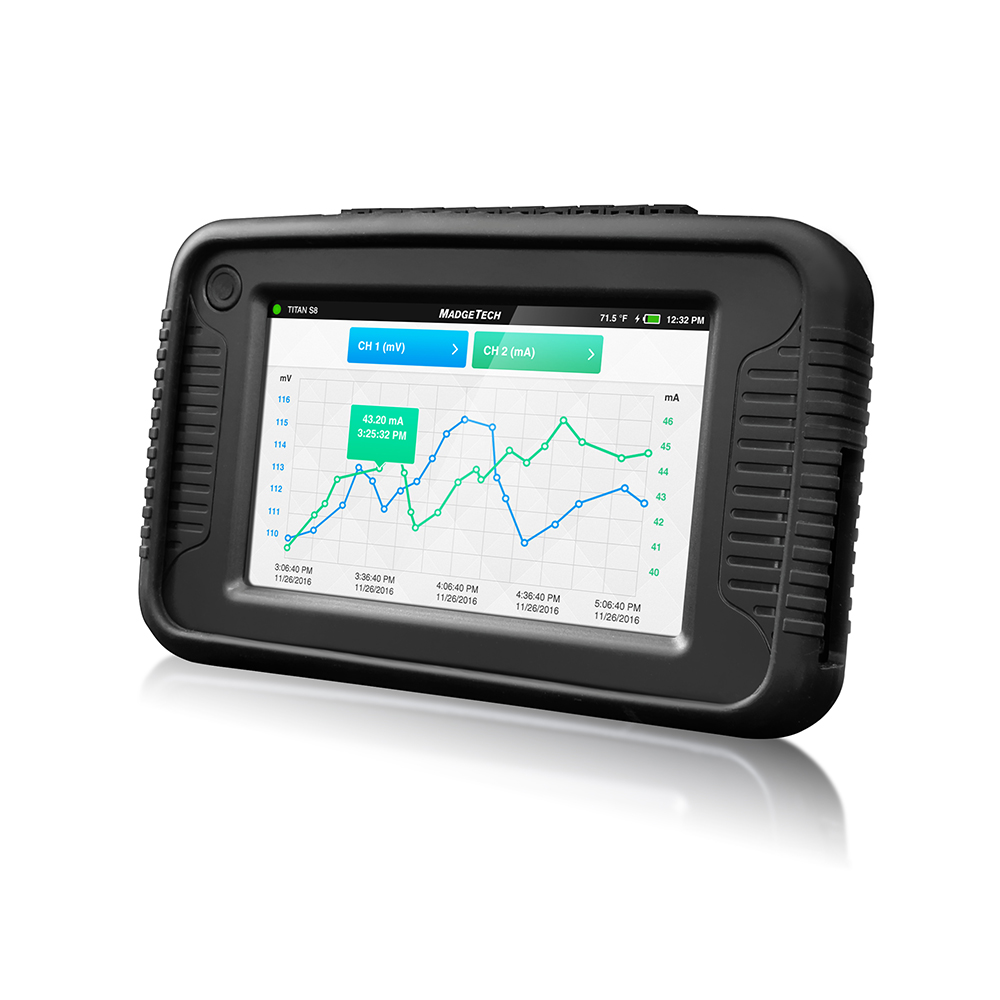

The Titan S8 is an all-in-one solution, allowing users to view and record simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8-CAN can store up to 5,000,000 readings which can be download to a USB for further analysis.

*Due to the versatility of the Titan S8, this device is calibrated to MadgeTech’s standard calibration points.

General

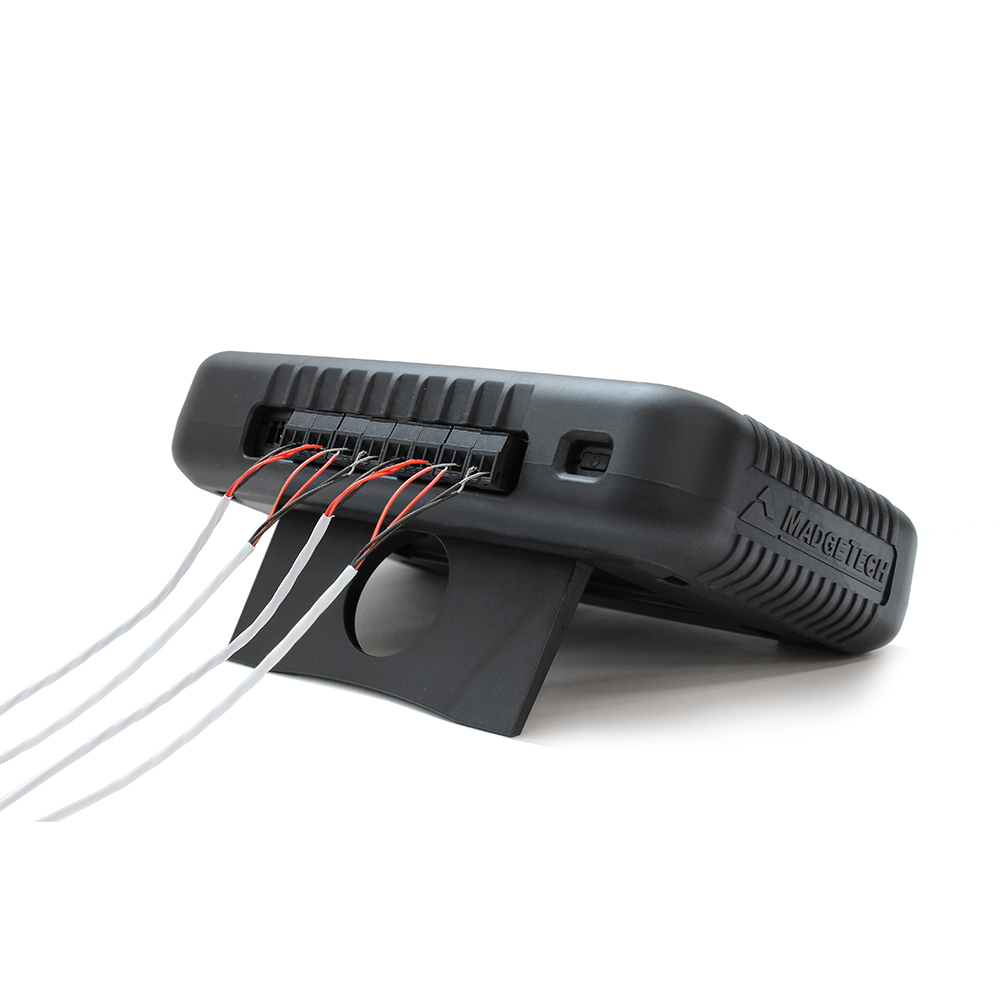

Channels24: 23 can be configured for CAN data. Channel 1 cannot be CAN, and channels 2-8 can be used for direct measurements. If 1-8 are configured for direct measurements, 9-24 can still be CAN channels.
Battery Life 7 to 9 hours continuous use

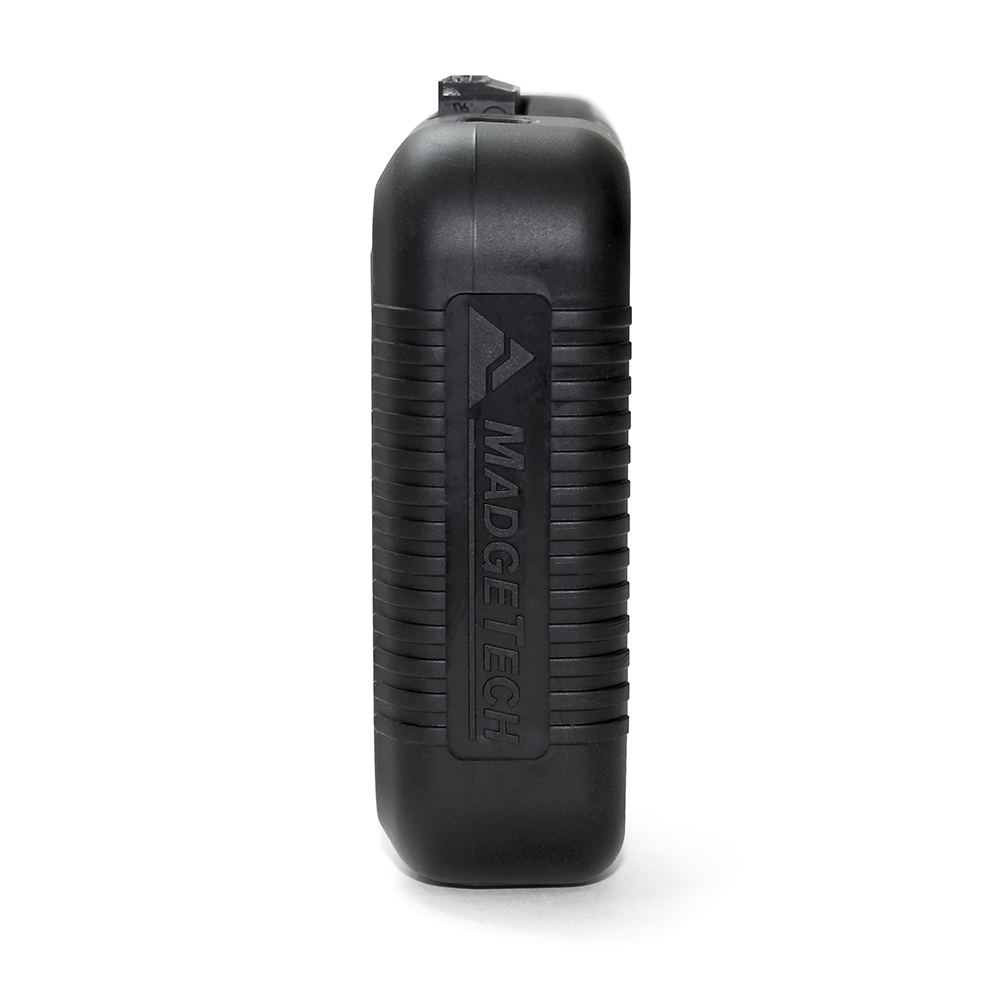

MaterialPC / ABS Enclosure, TPE Protective Boot

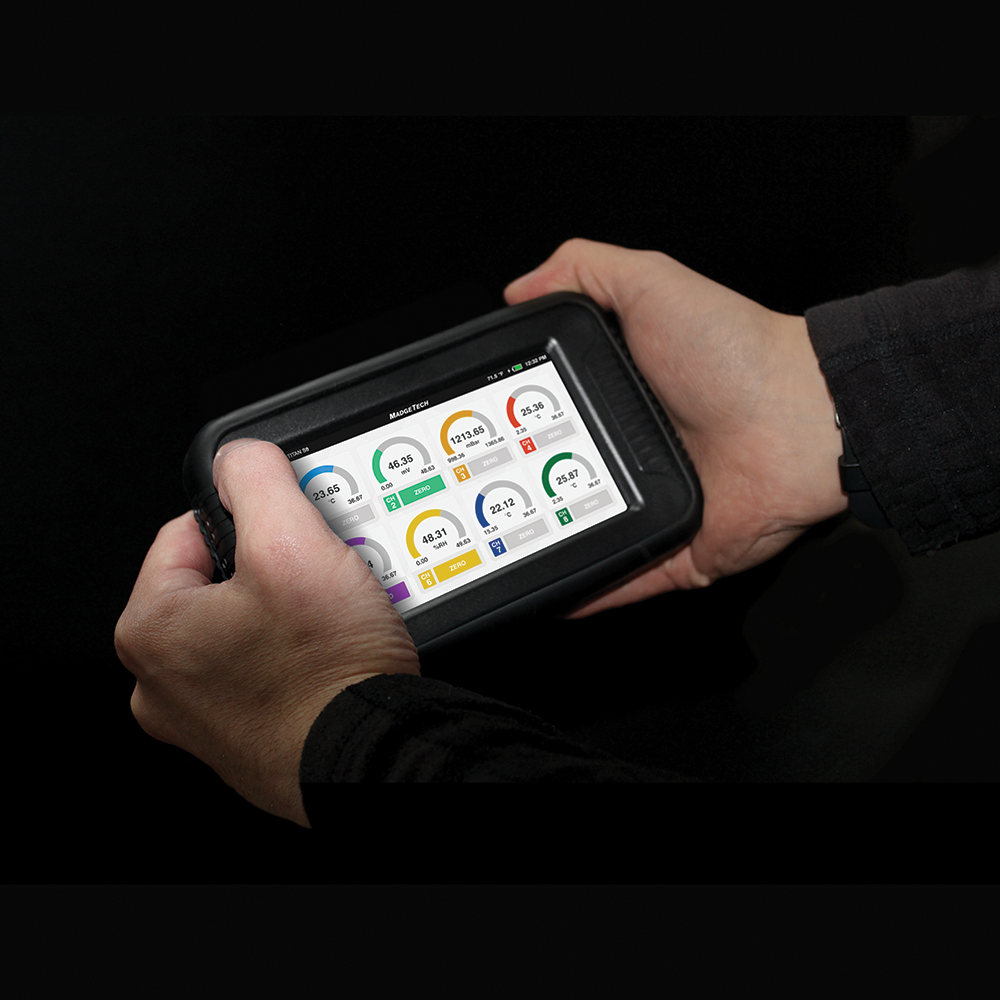

Dimensions6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen.
IP Rating IP20

Literature

Titan S8 CAN Product User Guide

Videos

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

Part Numbers

Titan S8-CAN with 9-Pin Deutsch Connector — 902300-00
Titan S8-CAN with 16-Pin OBDII Connector — 902301-00
