RTDTempX

Multi-Channel Indicator

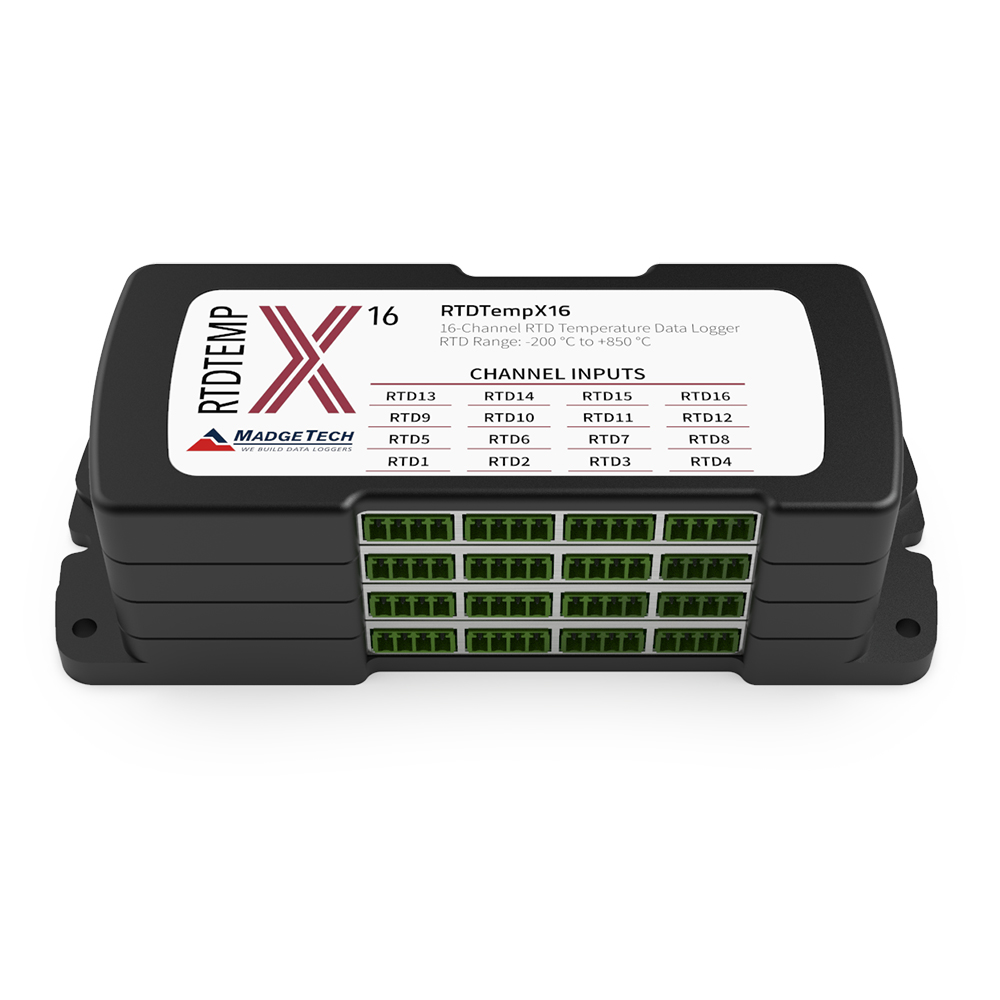

X-Series X16 RTDTemp Photo

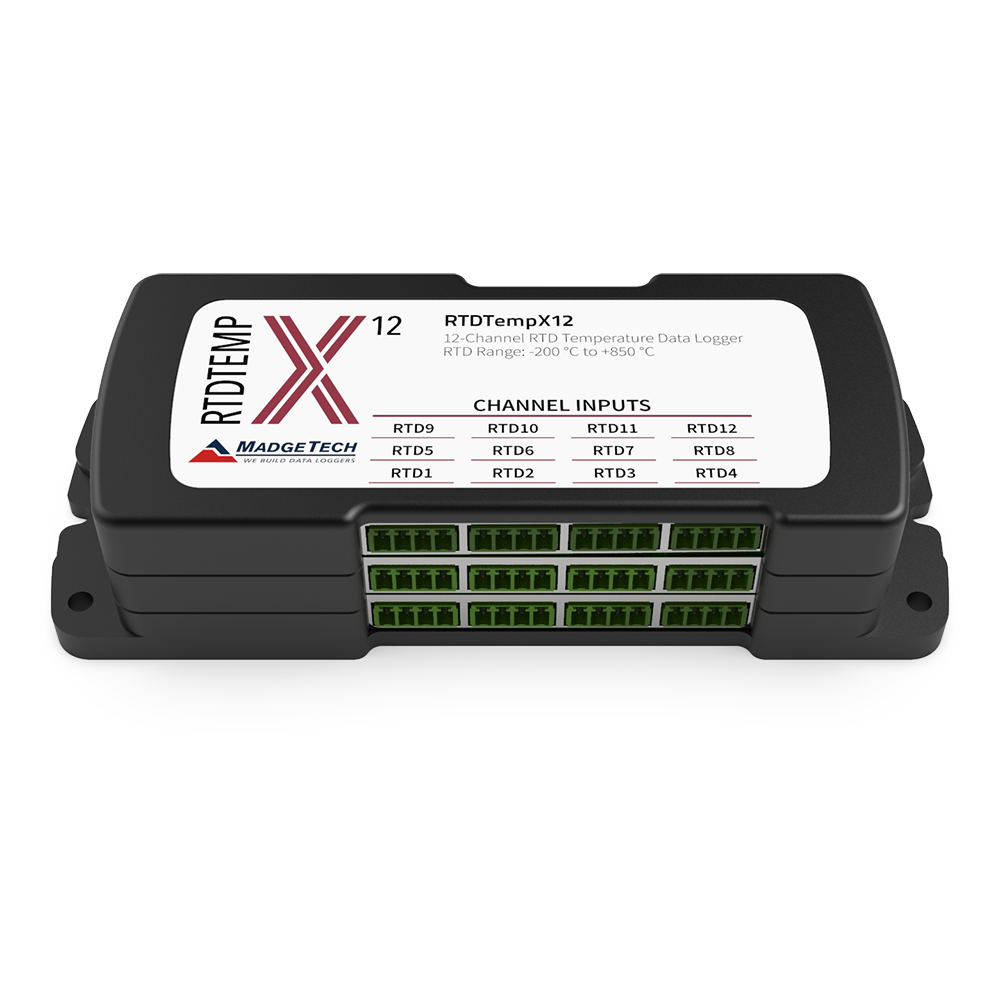

X-Series X12 RTDTemp Photo

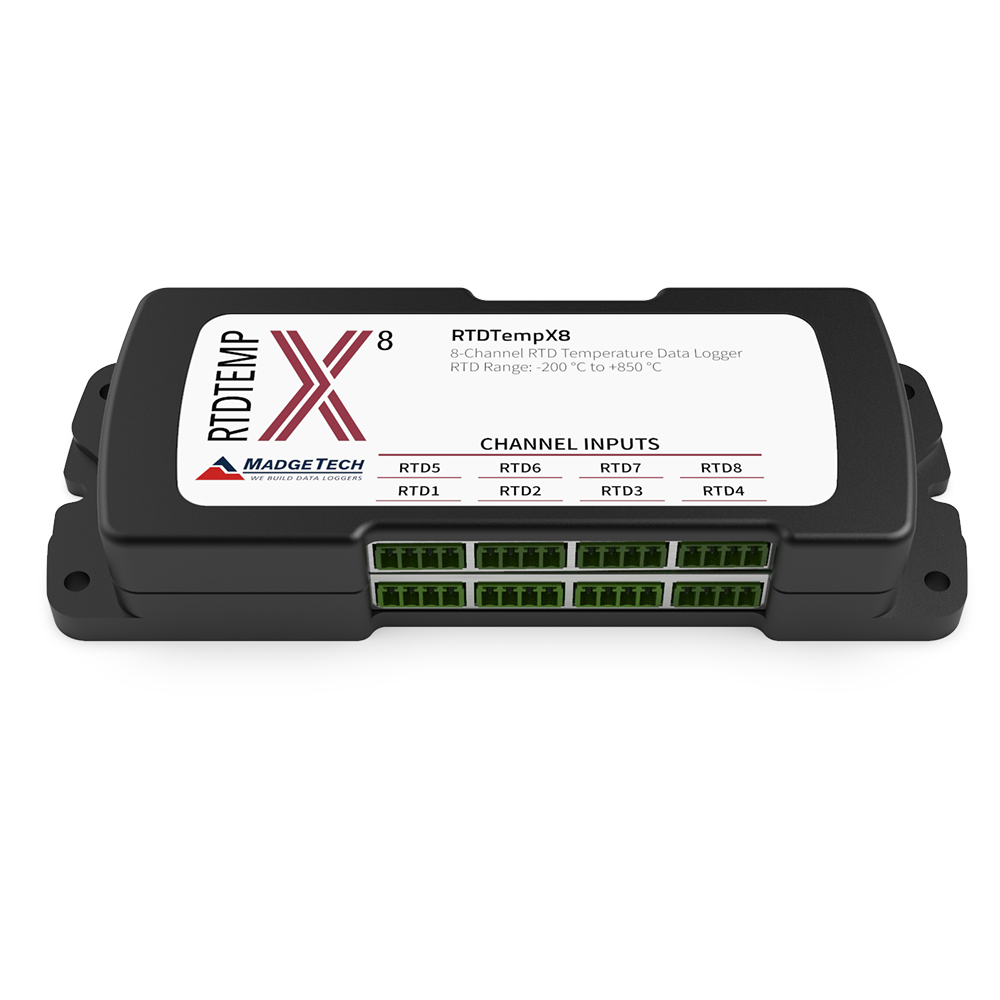

X-Series X8 RTDTemp Photo

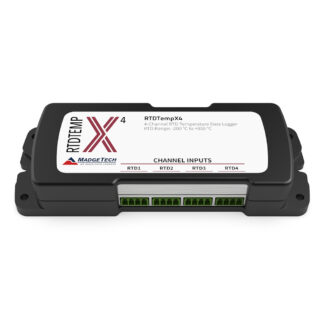

X-Series X4 RTDTemp Photo

The RTDTempX Series includes 4, 8, 12, and 16-channel RTD-based temperature data loggers. Includes standard calibration certificate. Read More >

Key Features:

  • Accepts 2, 3 and 4-Wire RTDs
  • Memory Capacity of 2,700,000+ Readings
  • Measures Temperatures from -200 °C to +850 °C

Availability: 5-7 Business Days

Find a Distributor

$649.00 – $1,599.00

Extended Warranty

Description

The RTDTempX Series includes 4, 8, 12 and 16-channel RTD-based temperature data loggers. This series accepts 2, 3 and 4-wire RTDs to measure and record temperatures from -200 ºC to +850 ºC (-328 ºF to +1562 ºF) with a calibration accuracy of ±0.04 °C (±0.072 °F), all probe dependent.

The RTDTempX Series packs a memory capacity of 2,794,236 readings. To maximize memory capacity, users can enable or disable channels. There’s no interface necessary, the RTDTempX Series uses standard USB-A to Micro USB cable.

The RTDTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory4-channel: 698,709 readings per channel
8-channel: 349,354 readings per channel
12-channel: 232,903 readings per channel
16-channel: 174,677 readings per channel
Reading Rate4 Hz up to 1 reading every 24 hours
Channels4, 8, 12, 16
Battery Life18 Months
MaterialBlack anodized aluminum
Dimensions4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm)
8-channel: 2.70 in x 7.25 in x 1.22 in(65.6 mm x 184.2 mm x 31.0 mm)
12-channel: 2.70 in x 7.25 in x 1.68 in(65.6 mm x 184.2 mm x 42.7 mm)
16-channel: 2.70 in x 7.25 in x 2.14 in(65.6 mm x 184.2 mm x 54.4 mm)
Operating Environment -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing

Temperature

Temperature Sensor External: 2,3, or 4 wire RTD
Temperature Range 18.5 Ω to 390.5 Ω
-200 ºC to +850 ºC (-328 ºF to +1562 ºF)
(Probe Dependent)
Temperature Resolution 0.0001
Ω0.001 °C (0.0018 °F) (Probe Dependent)
Temperature Calibrated Accuracy ±0.015 Ω @ 25 ºC (77 °F) ambient
±0.04 °C (±0.072 °F) (Probe Dependent)

Literature

RTDTempX Series Data Sheet

RTDTempX Series Product User Guide

Videos

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

Accessories

Part Numbers

RTDTempX4 — 902175-00 RTDTempX8 — 902176-00 RTDTempX12 — 902173-00 RTDTempX16 — 902174-00 The RTDTempX Series replaces the following: QuadRTDTempV2 — 902072-00 OctRTDTempV2 — 902073-00
