The HiTemp140X2 series is a dual probe, high temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Submersible
  • Customizable to Support Any Application
  • Capable of Measuring Temperatures up to 350 °C
Find a Distributor

$779.00 – $789.00

Description

The HiTemp140X2 series is a dual probe, high temperature data logger. Featuring a combination of two remote temperature probes, or one ambient and one remote temperature probe combination, the HiTemp140X2 offers extreme flexibility for high temperature monitoring applications.

All HiTemp140X2 data loggers are submersible and capable of measuring temperatures up to +350 °C (662 °F) (probe dependent). The HiTemp140X2 records and stores 16,128 time stamped readings and can be programmed for immediate start or delayed start up to 18 months in advance.

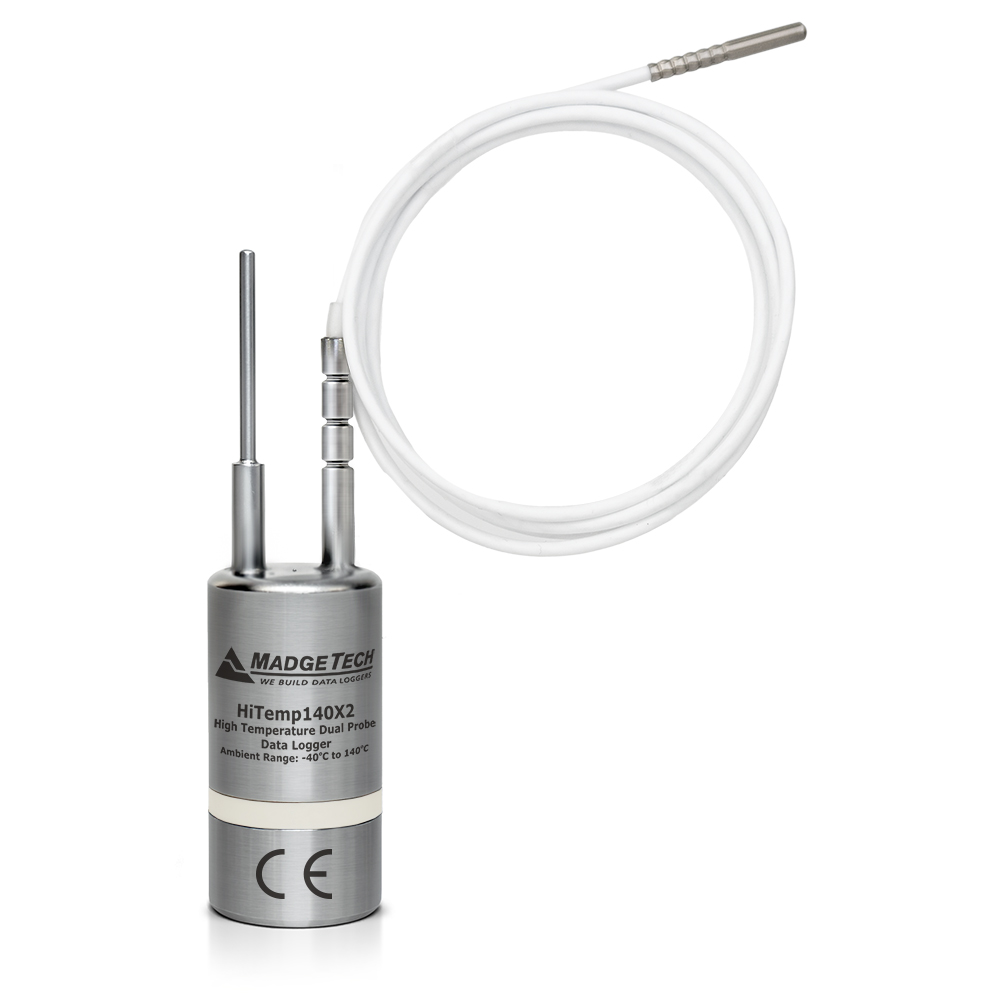

HiTemp140X2-TD models feature a 2 in. rigid, fast response, transitional diameter probe (TD) to measure ambient temperature, combined with a second bendable probe (PT) or a flexible RTD probe (FP) option.

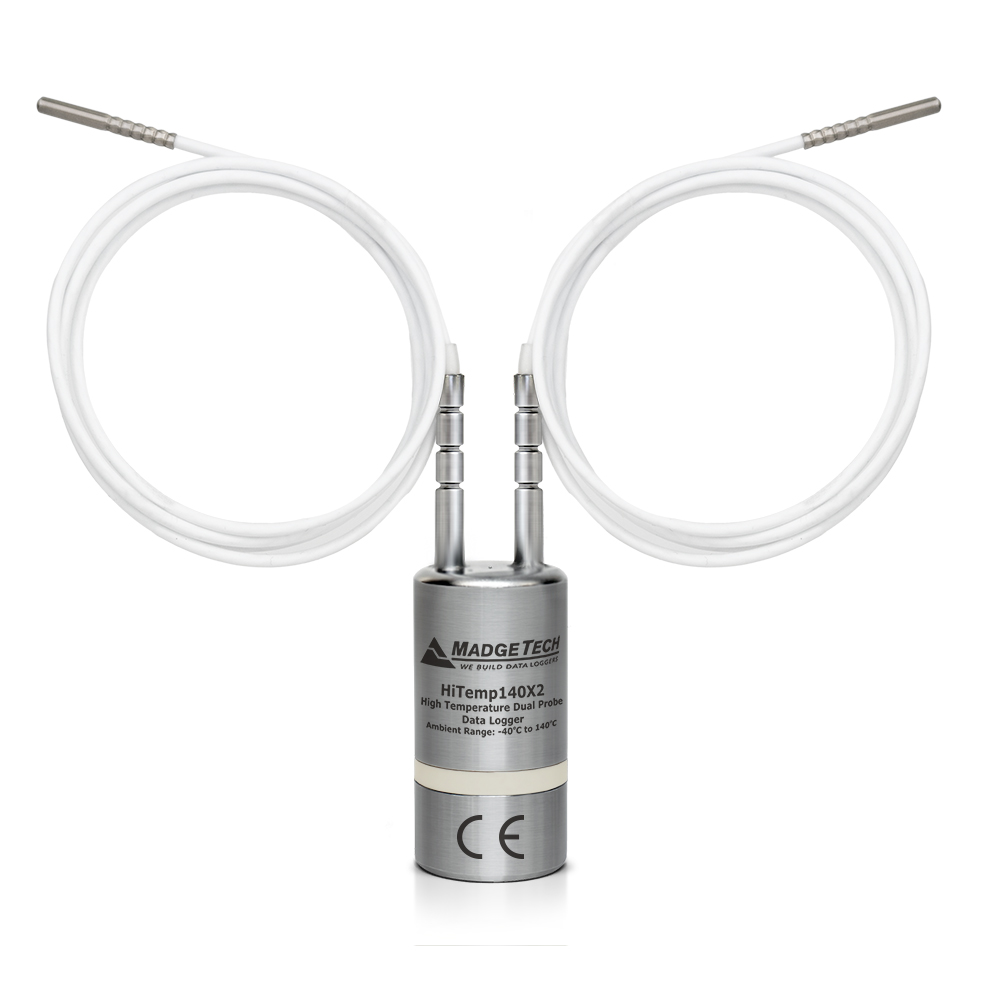

HiTemp140X2-FP models feature a lightweight, flexible RTD probe (FP) with stainless steel tip available in four lengths, combined with a 24 in. bendable probe (PT) with either a 1 or 5 in. probe sheath at the tip, or with two flexible RTD probes (FP) with stainless steel tip.

The HiTemp140X2 series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Contact us to customize this product

General

Memory16,128 readings
Reading Rate1 reading every 1 seconds up to 1 reading every 24 hours
Baud Rate125,000
Battery Life2 years typical (1 minute reading rate)
User Replaceable Battery
MaterialBody: 316 Stainless Steel, Radel
Rigid/Bendable Probe: 316 Stainless Steel
Flexible Probe: PFA Insulated Cable with Stainless Steel Tip
DimensionsBody: 1.89 in x 0.97 in x 0.97 in (48 mm x 24.6 mm x 24.6 mm)

Probes: TD: 2.0 in x 0.125 in dia. with 0.188 in transitional dia. (51 mm x 3.2 mm dia. with 4.8 mm transitional dia.)

PT-1: Probe Tip: 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.), Bendable Portion: 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

PT-5: Probe Tip: 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle), Bendable Portion: 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

FP-6: 6 in x 0.13 in (152 mm x 3.2 mm)
FP-12: 12 in x 0.13 in (305 mm x 3.2 mm)
FP-36: 36 in x 0.13 in (914.4 mm x 3.2 mm)
FP-72: 72 in x 0.13 in (1829 mm x 3.2 mm)
Key Ring End Cap Key ring replaces standard bottom
Thru-hole: 0.150"
IP RatingIP68
SubmersibleYes
Operating Environment-40 °C to +140 °C (-40 °F to +284 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)

Temperature

Temperature SensorRTD Probe (Rigid, Bendable and Flexible styles available)
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.1 °C (0.18 °F)
Probe Temperature RangeRigid Probe: -200 °C to +260 °C (-328 °F to +500 °F)
Bendable Probe: -200 °C to +350 °C (-328 °F to +662 °F)
Flexible Probe: -60 °C to +260 °C (-76 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)

Literature

HiTemp140X2 Specification Sheet
HiTemp140X2 Product User Guide
HiTemp140X2 Flexible Probe Dimensional Drawing
HiTemp140X2 Rigid Transitional Diameter and Flexible Probe Dimensional Drawing
HiTemp140X2 Rigid Transitional Diameter and PT Probe Dimensional Drawing
HiTemp140X2 Flexible Probe and PT Probe Dimensional Drawing
HiTemp140 Probe Types Chart

HiTemp140 Response Time Chart

Support Videos

HiTemp140 | Selecting the Right Probe

HiTemp140 | Changing the Battery

HiTemp140 | Replacing the O-Rings

HiTemp140 | Accessories

Probe Styles

Click here to view this chart including pictures

ExampleProbe TypeMaterialOperating EnvironmentProbe Measurement Range
Rigid Probe for HiTemp140RigidMetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Rigid Transitional Diameter Probe for HiTemp140Rigid Transitional Diameter (TD)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
Flexible Probe for HiTemp140Flexible (FP)Bendable PTFETemperature: -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIATemperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment
PT Probe for HiTemp140PTBendable MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +350 °C (-328 °F to +662 °F)
Probe only. Body must not exceed Operating Environment
Fast Response Probe for HiTemp140Fast Response (FR)MetalTemperature: -40 °C to +140 °C (-40 °F to +284 °F)
Humidity: 0 %RH to 100 %RH
Pressure: 0.002 PSIA to 100 PSIA		Temperature: -200 °C to +260 °C (-328 °F to +500 °F)
Probe only. Body must not exceed Operating Environment

Accessories

Part Numbers

HiTemp140X2-FPST-6 (Two 6 inch flexible probes with stainless steel tips) — 902335-00
HiTemp140X2-FPST-12 (Two 12 inch flexible probes with stainless steel tips) — 902331-00
HiTemp140X2-FPST-24 (Two 24 inch flexible probes with stainless steel tips) — 902333-00
HiTemp140X2-FPST-36 (Two 36 inch flexible probes with stainless steel tips) — 902318-00
HiTemp140X2-FPST-72 (Two 72 inch flexible probes with stainless steel tips) — 902321-00
HiTemp140X2-FPST-6-FPST-12 (6 inch flexible probe and 12 inch flexible probe both with stainless steel tips) — 902334-00
HiTemp140X2-FPST-6-FPST-36 (6 inch flexible probe and 36 inch flexible probe both with stainless steel tips) — 902328-00
HiTemp140X2-TD-FPST-6 (2 inch transitional diameter probe and 6 inch flexible probe with stainless steel tip) — 902338-00
HiTemp140X2-TD-FPST-12 (2 inch transitional diameter probe and 12 inch flexible probe with stainless steel tip) — 902329-00
HiTemp140X2-TD-FPST-36 (2 inch transitional diameter probe and 36 inch flexible probe with stainless steel tip) — 902324-00
HiTemp140X2-TD-FPST-72 (2 inch transitional diameter probe and 72 inch flexible probe with stainless steel tip) — 902325-00
HiTemp140X2-FPST-12-PT-1 (12 inch flexible probe with stainless steel tip and one 24 inch bendable probe with a 1 inch piercing tip) — 902332-00
HiTemp140X2-FPST-36-PT-1 (36 inch flexible probe with stainless steel tip and one 24 inch bendable probe with a 1 inch piercing tip) — 902319-00

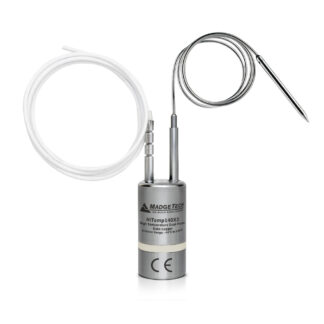

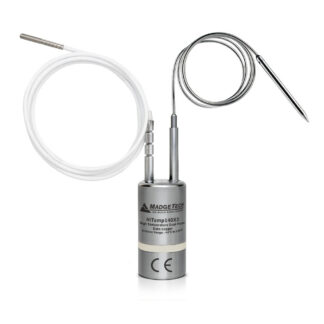

HiTemp140X2-FPST-72-PT-1 (72 inch flexible probe with stainless steel tip and one 24 inch bendable probe with a 1 inch piercing tip) — 902322-00
HiTemp140X2-FPST-36-PT-5 (36 inch flexible probe with stainless steel tip and one 24 inch bendable probe with a 5 inch piercing tip) — 902320-00

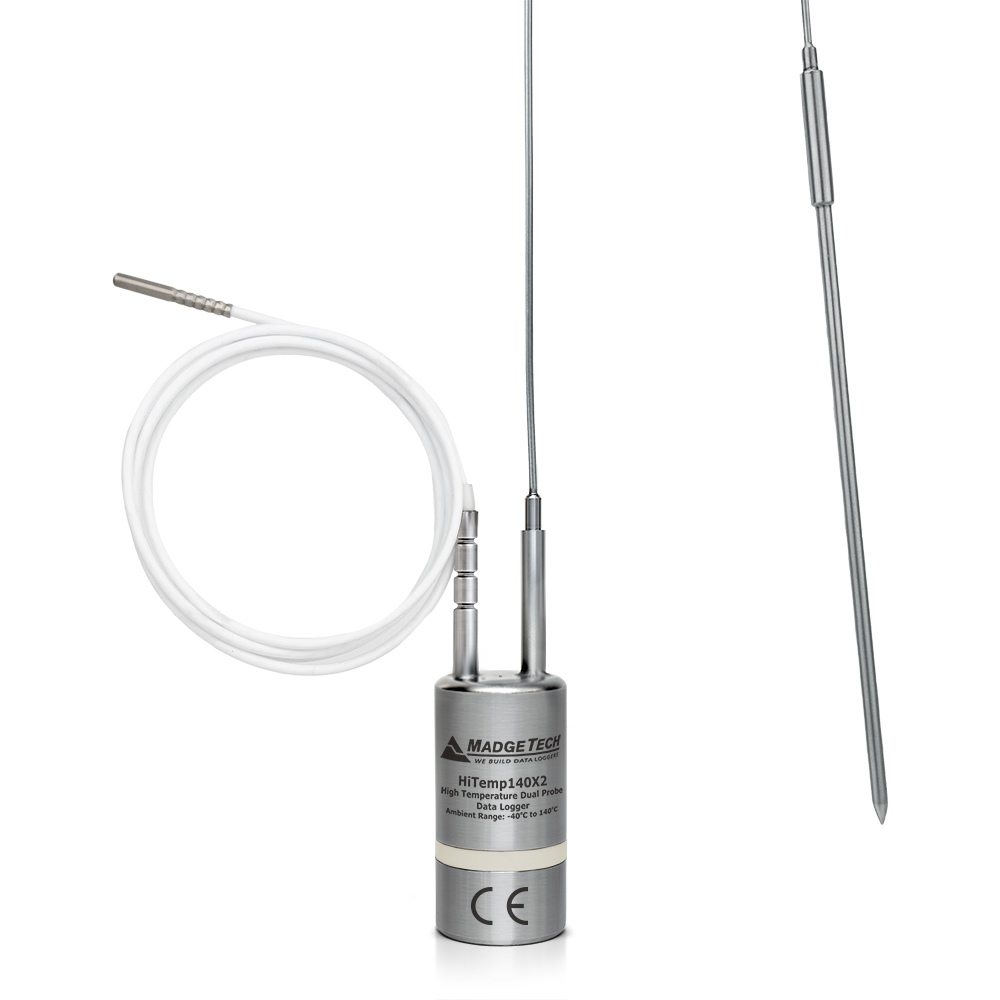

HiTemp140X2-FPST-72-PT-5 (72 inch flexible probe with stainless steel tip and one 24 inch bendable probe with a 5 inch piercing tip) — 902323-00

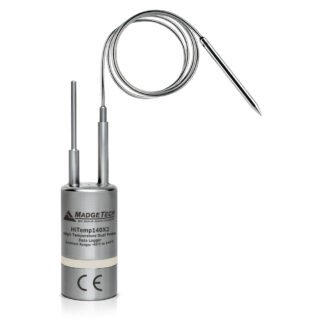

HiTemp140X2-TD-PT-1 (2 inch transitional diameter probe and one 24 inch bendable probe with a 1 inch piercing tip) — 900281-00

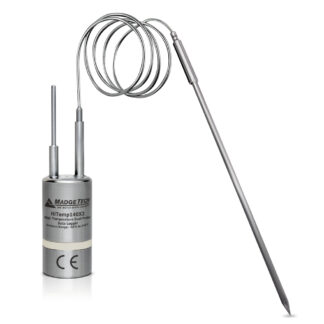

HiTemp140X2-TD-PT-5 (2 inch transitional diameter probe and one 24 inch bendable probe with a 5 inch piercing tip) — 900283-00

The latest version of the HiTemp140X2 replaces the following SKU’s:
HiTemp140X2-FP-6 (Two 6 inch flexible probes) — 902071-00
HiTemp140X2-FP-12 (Two 12 inch flexible probes) — 902008-00
HiTemp140X2-FP-24 (Two 24 inch flexible probes) — 902023-00
HiTemp140X2-FP-36 (Two 36 inch flexible probes) — 900265-00
HiTemp140X2-FP-72 (Two 72 inch flexible probes) — 900271-00
HiTemp140X2-FP-6-FP-12 (6 inch flexible probe and 12 inch flexible probe) — 902070-00
HiTemp140X2-FP-6-FP-36 (6 inch flexible probe and 36 inch flexible probe) — 901894-00
HiTemp140X2-TD-FP-6 (2 inch transitional diameter probe and 6 inch flexible probe) — 902139-00
HiTemp140X2-TD-FP-12 (2 inch transitional diameter probe and 12 inch flexible probe) — 901913-00
HiTemp140X2-TD-FP-36 (2 inch transitional diameter probe and 36 inch flexible probe) — 900277-00
HiTemp140X2-TD-FP-72 (2 inch transitional diameter probe and 72 inch flexible probe) — 900279-00
HiTemp140X2-FP-12-PT-1 (12 inch flexible probe and one 24 inch bendable probe with a 1 inch piercing tip) — 902022-00
HiTemp140X2-FP-36-PT-1 (36 inch flexible probe and one 24 inch bendable probe with a 1 inch piercing tip) — 900267-00
HiTemp140X2-FP-72-PT-1 (72 inch flexible probe and one 24 inch bendable probe with a 1 inch piercing tip) — 900273-00
HiTemp140X2-FP-36-PT-5 (36 inch flexible probe and one 24 inch bendable probe with a 5 inch piercing tip) — 900269-00
HiTemp140X2-FP-72-PT-5 (72 inch flexible probe and one 24 inch bendable probe with a 5 inch piercing tip) — 900275-00
