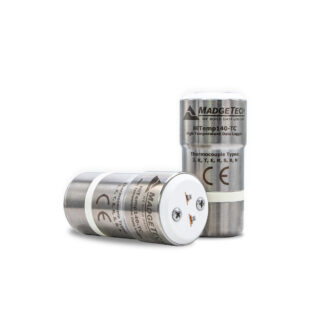

HiTemp140-TC

The HiTemp140-TC is a versatile high-temperature data logger featuring an SMP thermocouple connector.
Read More >

Key Features:

  • Measurement Range of -270 °C to +1820 °C (-454 °F to +3308 °F)
  • ±0.5 °C (±0.9 °F) Accuracy (probe dependent)
  • SMP Thermocouple
  • User Replaceable Battery
  • Trigger Options
  • Programmable Start & Stop Time

$539.00

MadgeTech recommends annual calibration.

Description

The HiTemp140-TC is a versatile high temperature data logger featuring an SMP thermocouple connector.

Compatible with a wide variety of thermocouple probes, this data logger is capable of measuring temperature as high as +1820 °C (+3308 °F) and as low as -270 °C (-454 °F) (probe dependent)

The HiTemp140-TC is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Contact us to customize this product

Specifications

Memory16,256 readings
5,418 readings in trigger settings mode
Reading Rate1 reading every second up to 1 reading every 24 hours
Battery Life2 years typical (1 minute reading rate)

Fast reading intervals and extreme temperatures will shorten the battery life substantially

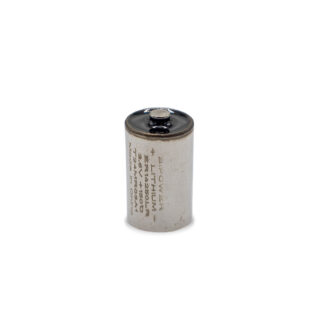

User Replaceable Battery
Material316 Stainless Steel, PPSU,
Glass-Filled Thermoplastic
Dimensions2.20 in x 1.0 in x 1.0 in
(55.9 mm x 26.4 mm x 26.4 mm)
IP RatingIP50
SubmersibleYes
Operating Environment-40 °C to +140 °C (-40 °F to +284 °F);
0 %RH to 100 %RH;
0.002 PSIA to 100 PSIA
(Body of Logger Cannot Exceed 140 °C)
Required Interface PackageIFC400 or IFC406

Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Range -40 °C to +140 °C (-40 °F to +284 °F)
Internal Channel Temperature Resolution 0.01 °C (0.02 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent

Literature

HiTemp140-TC Specification Sheet
HiTemp140-TC Product User Guide

Support Videos

HiTemp140 | Changing the Battery

HiTemp140 | Replacing the O-Rings

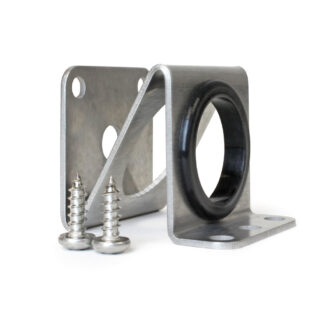

Accessories

Part Numbers

HiTemp140-TC — 902424-00
