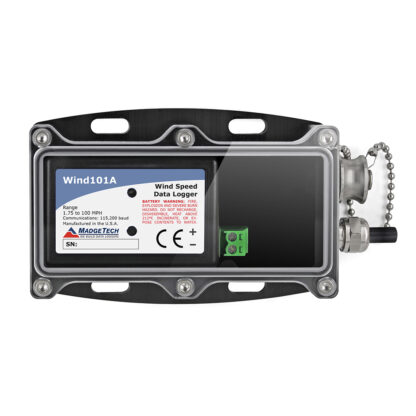

Wind101A

Wind101A
Wind101A
Wind101A

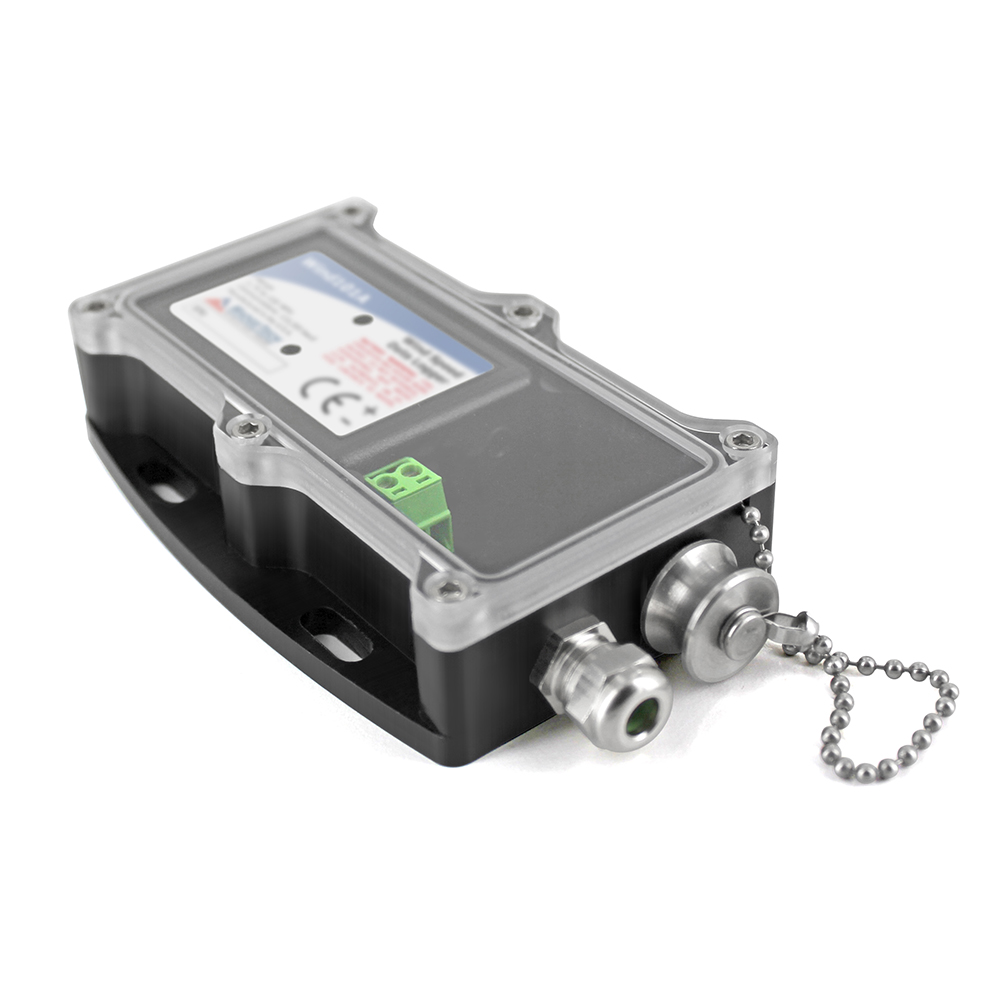

Wind101A Flat
Wind101A

The Wind101A is a data logging system to measure and record wind speed. Includes declaration of conformance. Read More >

What’s Included:

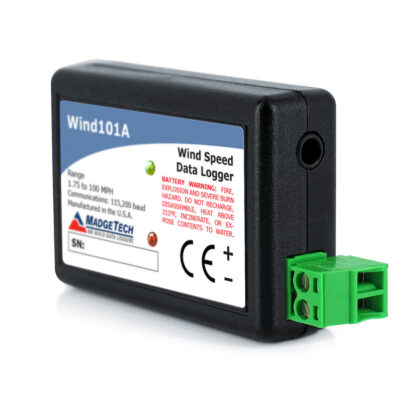

  • Pulse101A Pulse Data Logger
  • Weather Proof Enclosure
  • 3-Cup Anemometer
  • IFC200 Interface Cable

Availability: 5-7 Business Days

$419.00$569.00

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The Wind101A Includes:
(1) Pulse101A: Pulse Data Logger
(1) Weather Proof Enclosure
(1) 3-Cup Anemometer
(1) IFC200: Interface Cable

The Wind101A is a data logging system for measuring and recording wind speeds up to 100 mph. This system can measure and record up to 1,032,192 readings and be programmed to start up to 18 months in advance.

Data from the Wind101A is retrieved using the IFC200 Data Logger Interface to download the data to the MadgeTech 4 Software. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory1,032,192 readings
Baud Rate 115,200
LED Indicators Red and Green
Push-Button Start Yes
Battery Life Dependent on frequency and duty cycle. 10 months typical at 25 °C and 10 second reading rate
Dimensions Data Logger: 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm)
Operating Environment-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 100 %RH

Wind

Gust Survival Speed 214 mph (95 m/s)
Threshold Wind Speed 1.75 mph (0.75 m/s)
Maximum Measurable Speed 100 mph (contact factory about use at higher wind speeds)
Wind Resolution 0.085 mph at a 10 second reading rate
Wind Accuracy ±2 mph 0 to 10 mph, ±2.5 % of reading 10 to 100 mph
Rotation Diameter 7.5 in (191 mm)
MountAccepts 0.5 in (13 mm) dia. Mast

Literature

Wind101A Specification Sheet

Wind101A Product User Guide

Accessories

Part Numbers

Wind101A (25 ft) — 901870-00
Wind101A (50 ft) — 901877-00
Wind101A (100 ft) — 901872-00
Wind101A (150 ft) — 901874-00
