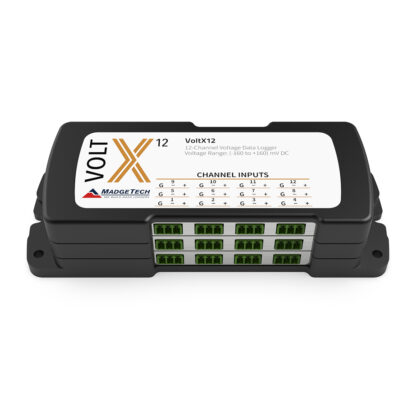

VoltX12 12-Channel DC Voltage Data Logger

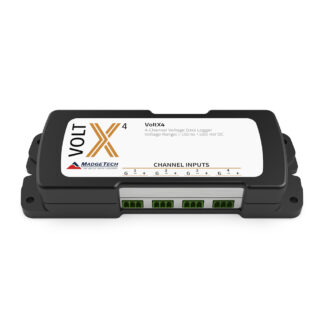

VoltX4 4-Channel DC Voltage Data Logger

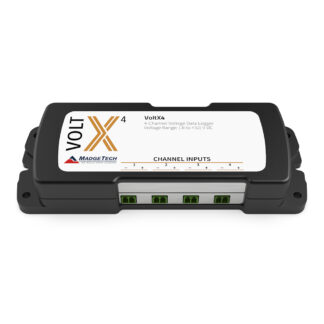

VoltX4 4-Channel DC Voltage Data Logger

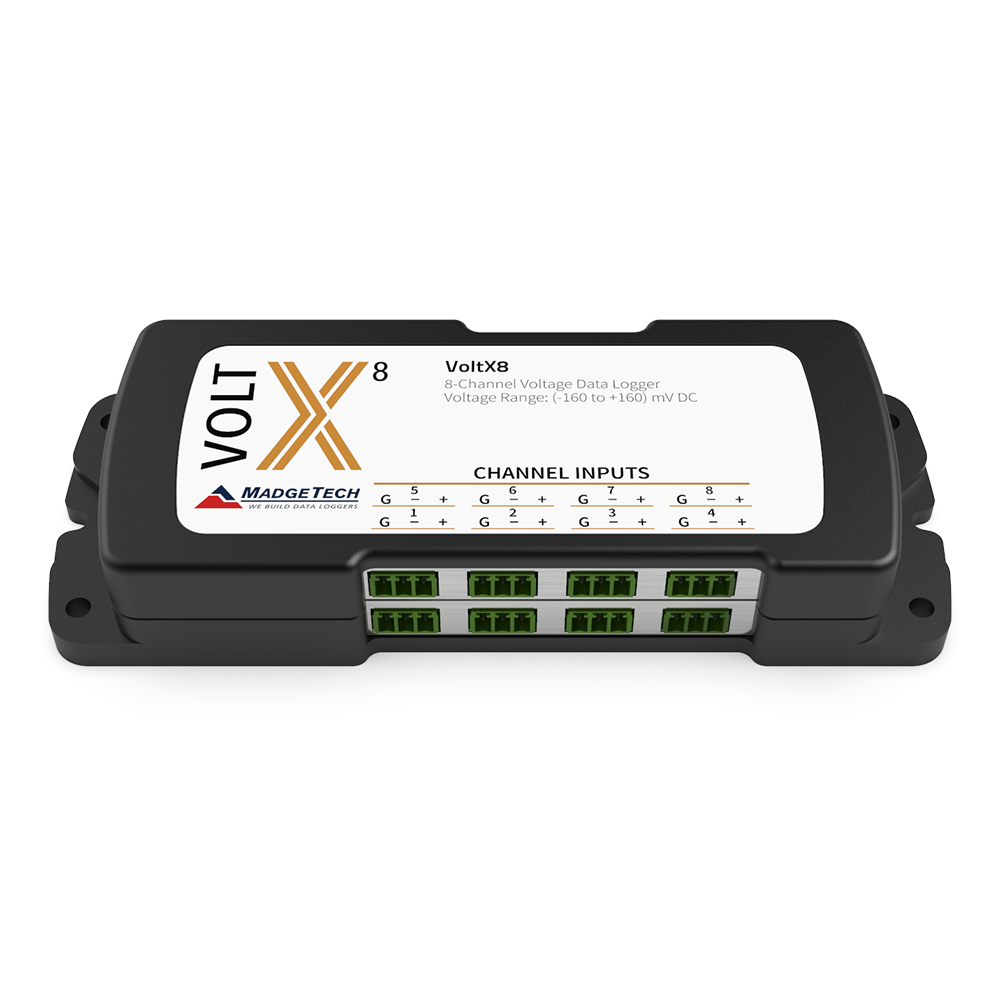

VoltX8 8-Channel DC Voltage Data Logger

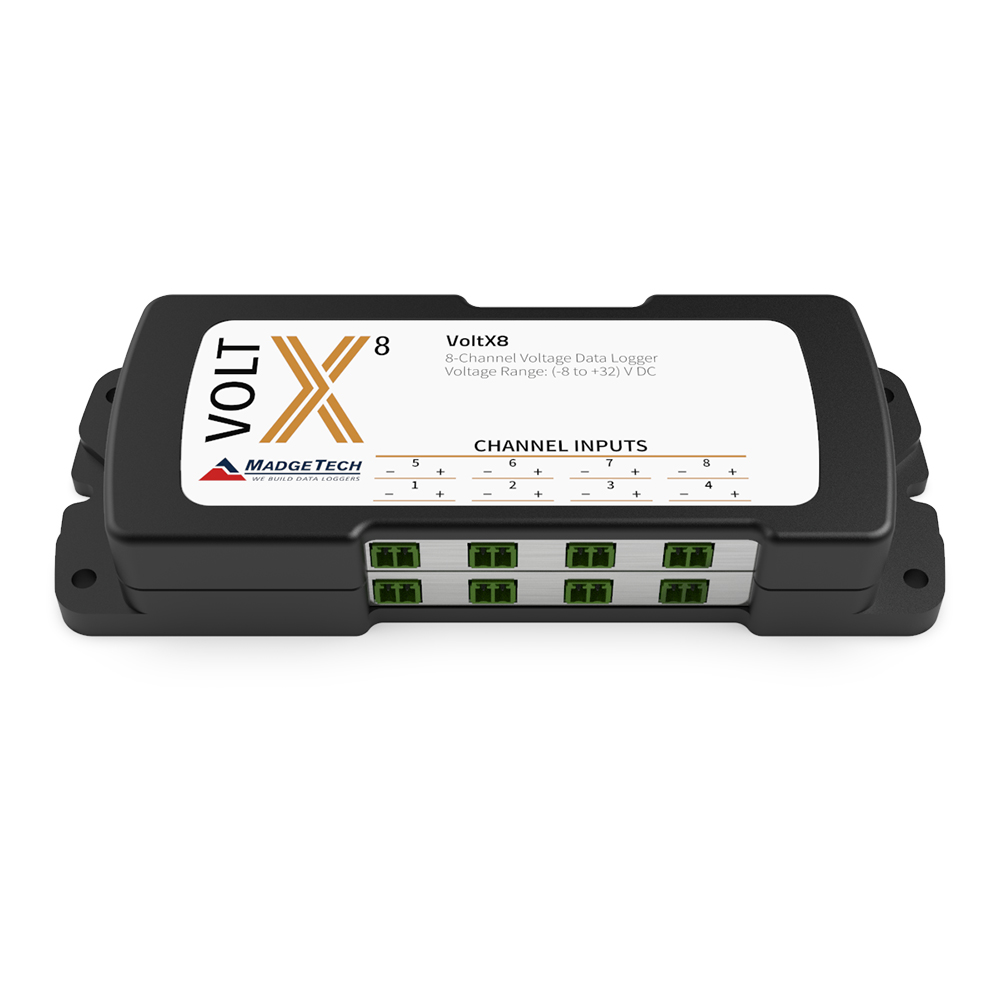

VoltX8 8-Channel DC Voltage Data Logger

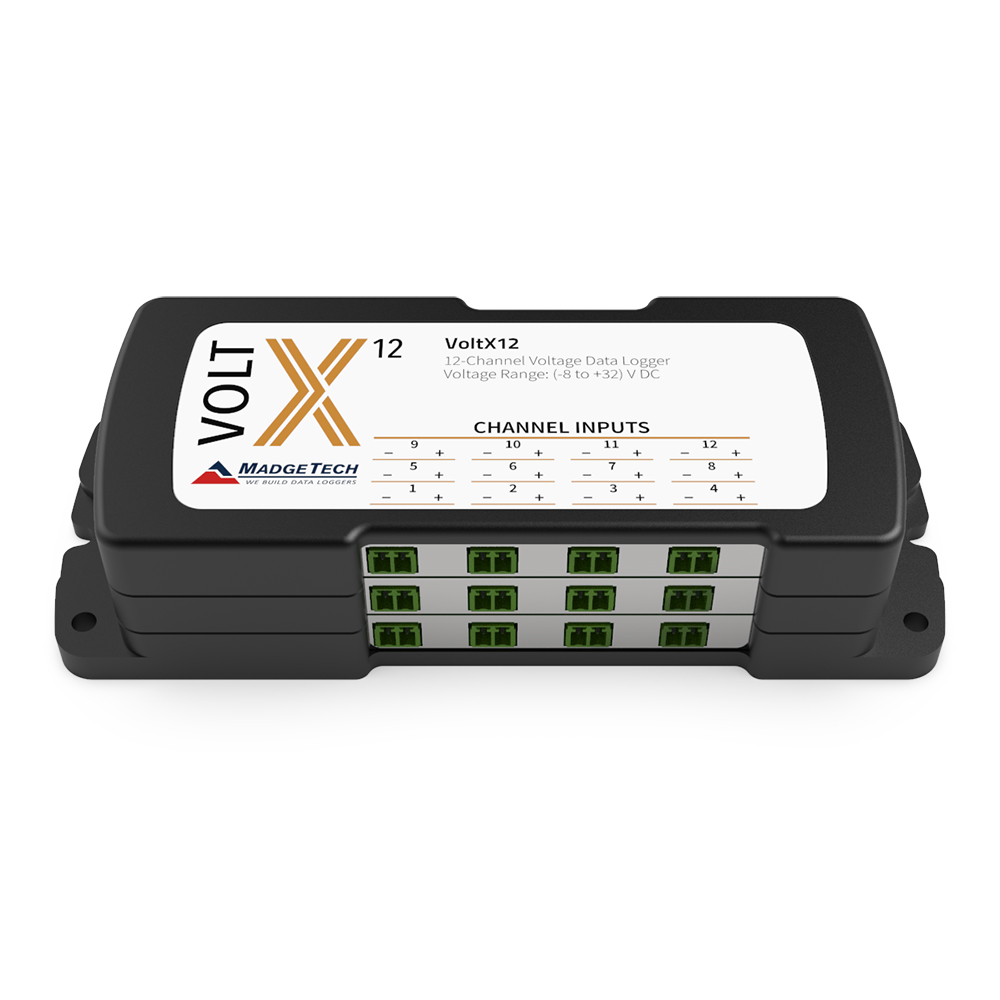

VoltX12 12-Channel DC Voltage Data Logger

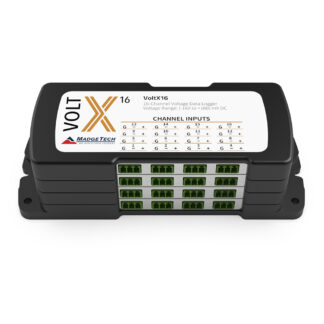

VoltX16 16-Channel DC Voltage Data Logger

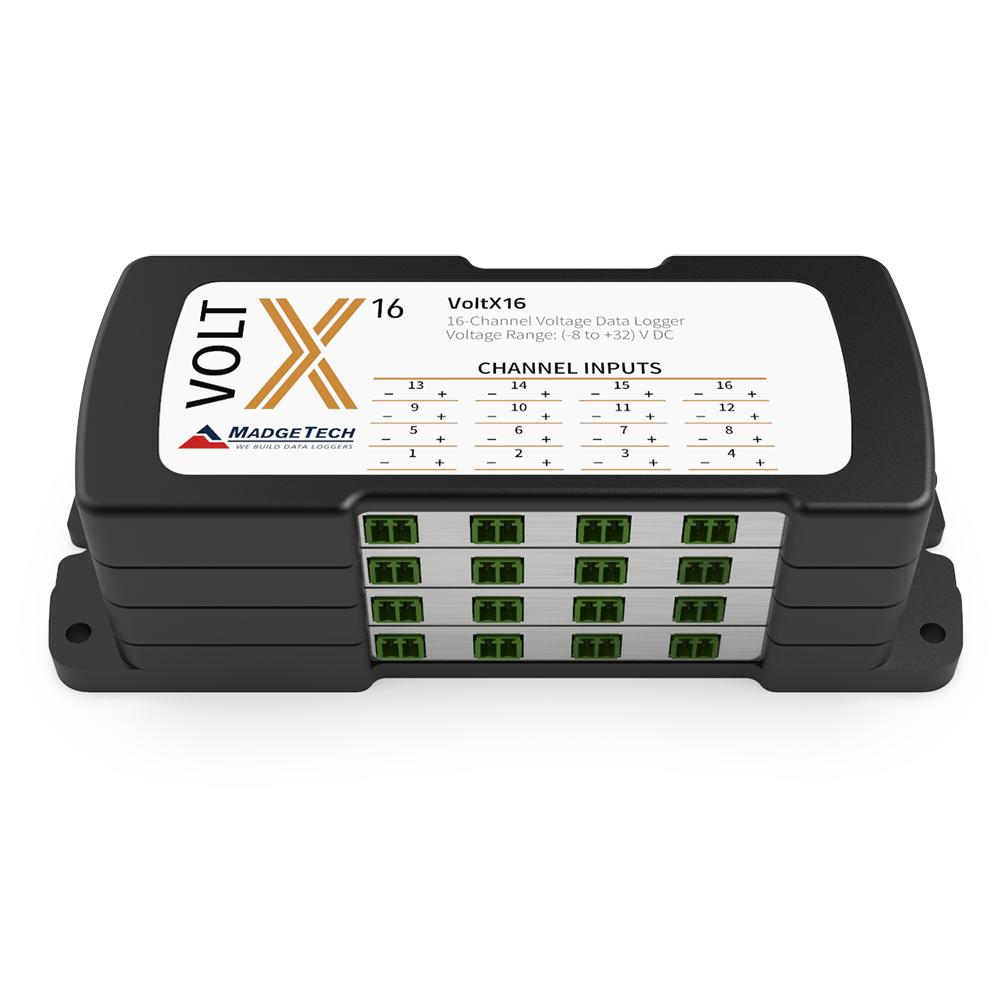

VoltX16 16-Channel DC Voltage Data Logger
VoltX12 12-Channel DC Voltage Data Logger
VoltX4 4-Channel DC Voltage Data Logger
VoltX4 4-Channel DC Voltage Data Logger
VoltX8 8-Channel DC Voltage Data Logger
VoltX8 8-Channel DC Voltage Data Logger
VoltX12 12-Channel DC Voltage Data Logger
VoltX16 16-Channel DC Voltage Data Logger
VoltX16 16-Channel DC Voltage Data Logger

The VoltX Series includes 4, 8, 12, and 16-channel DC voltage data loggers. Includes standard calibration certificate. Read More >

Key Features:

  • Available in 3 Measurement Ranges
  • Memory Large Memory Capacity
  • Accepts Signals from Common Voltage Sources
Find a Distributor

$714.00 – $1,759.00

MadgeTech recommends annual calibration.

Description

The VoltX Series includes the VoltX4, VoltX8, VoltX12, and VoltX16 DC voltage data loggers and are available in three voltage ranges: 160 mV, 3.2 V, and 32 V.

The VoltX Series accepts voltage signals from sensors, transducers and many other common voltage sources. In addition to a large storage capacity, users have the option to enable or disable channels to maximize memory capacity. There’s no interface necessary, the VoltX Series uses standard USB-A to Micro USB cable.

Using the MadgeTech Software, starting, stopping and downloading from the VoltX Series data loggers are simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.

General

Memory4-channel: 698,709 readings
8-channel: 349,354 readings
12-channel: 232,903 readings
16-channel: 174,677 readings
Reading Rate 4 Hz up to 1 reading every 24 hours
Channels 4, 8, 12, 16
LEDs 1 per channel and 2 status LEDs
Battery Life 18 months
MaterialBlack anodized aluminum
Dimensions 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm)
8-channel: 2.70 in x 7.25 in x 1.22 in(65.6 mm x 184.2 mm x 31.0 mm)
12-channel: 2.70 in x 7.25 in x 1.68 in(65.6 mm x 184.2 mm x 42.7 mm)
16-channel: 2.70 in x 7.25 in x 2.14 in(65.6 mm x 184.2 mm x 54.4 mm)
Operating Environment -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing

Voltage

Voltage Range ±160 mV, ±3.2 V, -8 V to +32 V
Voltage Resolution 160 mV: 0.02 mV
3.2 V: 0.0004 mV
32 V: 0.004 mV
Voltage Calibrated Accuracy 160 mV: ±0.032 mV
3.2 V: ±0.0032 V
32 V: ±0.02 V

Literature

VoltX Product User Guide
DOC-1381036-00
VoltX Specification Sheet
DOC-1381009-00

Support Videos

VoltX | Live Overview

VoltX | The Difference Between Current & Voltage

Accessories

Part Numbers

VoltX4 (160mV) 902179-00
VoltX4 (3.2V) 902183-00
VoltX4 (32V) 902187-00
VoltX8 (160mV) 902180-00
VoltX8 (3.2V) 902184-00
VoltX8 (32V) 902188-00
VoltX12 (160mV) 902181-00
VoltX12 (3.2V) 902185-00
VoltX12 (32V) 902189-00
VoltX16 (160mV) 902182-00
VoltX16 (3.2V) 902186-00
VoltX16 (32V) 902190-00

The VoltX Series replaces the following:
OctVoltV2 (160mV) — 902075-00
OctVoltV2 (3.2V) — 902077-00
OctVoltV2 (32V) — 902079-00
OctVolt (100mV) — 900443-00
OctVolt (15V) — 900445-00
OctVolt (2.5V) — 900448-00
OctVolt (30V) — 900449-00
QuadVoltV2 (160mV) — 902074-00
QuadVoltV2 (3.2V) — 902076-00
QuadVoltV2 (32V) — 902078-00
QuadVolt (100mV) — 901358-00
QuadVolt (15V) — 901364-00
QuadVolt (2.5V) — 901368-00
QuadVolt (30V) — 901373-00
