ThermoVault Max Extreme Temperature Thermal Barrier

Sale!

Extreme Temperature Thermal Barrier for HiTemp140 Data Loggers.

$2,200.00

Description

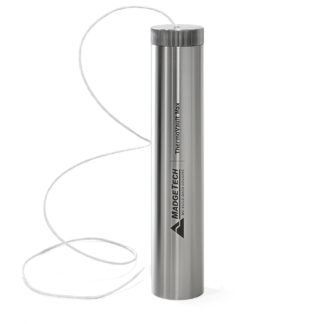

The ThermoVault Max is an extreme, high temperature thermal barrier designed for use with MadgeTech’s HiTemp140-M12, HiTemp140-FP and HiTemp140-PT data logger models. This durable enclosure is made from stainless steel with PTFE insulation. The ThermoVault Max barrier can withstand temperatures up to +400 °C in dry heat applications and +250 °C for wet applications when used with the TMAX Wet Seal Kit  (sold separately).

With unparalleled time versus temperature performance, the ThermoVault Max provides a best-in-class solution for the harshest of applications. Designed to endure extreme temperature monitoring environments such as furnace profiling, geothermal down-hole recording, dry heat sterilization and oven data logging.

MadgeTech also offers a Dry Heat Sterilization Kit including the ThermoVault Max barrier, HiTemp140-M12 Data Logger and M12 Depyrogenation probe.

The ThermoVault Max is built for use in harsh applications that require extreme temperature monitoring, such as depyrogenation, food processing, oven monitoring, geothermal down-hole recording, and furnace profiling.

General

Material316 Stainless Steel, PTFE, Silicone
Dimensions1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L)
IP RatingIP68 rating may be obtained with seal kit installed from -60 ºC to 250 ºC. Rapid temperature fluctations may cause ingress.

Literature

ThermoVault Max Specification Sheet

ThermoVault Max Product User Guide

Accessories

Part Numbers

ThermoVault Max Extreme Temperature Thermal Barrier — 900000-00
