PRTemp140

The PRTemp140 is a submersible, pressure and high temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Submersible
  • 2.5 Inches Tall
  • Available in Flush or NPT Pressure Port Top

Availability: 5-7 Business Days

$1,350.00

MadgeTech recommends annual calibration.

Description

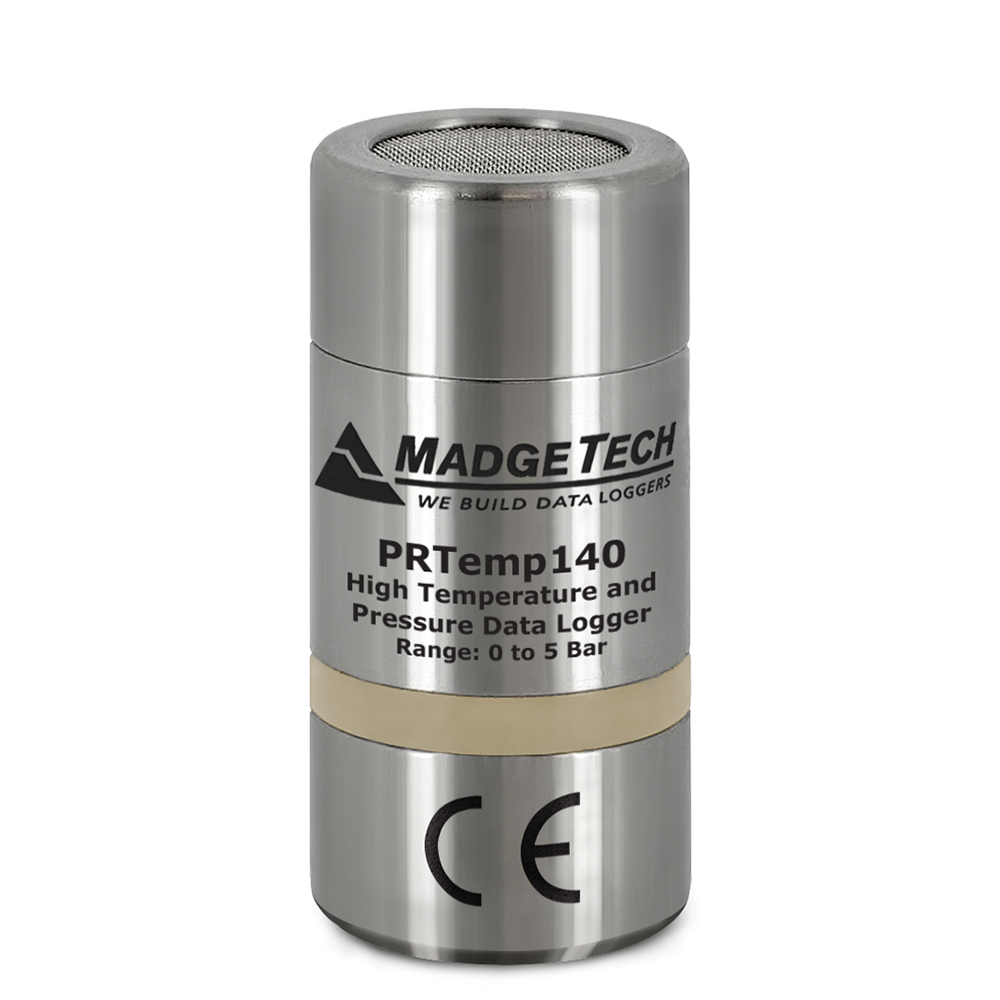

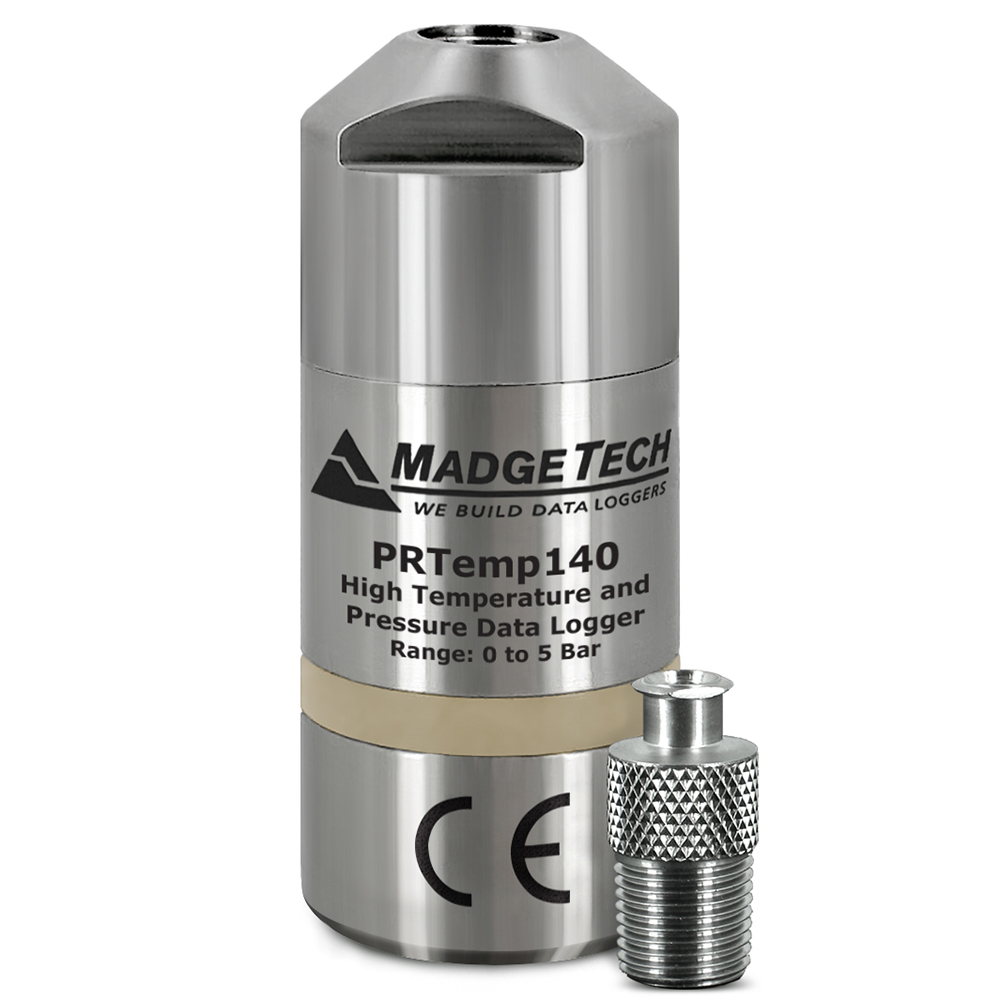

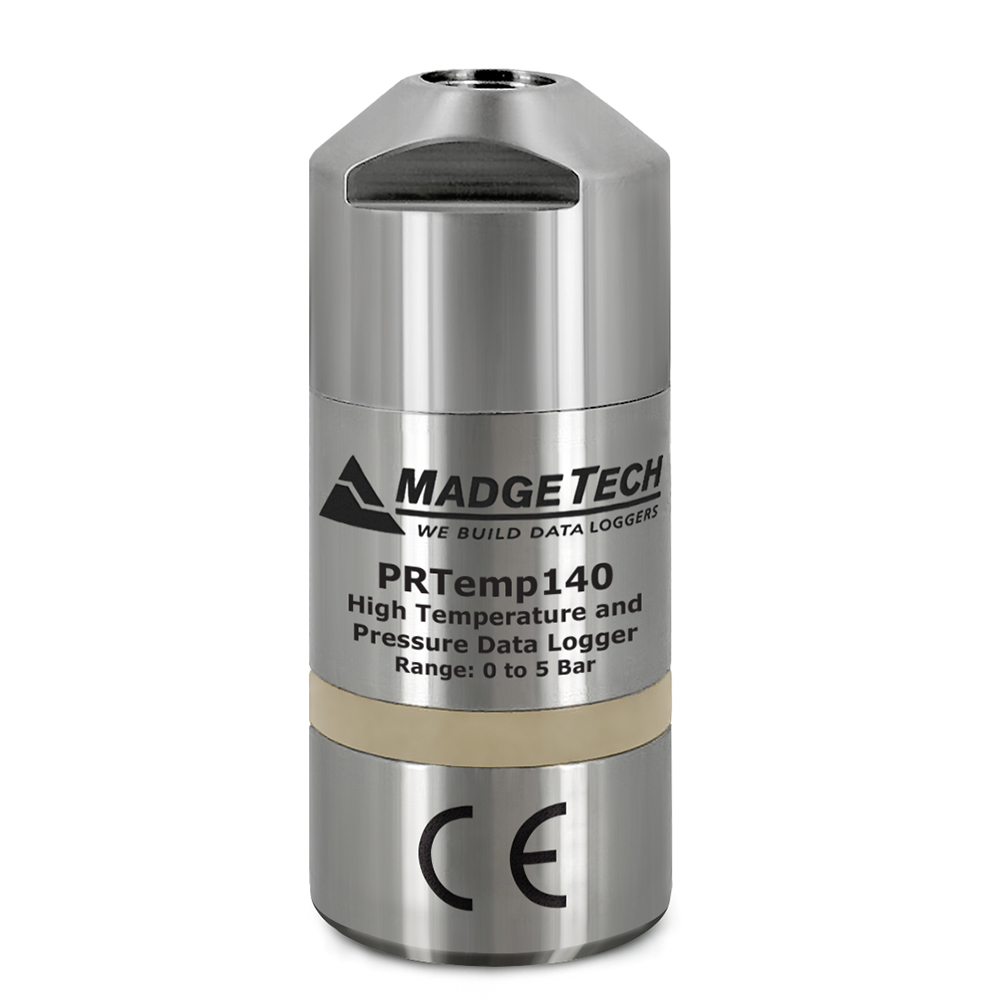

The PRTemp140 is a submersible, pressure and high temperature data logger. Available with a flush top or 1/8-27 NPT top model, this device stands less than 2.5 in. high, allowing it to fit discretely inside small spaces.

This data logger is able to measure and record temperatures from -20 °C to 140 °C (-4 °F to +284 °F) and absolute pressure from 0 bar to 5 bar, accommodating a wide range of applications even in the harshest conditions. The PRTemp140 can store a maximum of 16,128 time and date stamped readings and can even be programmed to start up to 18 months in advance.

The PRTemp140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory16,128 readings (all channels enabled)
Reading Rate1 second to once every 24 hours, selectable in software
Baud Rate125,000
Battery Life2 years typical (1 minute reading rate)

Note: Fast reading intervals and extreme temperatures will shorten the battery life substantially
Material316 Stainless Steel, Radel
DimensionsFlush Top: 1.98 in x 0.97 in x 0.97 in (50.2 mm x 24.6 mm x 24.6 mm)
NPT Top: 2.30 in x 0.97 in x 0.97 in (58.2 mm x 24.6 mm x 24.6 mm)
IP RatingIP68
SubmersibleYes
Operating Environment-20 °C to +140 °C (-4 °F to +284 °F), 0 %RH to 100 %RH
ApprovalsCE

Temperature

Temperature SensorResistance Temperature Detector (RTD)
Temperature Range-20 °C to +140 °C (-4 °F to +284 °F)
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.1 °C from +20 °C to +140 °C (68 °F to 284 °F)
±0.3 °C from -20 °C to +19.99 °C (-4 °F to +68 °F)

Pressure

Pressure SensorSemiconductor Strain Gauge
Pressure Range0 to 5 Bar (0 to 72.5 PSIA)
Pressure Resolution0.0001 bar
Pressure Calibrated Accuracy±0.03 bar (±0.435 PSI) from +20 °C to +140 °C (+68 °F to +284 °F)
±0.1 bar (±1.45 PSI) from -20 °C to +19.99 °C (-4 °F to +68 °F)

Literature

PRTemp140 Product User Guide
PRTemp140 Specification Sheet

Accessories

Part Numbers

PRTemp140 (Flush Top) — 901225-00
PRTemp140 (NPT Pressure Port Top) — 901223-00
