PRTemp1000D

The PRTemp1000D is a differential pressure and temperature data logger with NPT differential fitting. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Submersible
  • ¼ Inch NPT Differential Fitting
  • Available in 4 Measurement Ranges

$2,349.00

MadgeTech recommends annual calibration.

Description

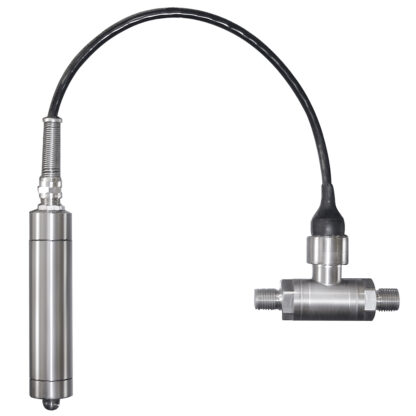

The PRTemp1000D is a differential pressure and temperature data logger with a ¼ in. NPT differential fitting. This device is submersible and available in models ranging from 30 to 500 PSID.

The internal temperature sensor provides measurements from -20 °C to +80 °C (-4 °F to +176 °F) with an accuracy of ±0.5 °C. The PRTemp1000D can store up to 32,766 time and date stamped readings, and is able to be programmed to start up to 6 months in advance.

The PRTemp1000D is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory32,766 readings (all channels enabled)
Reading Rate1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate2,400
Battery Life1 year
Material303 stainless steel
Dimensions0.99 in H x 21.87 in L x 3.35 in W (25 mm x 533 mm x 85 mm)
SubmersibleYes
Operating Environment-20 °C to +80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH
Required Interface Package IFC110 or IFC200

Temperature

Temperature Sensor Semiconductor
Temperature Range -20 °C to +80 °C (-4 °F to +176 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy ±0.5 °C

Pressure

Pressure Sensor Semiconductor, Strain Gauge
Pressure Range 0 to 30, 100, 300, or 500 PSID
Pressure Resolution 0 to 30: 0.002, 0 to 100: 0.005, 0 to 300: 0.02 and 0 to 500: 0.05
Pressure Calibrated Accuracy ±0.25 %FSR, 0.1 % at 25 °C (77 °F) typical

Literature

PRTemp1000D Specification Sheet

PRTemp1000D Product User Guide

Accessories

Part Numbers

PRTemp1000D-100 — 901166-00
PRTemp1000D-30 — 901167-00
PRTemp1000D-300 — 901168-00
PRTemp1000D-500 — 901169-00
