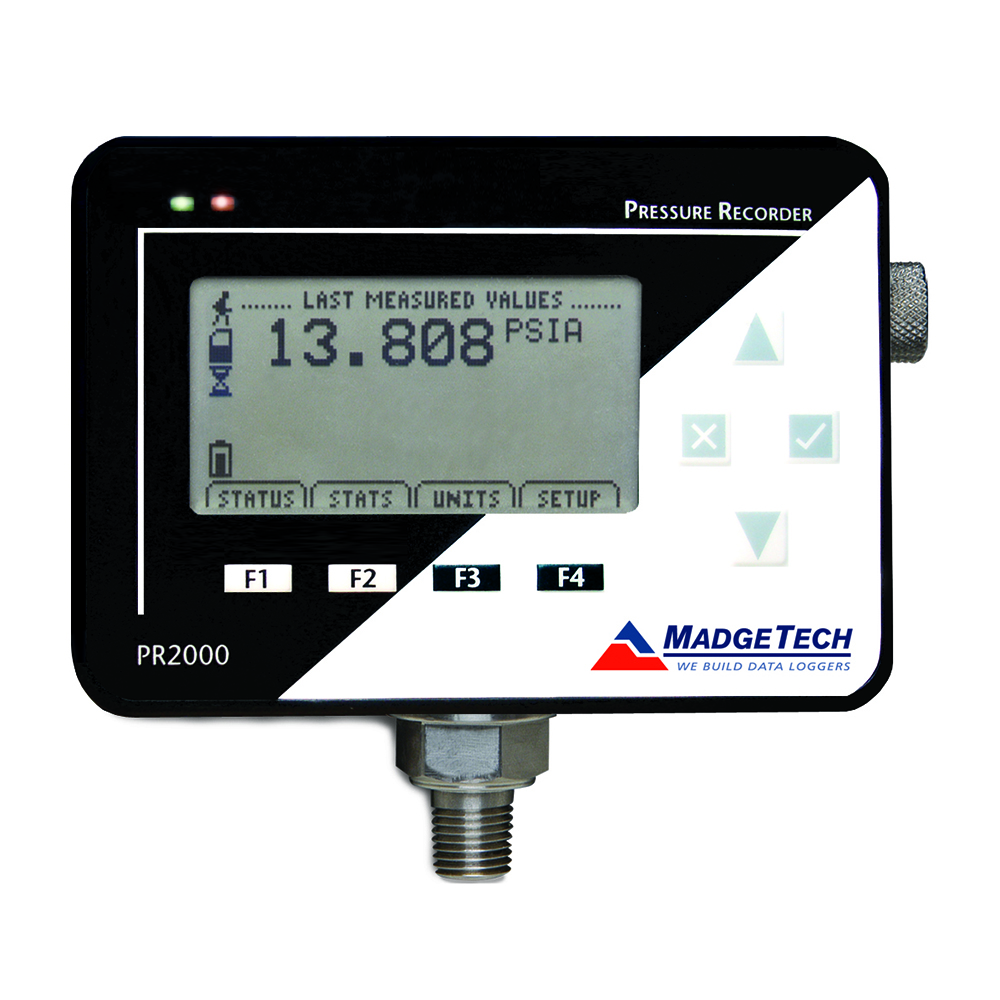

PR2000

The PR2000 is a pressure data logger with NPT fitting and LCD for real-time monitoring. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Digital Display
  • ¼ Inch NPT Fitting
  • Memory Capacity of 262,000+ Readings

$889.00

MadgeTech recommends annual calibration.

Description

The PR2000 is a pressure data logger with an LCD and wall mounted universal power adapter. Available in 10 ranges, the PR2000 can adapt to any application and features a ¼ in. NPT fitting for quick connection.

The 8-button keypad and LCD provide convenient access to current statistics (min, max, average), recording status, display options and calibration information. With the ability to measure and record data up to 262,144 readings, the PR2000 has one of the largest memory capacities of any similar data logger on the market.

The PR2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory262,144 readings
Reading Rate 1 reading every 2 seconds up to 1 reading every 24 hours
Baud Rate 115,200
Battery Life 1 year battery life at 1 minute reading rate with display off, 30 days typical with continuous display use. Optional AC adapter available.
MaterialBlack anodized aluminum case/NPT Steel
Dimensions5.1 in x 4.8 in x 1.705 (130 mm x 122 mm x 43.3 mm)
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
ApprovalsCE

Pressure

Pressure Sensor Semiconductor (strain gauge)
Pressure Range 0 to 30, 100, 300, and 500 PSIA/G
0 to 1000 and 5000 PSIA
Pressure Resolution 0 to 30: 0.002, 0 to 100:0.005,
0 to 300: 0.02, 0 to 500: 0.05, 0 to 1000: 0.05
0 to 5000: 0.2
Pressure Calibrated Accuracy 2 %FSR, 0.25 % at +25 °C (+77 °F) Typical

Literature

PR2000 Product User Guide
PR2000 Specification Sheet

Accessories

Part Numbers

PR2000-1000-PSIA — 901003-00
PR2000-100-PSIA — 901008-00
PR2000-100-PSIG — 901012-00
PR2000-300-PSIA — 901019-00
PR2000-300-PSIG — 901023-00
PR2000-30-PSIA — 901029-00
PR2000-30-PSIG — 901033-00
PR2000-5000-PSIA — 901037-00
PR2000-500-PSIA — 901042-00
PR2000-500-PSIG — 901047-00
