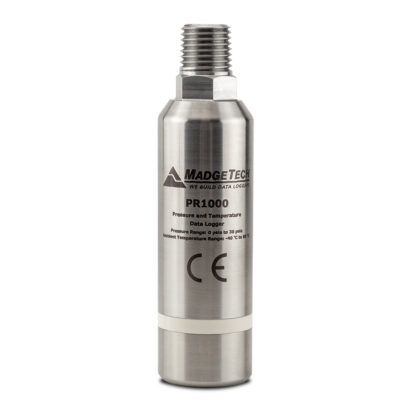

PR1000 Pressure and Temperature Data Logger with NPT Fitting
PR1000 Pressure and Temperature Data Logger with NPT Fitting
PR1000 Pressure and Temperature Data Logger with NPT Fitting
PR1000 Pressure and Temperature Data Logger with NPT Fitting
PR1000 Pressure and Temperature Data Logger with NPT Fitting
PR1000 Pressure and Temperature Data Logger with NPT Fitting

The PR1000 is a temperature, pressure and transient pressure data logger with an NPT fitting. Includes ISO/IEC 17025 Accredited Certificate.
Read More >

Key Features:

  • Compact
  • Submersible
  • ¼ Inch NPT Fitting
  • Available in 10 Measurement Ranges
Find a Distributor

$649.00

MadgeTech recommends annual calibration.

Description

The PR1000 is a temperature, pressure and transient pressure data logger. This device is fully submersible and available in 10 models ranging from 30 to 5000 PSI.

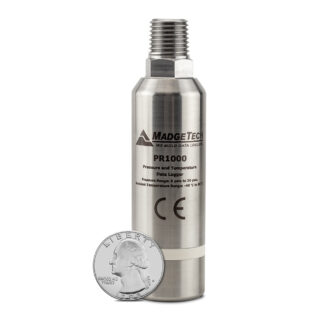

Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a ¼ inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.

The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Note: The PR1000 replaces the PRTemp1000 and PRTrans1000.

General

Memory1,396,736 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Transient = 128Hz
Battery Life1 year
In Transient Mode: 10 Days (at 128Hz)
Material316 Stainless Steel/Radel
Dimensions3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
Submersible Yes
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface Package IFC400 or IFC406
ApprovalsCE

Temperature

Temperature Sensor Internal semiconductor
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution1.0 °C
Temperature Calibrated Accuracy ±2.0 °C

Pressure

Pressure Range 0 to 30, 100, 300, 500 PSIA/PSIG; 1000 and 5000 PSIA
Pressure Resolution Range: Resolution
0 to 30 PSIA/PSIG: 0.0005 PSI
100 PSIA/PSIG: 0.002 PSI
300 PSIA/PSIG: 0.005 PSI
500 PSIA/PSIG: 0.01 PSI
1000 PSIA: 0.02 PSI
5000 PSIA: 0.1 PSI
Pressure Calibrated Accuracy Range: Accuracy
0 to 30 PSIA/PSIG: ±0.6 PSI
100 PSIA/PSIG: ±2 PSI
300 PSIA/PSIG: ±6 PSI
500 PSIA/PSIG: ±10 PSI
1000 PSIA: ±20 PSI
5000 PSIA: ±100 PSI

Literature

PR1000 Product User Guide
DOC-1406036-00
PR1000 Specification Sheet
DOC-1406009-00

Support Videos

PR1000 | Live Overview

Accessories

Part Numbers

PR1000-1000-PSIA — 902244-00
PR1000-100-PSIA — 902241-00
PR1000-100-PSIG — 902247-00
PR1000-300-PSIA — 902242-00
PR1000-300-PSIG — 902248-00
PR1000-30-PSIA — 902240-00
PR1000-30-PSIG — 902246-00
PR1000-5000-PSIA — 902245-00
PR1000-500-PSIA — 902243-00
PR1000-500-PSIG — 902249-00

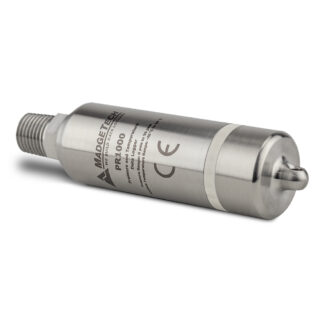

PR1000-1000-PSIA-KR — 902274-00
PR1000-100-PSIA-KR — 902271-00
PR1000-100-PSIG-KR — 902277-00
PR1000-300-PSIA-KR — 902272-00
PR1000-300-PSIG-KR — 902278-00
PR1000-30-PSIA-KR — 902270-00
PR1000-30-PSIG-KR — 902276-00
PR1000-5000-PSIA-KR — 902275-00
PR1000-500-PSIA-KR — 902273-00
PR1000-500-PSIG-KR — 902279-00

The PR1000 replaces the following:
PRTemp1000-1000-PSIA — 901118-00
PRTemp1000-100-PSIA — 901122-00
PRTemp1000-100-PSIG — 901126-00
PRTemp1000-300-PSIA — 901136-00
PRTemp1000-300-PSIG — 901140-00
PRTemp1000-30-PSIA — 901145-00
PRTemp1000-30-PSIG — 901149-00
PRTemp1000-5000-PSIA — 901153-00
PRTemp1000-500-PSIA — 901157-00
PRTemp1000-500-PSIG — 901161-00
PRTrans1000-1000-PSIA — 901227-00
PRTrans1000-100-PSIA — 901231-00
PRTrans1000-100-PSIG — 901235-00
PRTrans1000-300-PSIA — 901241-00
PRTrans1000-300-PSIG — 901245-00
PRTrans1000-30-PSIA — 901249-00
PRTrans1000-30-PSIG — 901253-00
PRTrans1000-5000-PSIA — 901257-00
PRTrans1000-500-PSIA — 901261-00
PRTrans1000-500-PSIG — 901265-00
