MicroTemp100

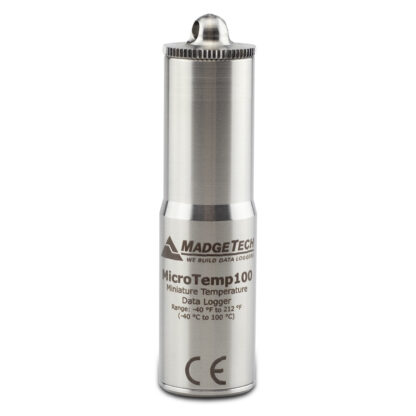

MicroTemp100 Miniature, Temperature Data Logger up to 100 °C (212 °F)

The MicroTemp100 is a miniature, temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Monitor and Record up to 100 °C
  • 2.6 Inches Tall
  • Submersible up to 230 Feet

Availability: 5-7 Business Days

Find a Distributor

$289.00

MadgeTech recommends annual calibration.

Description

The MicroTemp100 is a miniature, temperature data logger that’s able to monitor and record temperatures from -40 °C to +100 °C (-40 °F to +212 °F). Only 2.6 in (66 mm) tall and 0.7 in (18 mm) in diameter, this data logger can easily fit into the smallest spaces.

The MicroTemp100 has a storage capacity of 32,767 readings and is equipped with programmable high/low alarms that alert when user-specified temperature limits are exceeded.

The MicroTemp100 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory 32,767 readings
Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
LED Indicators 1 status LED
Battery Life 1 year typical
Material 316 L food grade stainless steel
Dimensions 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.)
IP Rating IP68
SubmersibleYes
Operating Environment -40 °C to +100 °C (-40 °F to +212 °F), 0 %RH to 100 %RH
Required Interface Package IFC202
ApprovalsCE

Temperature

Temperature Sensor Internal semiconductor
Temperature Range -40 °C to +100 °C (-40 °F to +212 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy ±0.5 °C (0 °C to 50 °C)
±1.0 °C (50.1 °C to 100 °C)
±2.0 °C (-40.0 °C to -0.1 °C)

Literature

MicroTemp100 Product User Guide
DOC-1103036-HT
MicroTemp100 Specification Sheet
DOC-1103009-HT

Accessories

Part Numbers

MicroTemp100 — 902239-00
