IFC202

USB Interface Cable Package for the Micro Series Data Loggers.

$119.00$136.85

Clear
Extended Warranty

Description

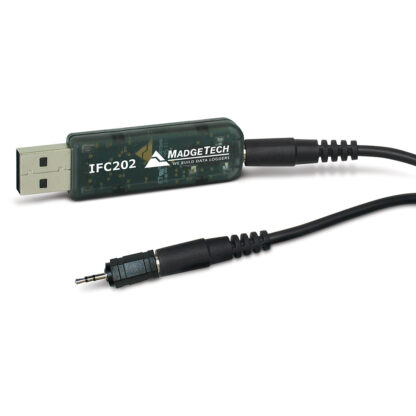

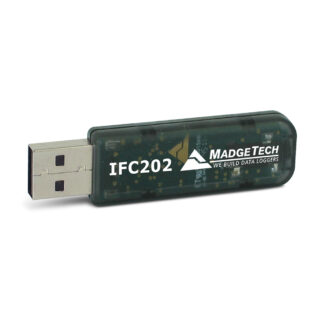

MadgeTech’s IFC202 interface cable communicates between the Micro series data loggers and the MadgeTech software. Through this interface, loggers can be started, stopped or downloaded.

The IFC202 has been redesigned, and is now “plug and play”. It can be directly connected to a computer without installing any drivers. The improved IFC202 can now operate at up to 500 Volts RMS relative to the computer’s earth ground when attached.

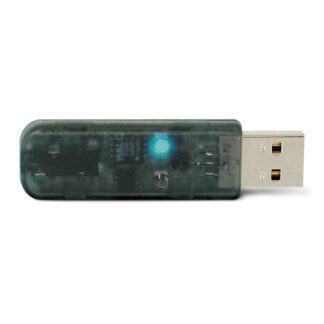

The IFC202 is equipped with communication LEDs, that provide a quick indication of the device’s status. The blue light illuminates when the device is plugged in and successfully recognized by Windows. The red light flashes when data is sent, and the green light flashes when data is received.

The IFC202 is compatible with the MicroTemp, MicroRHTemp, EggTemp, EggTemp-RH and EGMS.

Literature

IFC202 Data Sheet

IFC202 Quick Installation Guide
