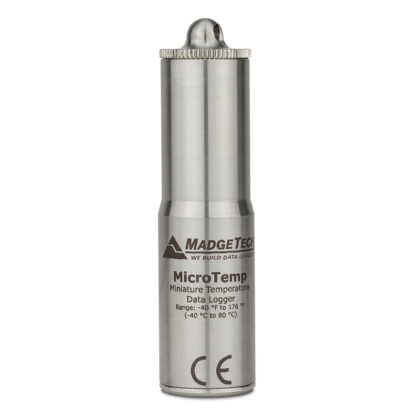

MicroTemp

The MicroTemp is a miniature, temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • 2.6 Inches Tall
  • Submersible up to 230 Feet
  • Programmable High/Low Alarms

$239.00

Description

The MicroTemp is a miniature, temperature data logger that’s fully submersible up to 230 ft. (70 m). Only 2.6 in (66 mm) tall and 0.7 in (18 mm) in diameter, this data logger can easily fit into the smallest spaces.

Don’t let its tiny size fool you, the MicroTemp measures and records temperatures from –40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The MicroTemp has a storage capacity of 32,767 readings and is equipped with programmable high/low alarms that alert when user-specified temperature limits are exceeded.

The MicroTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory 32,767 readings
Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
Alarm Yes
Baud Rate 38,400
LED Indicators Red & Green
Battery Life 1 year
Material 316 L food grade stainless steel
Dimensions 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.)
IP Rating IP68
SubmersibleYes
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface Package IFC102 or IFC202
ApprovalsCE
Approved for carriage on Delta® Mainline Flights

Temperature

Temperature Sensor Internal semiconductor
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy ± 0.5 °C (0 °C to 50 °C)
± 1.0 °C (50.1 °C to 80 °C)
± 2.0 °C (-40.0 °C to -0.1 °C)

Literature

MicroTemp Specification Sheet

MicroTemp Product User Guide

Support Videos

MicroTemp | Live Overview

MicroTemp | Beverage Pasteurization

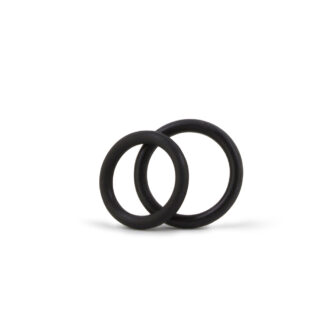

Accessories

Part Numbers

MicroTemp — 900367-00
