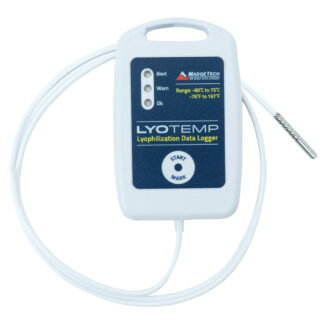

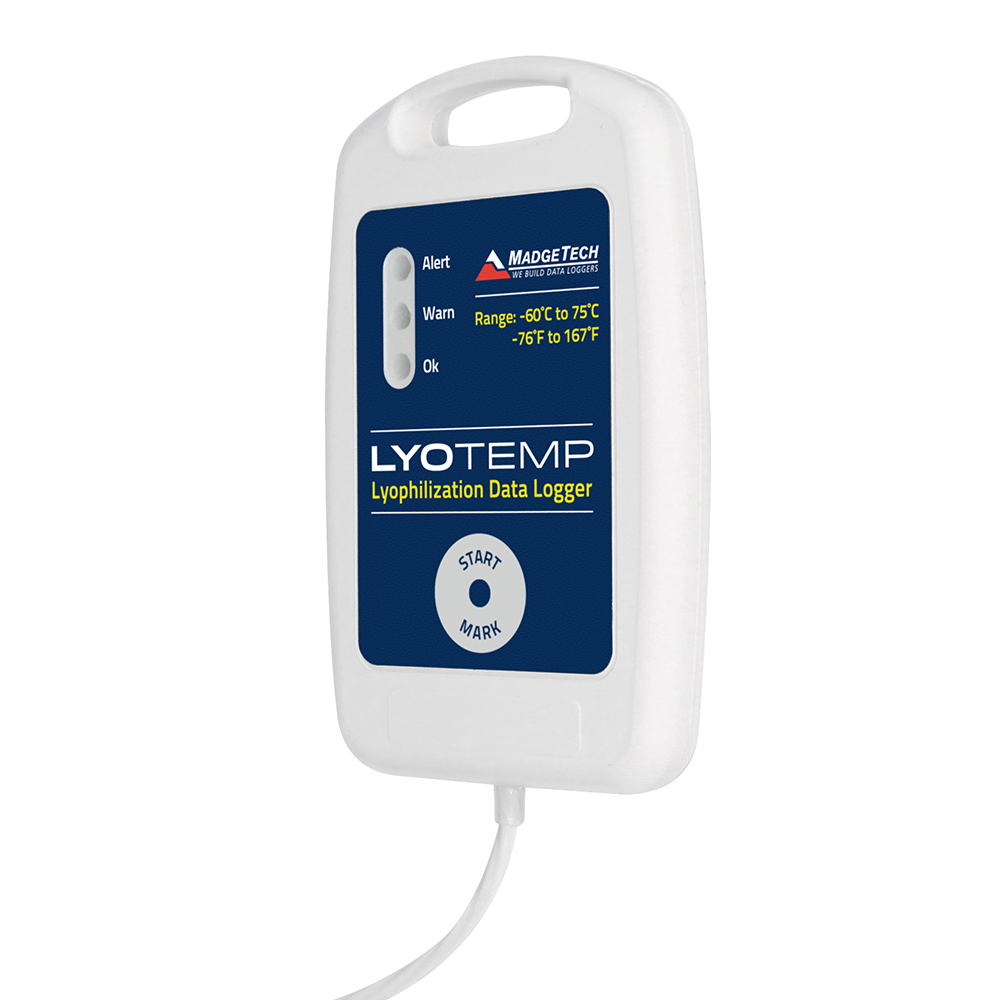

LyoTemp Ultra-Low Temperature Data Logger for Lyophilization
LyoTemp Ultra-Low Temperature Data Logger for Lyophilization

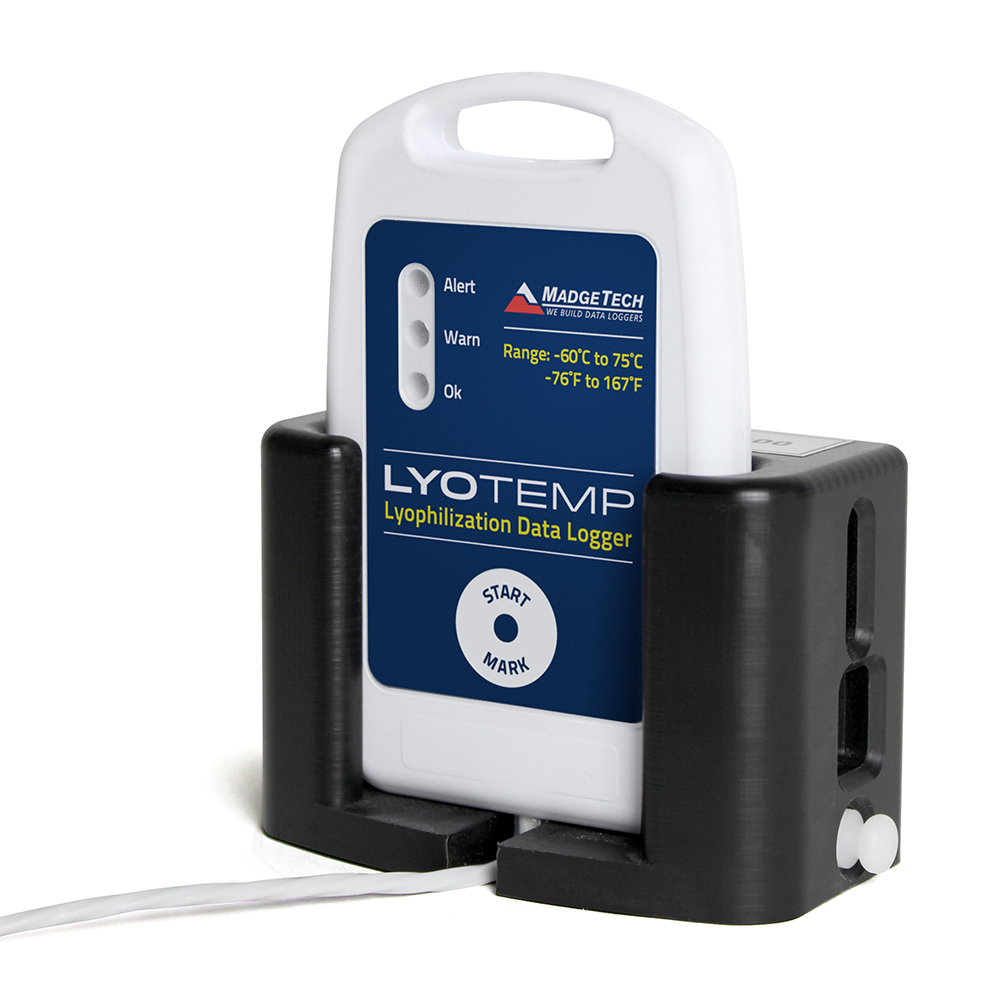

LyoTemp Ultra-Low Temperature Data Logger in Docking Station

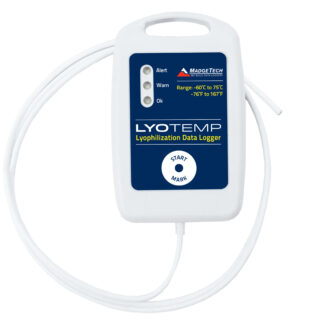

Lyo-Temp-2023
LyoTemp Ultra-Low Temperature Data Logger for Lyophilization
LyoTemp Ultra-Low Temperature Data Logger for Lyophilization
LyoTemp Ultra-Low Temperature Data Logger in Docking Station
Lyo-Temp-2023

The LyoTemp is an ultra-low temperature data logger, recording temperatures as low as -60 °C (-76 °F).  Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Compact Size
  • Configurable Alarms & Warnings
  • Hermetically Sealed Temperature Sensor

Availability: 5-7 Business Days

Find a Distributor

$219.00

MadgeTech recommends annual calibration.

Description

The LyoTemp is an ultra-low temperature data logger with an operating range of -60 °C to +75 °C (-76 °F to +167 °F). Designed with a hermetically sealed temperature sensor with a flexible cable, the LyoTemp is ideal for monitoring products during the lyophilization process.

The LyoTemp provides 32,767 date and time stamped temperature readings with an accuracy of ±0.5 °C. Trusted to monitor critical applications, the LyoTemp is equipped with configurable high/low alarm limits and high/low warning limits to alert users when the temperature near unacceptable levels.

The LyoTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory32,767 readings
Reading Rate 1 reading every 5 seconds up to 1 reading every 30 minutes
Single/Multi-UseMulti-use
Battery Life1 year typical
MaterialABS plastic
Dimensions3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm)
Operating Environment -60 °C to +75 °C (-76 °F to +167 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA
Required Interface Package IFC300
ApprovalsCE

Temperature

Temperature SensorThermistor
Temperature Range-60 °C to +75 °C (-76 °F to +167 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Temperature Calibrated Accuracy 0.5 °C

Literature

LyoTemp Product User Guide
DOC-1289036-00
LyoTemp Specification Sheet
DOC-1289009-00

Accessories

Part Numbers

LyoTemp — 900355-00
