EggTemp

SubmersibleLED Indicator

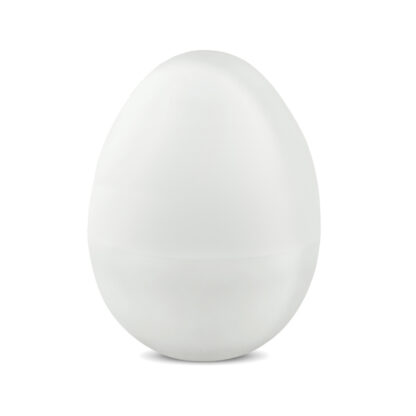

The EggTemp is an egg-shaped temperature data logger. Includes ISO17025 accredited calibration certificate.

Availability: 5-7 Business Days

$189.00

Extended Warranty

Description

The EggTemp data logger is specifically designed to measure and record data of the temperature of eggs during shipping, storage and incubation. This device easily fits into egg cartons and responds to the ambient environment as a real egg would, simulating the temperature of the actual product.

The EggTemp is submersible and can measure temperatures up to +60 °C (+140 °F) with an accuracy of ±0.5 °C. The non-volatile memory can hold up to 32,767 readings and will retain data even if the battery becomes discharged.

The EggTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory32,767 readings
Reading Rate1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate38,400
LED IndicatorsRed & Green
Battery Life1 year
MaterialEnclosure: HDPE
Logger: Stainless Steel
Dimensions2.25 in x 1.68 in dia. (57.15 mm x 42.67 mm dia.)
IP RatingIP68
Operating Environment 0 °C to +60 °C (+32 °F to +140 °F), 0 %RH to 100%RH
Required Interface Package IFC202
ApprovalsCE

Temperature

Temperature SensorInternal semiconductor
Temperature Range0 °C to +60 °C (+32 °F to +140 °F)
Temperature Resolution0.1 °C (0.18 °F)
Temperature Calibrated Accuracy±0.5 °C

Literature

EggTemp Data Sheet

EggTemp Product User Guide

Add-Ons

Part Numbers

EggTemp — 900088-00
