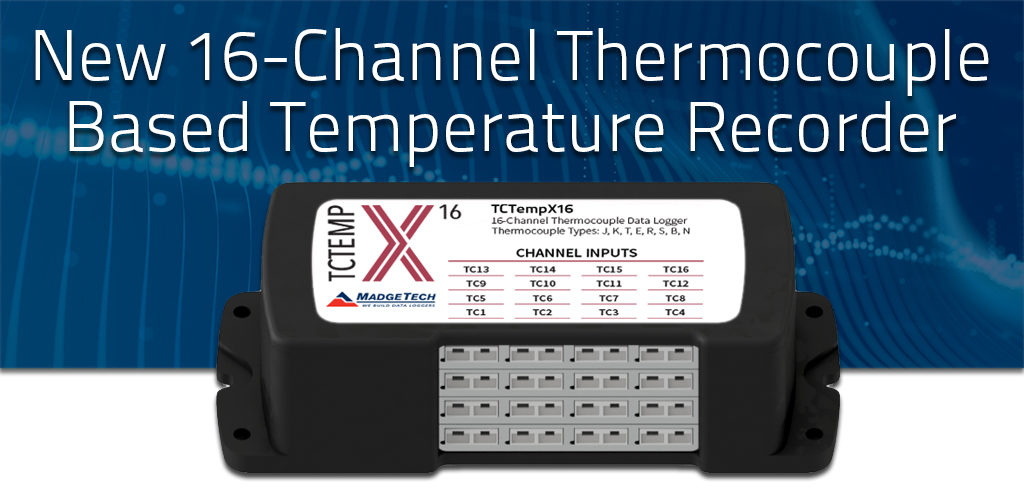

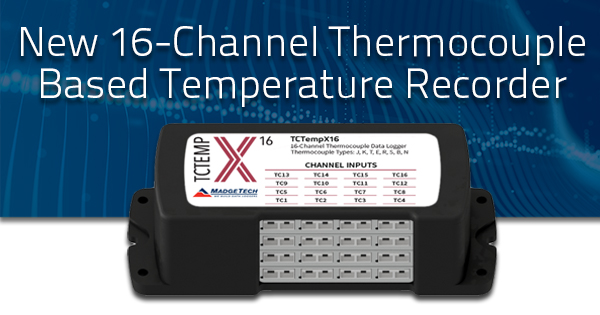

Whether there’s a need to monitor 16 points in one application or 16 points across multiple applications, in a central location, MadgeTech has the solution! The new TCTempX16 thermocouple-based temperature data logger offers 16 channels of simultaneous monitoring.
The TCTempX16 provides more than 4,000,000 time and date stamped readings with the ability to disable channels to maximize memory capacity. Compatible with a wide variety of common thermocouples, the TCTempX16 is capable of measuring temperatures ranging from -270 °C to +1300 °C (probe dependent) with an accuracy of ±0.5 °C.
The state-of-the-art TCTempX16 also features individual cold junction compensation for each channel, providing increased accuracy and response time. There’s no need for a data logging interface, once the monitoring cycle is complete, a Micro USB connects the TCTempX16 to a central PC to quickly offload data directly to the free MadgeTech 4 Software for further reporting and analysis.
Need less channels? MadgeTech also offers the TCTempX12, a 12-channel thermocouple-based temperature data logger.
To learn more about the TCTempX16 and TCTempX12 call MadgeTech at (603) 456-2011 or email [email protected]
