UltraShock

Compact Design

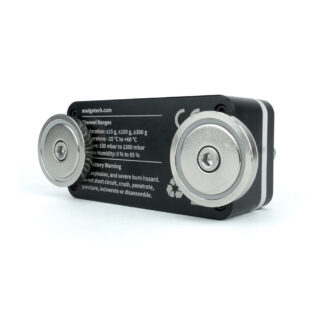

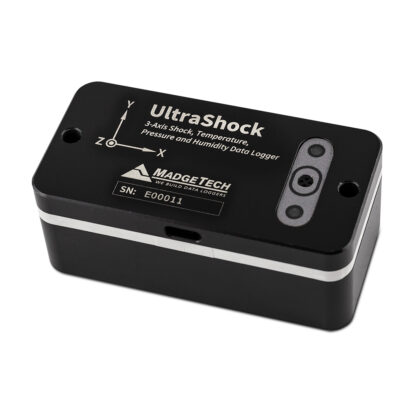

The UltraShock is a tri-axial, stand-alone, compact shock data logger with three built-in acceleration ranges. Includes standard calibration certificate. Read More >

Key Features:

  • Three built-in acceleration ranges: ±15 g, ±100 g and ±300 g
  • Records shock, temperature, humidity and pressure.
  • 3,593,358 readings of non-volatile memory
  • 1kHz sampling rate
  • Rechargeable battery with three month battery life
  • Direct USB interface connection

Availability: 5-7 Business Days

$899.00

Extended Warranty

Description

The new UltraShock contains powerful improvements and an all-in-one functionality, allowing it to replace all current shock models and their capabilities. New refinements also include a smaller, lighter design and LED status indicators.

Additional features include a significantly improved battery life and the use of a USB-C cable, making it easily rechargeable. Each UltraShock purchase contains an AC adapter and USB cable, eliminating the need for an additional interface cable.

The UltraShock is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The UltraShock replaces the UltraShock Legacy and the TSR101.

General

Memory3,593,358 readings
(598,893 per channel, all channels in use)
Reading Rate1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every
2 seconds at intervals shorter than
2 seconds. Otherwise, sampled at the reading rate.
Battery Life90 days typical at 64Hz rate
MaterialAnodized aluminum
Dimensions3.4 in x 1.7 in x 1.3 in
(86 mm x 43 mm x 33 mm)
Operating Environment-20 ºC to +60 ºC,
0 %RH to 95 %RH non-condensing
Required Interface PackageUSB-C cable required (included); 1MBaud
ApprovalsCE compliant
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
IP Rating 64

Temperature

SensorSemiconductor
Range-20 ºC to +60 ºC
Resolution0.1 ºC
Accuracy±0.5 ºC (+5 ºC to +60 ºC)

Humidity

SensorCapacitive Polymer
Range0 %RH to 95 %RH
Resolution0.1 %RH
Calibrated Accuracy±3 %RH (±2 %RH typical at 25 ºC)
Specified Accuracy Range+20 °C to +40 °C; 20 %RH to 80 %RH

Pressure

SensorSemiconductor Strain Gage
Range100 mbar to 1300 mbar
Resolution0.05 mbar
Calibrated Accuracy±1.5 mbar at 25 ºC; at 750 mbar

Shock

Accelerometer TypeMEMS Semiconductor
Acceleration Range (g)±15 g/±100 g/±300 g
Acceleration Resolution (g)0.02 g/0.05 g/0.2 g
Calibrated Accuracy (g)±0.3 g/±2.0 g/±6.0 g
Sampling Rate1000 Hz
Accelerometer Freq. Resp.>1000 Hz (15 g)
>500 Hz (100 g, 300 g)
Reading Rate1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every
2 seconds at intervals shorter than
2 seconds. Otherwise, sampled at the reading rate.

Literature

UltraShock Data Sheet

UltraShock Product User Guide

Ultrashock Dimensional Drawing

Accessories

Part Numbers

UltraShock — 902121-00

The UltraShock replaces the following:

UltraShock-100 – 901809-00
UltraShock-250 – 901817-00
UltraShock-50 – 901825-00
UltraShock-5 – 901823-00

UltraShock-100-EB – 901813-00
UltraShock-250-EB – 901819-00
UltraShock-50-EB – 901829-00
UltraShock-5-EB – 901835-00

TSR101-100 – 901771-00
TSR101-250 – 901779-00
TSR101-50 – 901789-00
TSR101-5 – 901787-00

TSR101-100-EB – 901775-00
TSR101-250-EB – 901783-00
TSR101-50-EB – 901793-00
TSR101-5-EB – 901800-00
