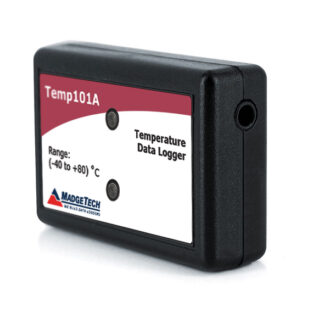

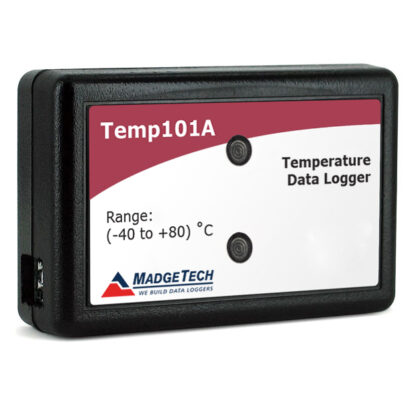

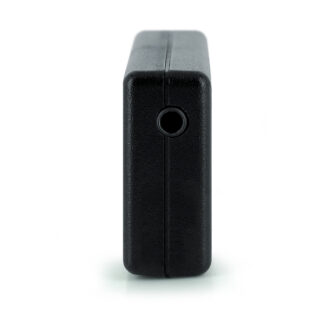

Temp101A

The Temp101A is a compact, general purpose, temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Compact Size
  • 10-Year Battery Life
  • Programmable Alarm Limits
  • .01 °C (.018 °F) Resolution
  • Precision RTD Sensing Element
  • Memory Capacity of 2,000,000+ Readings

Availability: 5-7 Business Days

$79.00

MadgeTech recommends annual calibration.

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The Temp101A is a compact temperature data logger. This device can measure and record temperatures from -40 °C to 80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C.

The Temp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 2,095,104 time and date stamped readings, the Temp101A is perfect for long-term studies.

The Temp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory2,095,104 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
AlarmYes
Baud Rate 115,200
LED Indicators Red & Green
Push-Button Start Yes
Single/Multi-UseMulti-use
Battery Life 10 years typical at a 15 minute reading rate
MaterialPolycarbonate
Dimensions 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE

Temperature

Temperature Sensor Precision RTD Element
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.5 °C (±0.9 °F) from -5 °C to 55 °C (23 °F to +131 °F)
±1.0 °C (±1.8 °F) from -40 °C to 80 °C (-40 °F to +176 °F)

Literature

Temp101A Product User Guide
Temp101A Specification Sheet

Support Videos

Temp101A | Changing the Battery

Accessories

Part Numbers

Temp101A — 901678-00

The Temp101A replaces the following products:
TempRetriever — 901685-00
TransiTempII — 901756-00
